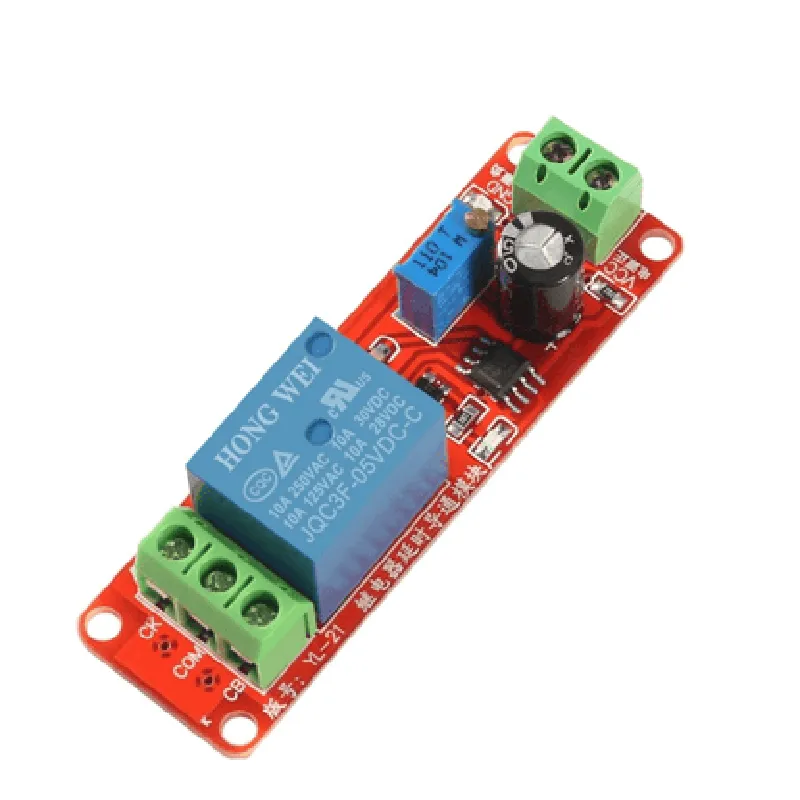

NE555 5V Delay Timer

This product is not available in your location yet

Description: 1. The NE555 5V Delay Timer is a versatile integrated circuit (IC) timer widely used in various applications due to its ease of use and reliable timing functionality. 2. This IC is capable of generating time delays ranging from milliseconds to hours, making it suitable for both short-term and long-term timing requirements in IoT projects. 3. The NE555 5V Delay Timer operates on a 5V power supply, enabling it to work efficiently with most common power sources within the IoT ecosystem. 4. It features a control voltage pin (CV), allowing external manipulation of the timing interval by applying a voltage between 0V and 5V. This property is particularly useful for creating variable delay times based on input signals or sensor data. 5. The NE555 timer offers two output modes: normal mode and astable mode. In normal mode, the timer counts down from an initial value set by external components to trigger an output at the end of the delay period. In astable mode, the timer oscillates betwee

View Technical Documentation

Specification	Details
IC Type	NE555 (Monostable Multivibrator)
Operating Voltage	5V
Operating Current	3mA to 20mA
Frequency Range	DC to 1 MHz
Pulse Width	Adjustable typically 2s to 30min
Duty Cycle	50%
Temperature Range	-55°C to 125°C
Package Type	DIP-8 (Dual In-Line Package)
Pinout	See below for pinout details
Trigger Source	External through Pin 2 or 5
Reset	Active Low through Pin 4
