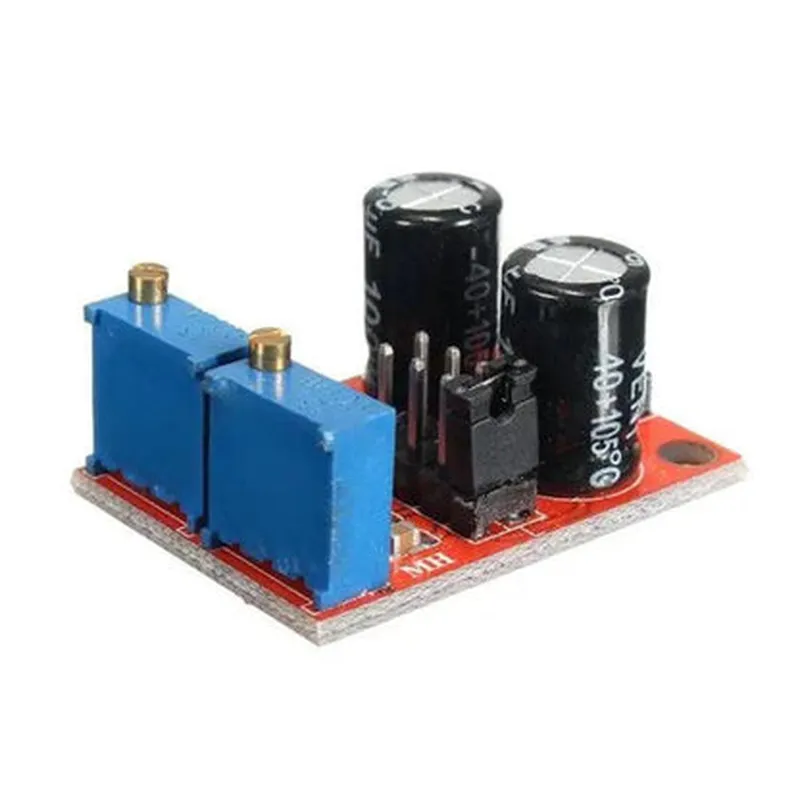

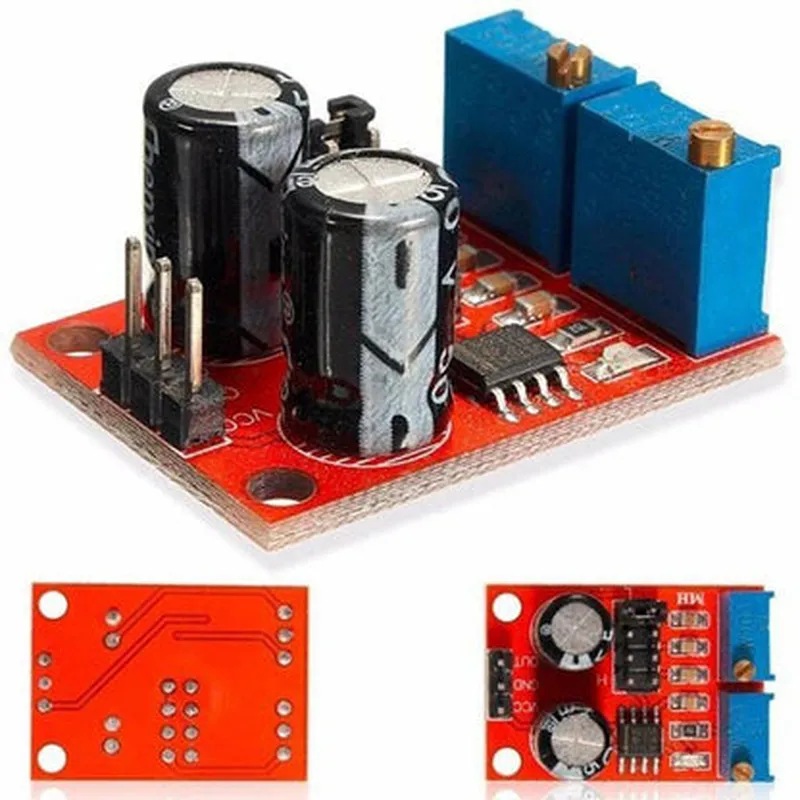

Description: 1. The NE555 Pulse Frequency Duty Cycle Adjustable Module is an electronic timer circuit based on the NE555 IC timer chip, allowing users to generate precise pulsing outputs with adjustable frequency and duty cycle. 2. Key features include: adjustable pulse frequency from 0.1 Hz up to 30 kHz, adjustable duty cycle from 1% to 99%, output waveform selection between square, triangle, and sawtooth, and compatibility with various power supplies (6V-15V). 3. Suitable for various applications such as controlling the speed of motors, generating signals for sensors, or producing pulsing lights in home automation projects, robotics, and hobby electronics. 4. Offers unique benefits over simple on-off switches by providing precise control over the duration of ON and OFF states, making it ideal for applications that require smooth transitions between states. 5. Utilizes a single potentiometer for both frequency and duty cycle adjustment, enabling users to fine-tune their output without needing
| Specification | Details |
|---|---|
| IC Type | NE555 Timer IC |
| Frequency Range | 15 Hz to 390 kHz (adjustable) |
| Duty Cycle | 0.5% to 50% (adjustable) |
| Output Waveform | Square wave |
| Operating Voltage | 3V to 15V |
| Current Consumption | 10mA (typical) |
| Package Type | SOIC-8 (Small Outline Integrated Circuit) |
| Temperature Range | -40°C to 110°C |
| Pin Configuration | Pin 1: VCC Pin 2: GND Pin 3: THRESHOLD Pin 4: TRIGGER Pin 5: OUTPUT Pin 6: CONTROL Pin 7: RESET Pin 8: VCC |
| Adjustment Method | Trimmer potentiometer for frequency and duty cycle adjustment |
