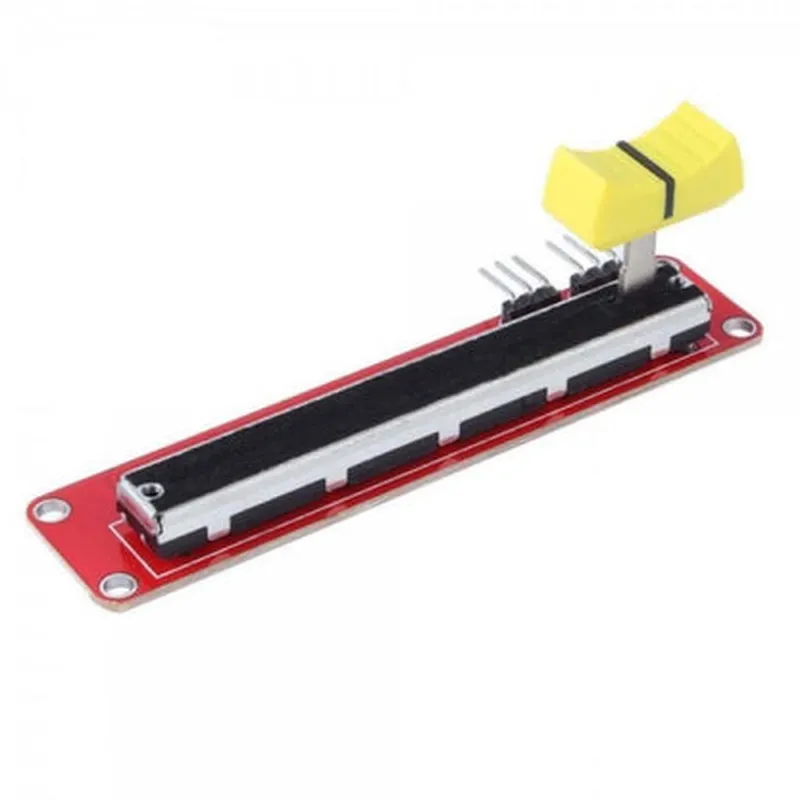

10K Sliding Potentiometer

This product is not available in your location yet

Description: 10K Sliding Potentiometer: 1. A 10K sliding potentiometer is a variable resistor component used to control voltage or current flow in an electrical circuit. Its resistance value can be adjusted by sliding a contact along the length of the resistance element. 2. Features: This type of potentiometer has a 10,000-ohm resistance when measured between its ends and center pin. Sliding contact travel ranges from 2mm to 5mm, providing fine adjustment capabilities. 3. Use cases: Common applications include volume control in audio systems, brightness adjustment in lighting circuits, and speed control in motors or fans. 4. Versatility: With a wide operating voltage range (typically from -25°C to +70°C), 10K sliding potentiometers are suitable for various electronic projects and industrial applications. 5. Accuracy: The tolerance levels of these components can range between ±2% to ±20%, ensuring precise control in various applications. 6. Reliability: Robust construction, using materials li

View Technical Documentation

Specification	Details
Resistance Value	10 Kilohms (±10%)
Tolerance	±5% ±10% (depending on the model)
Power Rating	200 mW
Operating Voltage	±15V to +30V
Temperature Range	-20°C to +70°C
Tracking Error	±2.5% at room temperature
Linearity	±1%
Life Cycle	100000 cycles (min)
Environmental	Moisture and dust resistant
