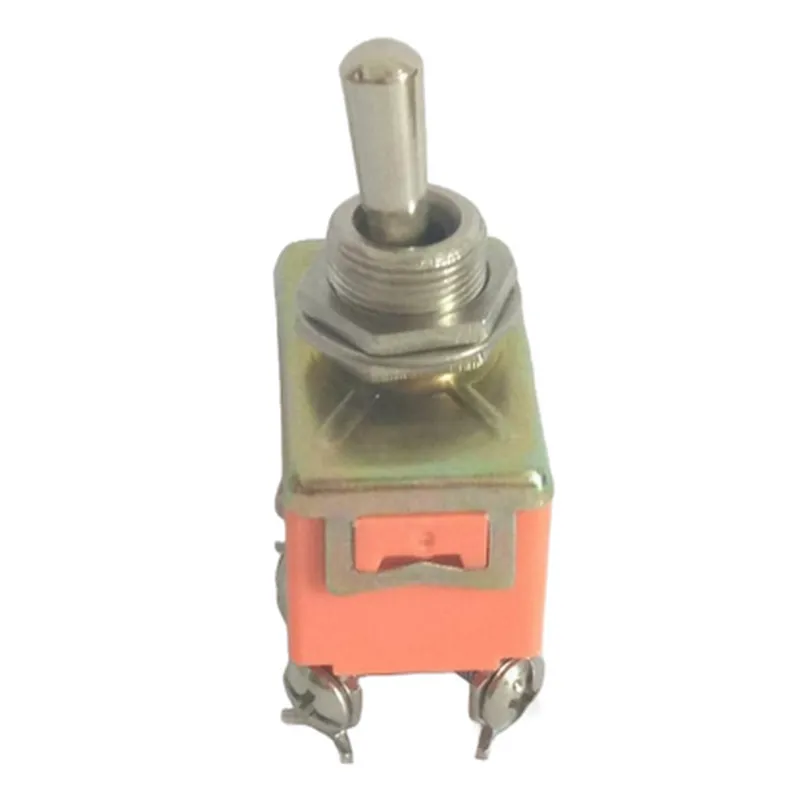

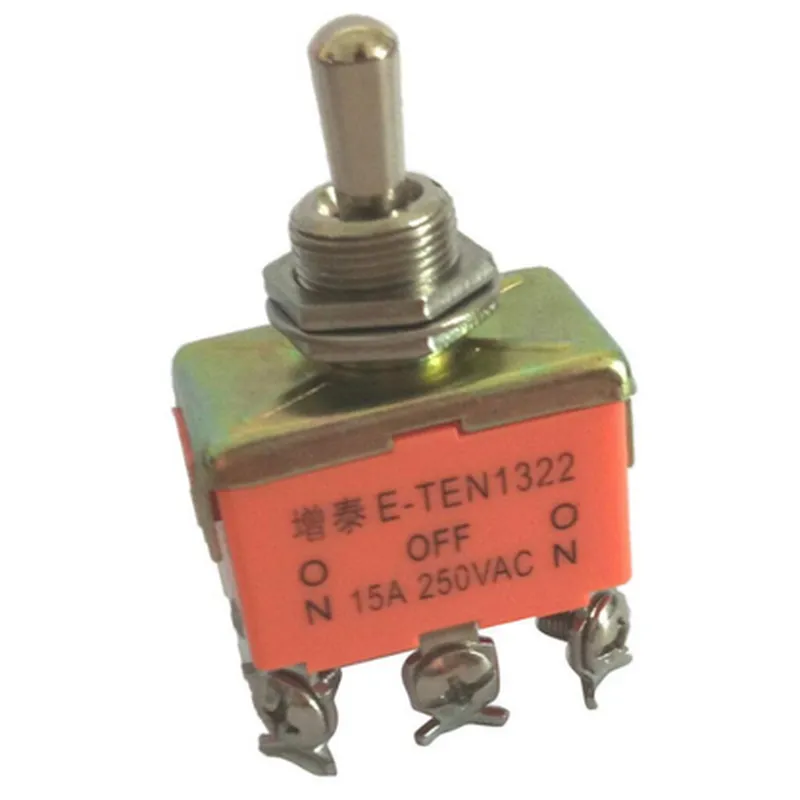

Description: 1. DPDT (Double Pole Double Throw) 6 Pin Toggle Switch is a heavy-duty electrical component designed for operating two separate circuits with three positions: ON-OFF-ON. 2. Rating: This toggle switch can handle up to 15 Amperes (A) of current and 250 Volts (V) of voltage, making it suitable for various industrial and high power applications. 3. Functionality: The first pair of poles in this switch controls the first circuit while the second pair manages the second circuit independently. The center position disconnects both circuits. 4. Versatility: This toggle switch can be used in numerous applications, including automation systems, lighting control, power tools, HVAC systems, and more. 5. Safety Feature: The ON-OFF-ON mechanism ensures that the switched circuit is disconnected from the power source when not in use, reducing potential risks of electrical accidents. 6. Durability: Constructed using robust materials like diecast metal or phenolic resin, this switch guarantees long
| Specification | Details |
|---|---|
| Switch Type | Double Pole Double Throw (DPDT) |
| Number of Throws | 3 (On-Off-On) |
| Pole Count | 2 |
| Pin Configuration | 6 Pin (2 x Common 2 x NO 2 x NC) |
| Voltage Rating | 250V AC |
| Current Rating | 15A |
| Operating Life | 10000 Cycles (ON/OFF) |
| Contact Material | Silver Plated Brass |
| Mounting Type | Through-Hole |
| Terminal Type | Solder Lugs |
| Dimensions | TBA (Typical dimensions for DPDT Switches) |
| Temperature Range | -20°C to 70°C |
