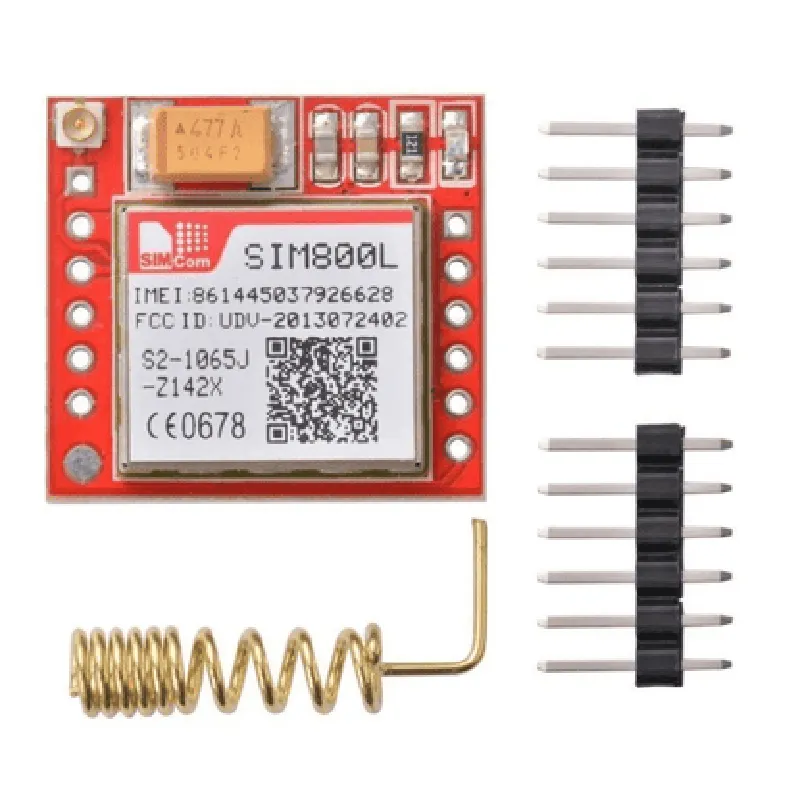

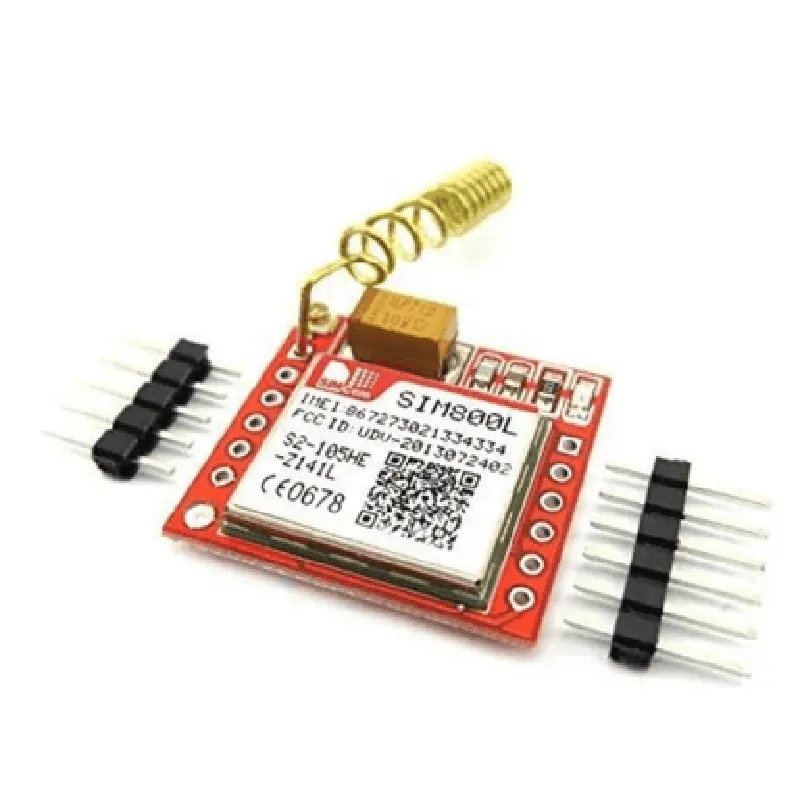

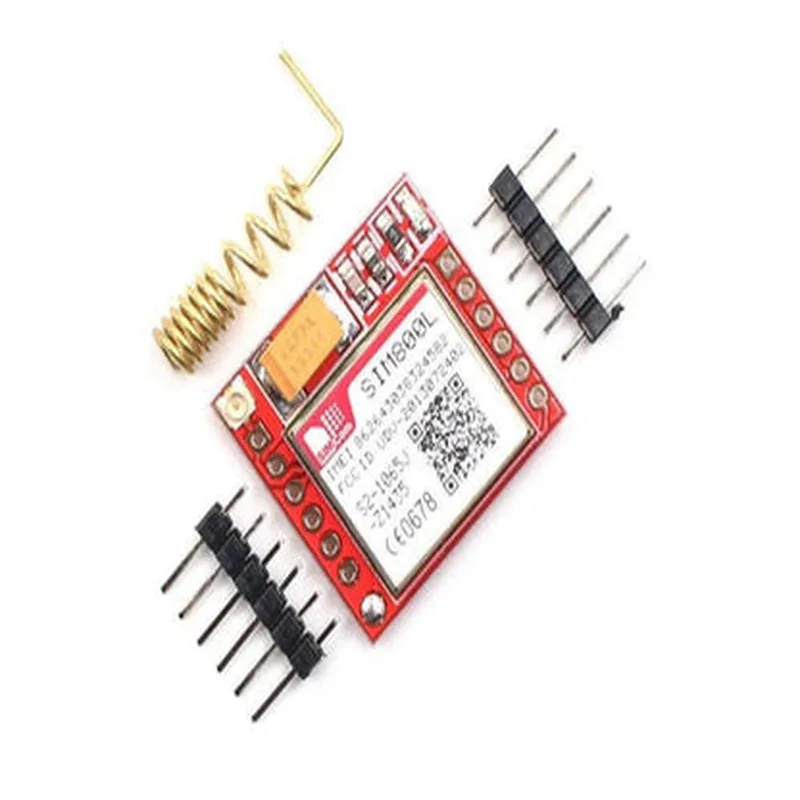

Description: 1. Overview: Sim 800L is a versatile and compact GSM-GPRS module designed for IoT projects and M2M applications, enabling wireless communication using the Global System for Mobile Communications (GSM) and General Packet Radio Service (GPRS). 2. Connectivity: It supports both voice and data communication over GSM networks with a wide frequency range from 850 MHz to 1900 MHz. The module can be configured to work in various bands as per the user's location or network requirements. 3. Powerful Processor: Equipped with an advanced microcontroller that supports low power consumption, making it suitable for battery-powered applications and long-term usage without frequent recharges. 4. Communication Protocols: The Sim 800L GSM module supports standard communication protocols such as SMS, AT commands, and TCP/IP for data exchange between devices and servers, making it compatible with a wide range of applications. 5. Interfaces: This module features multiple interfaces including UART, USB,
| Specification | Details |
|---|---|
| Modem Type | Quad-Band GSM/GPRS Module |
| Frequency Bands | 850/900/1800/1900 MHz (Quad-band) |
| Data Transfer Rate | Up to 85.6 kbps (GPRS Class 12) |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +90°C |
| Humidity Range | 20% to 80% relative humidity |
| Power Consumption | Typical: 1.5A (peak) 0.3A (idle) |
| Operating System | Supports AT Commands Linux and Windows |
| Interface | USB UART (TTL) GPIO |
| Dimension | 32 x 24 x 2 mm |
| Weight | 10 grams |
| LED Indication | Power Network and Signal strength |
| Power Supply | 3.4 to 4.5V DC (Vin) |
| Sleep Mode | Supports power-saving sleep mode |
1. Overview: The SIM800 GSM M...

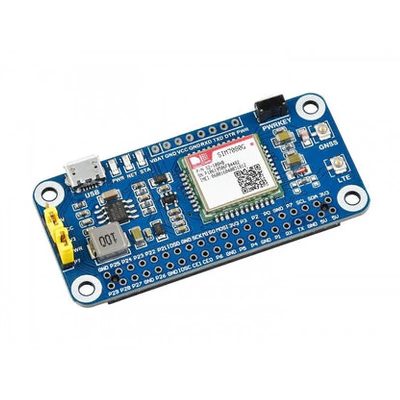

1. NB-IoT (Narrowband Interne...

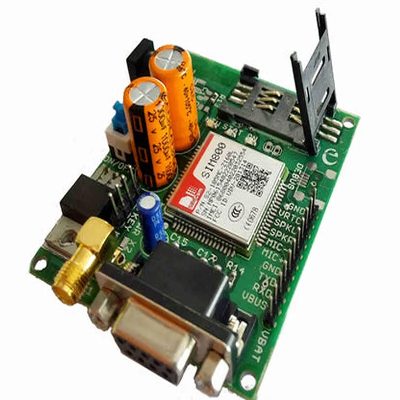

1. Overview: The SIM800 GSM M...

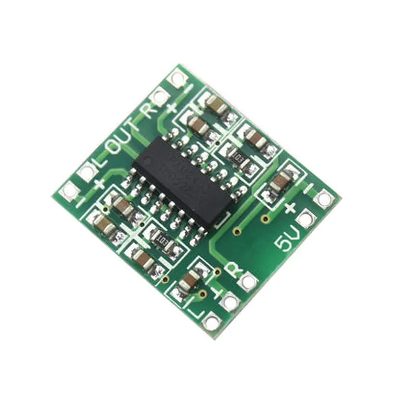

1. The PAM8403 is a high-perf...

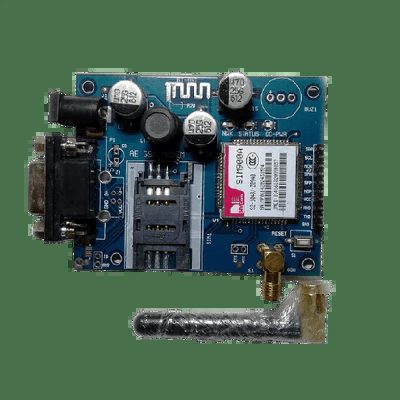

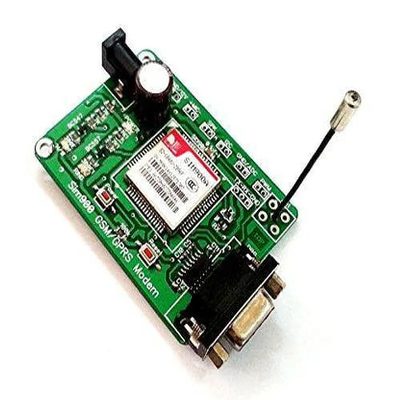

1. Overview: The SIM900A is a...
