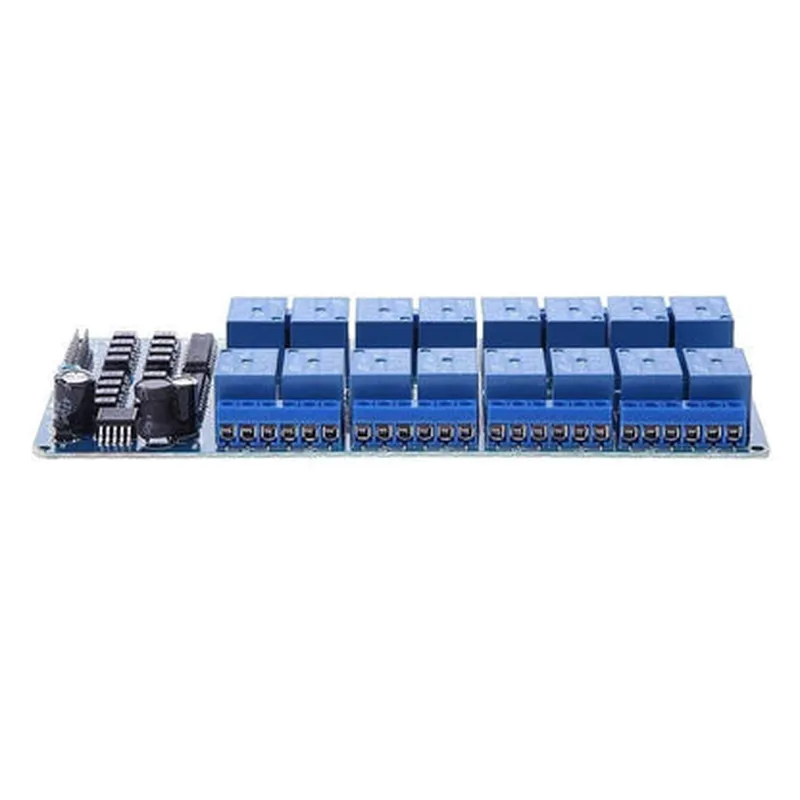

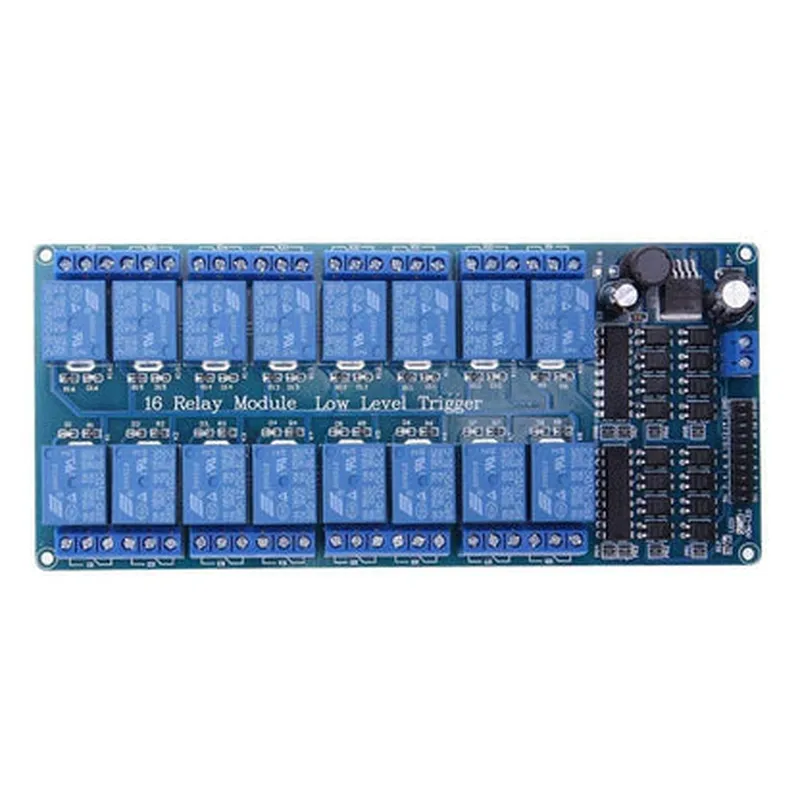

16 Channel 12V Relay Module Board

This product is not available in your location yet

Description: 1. Overview: This 16-channel 12V relay module board is designed for managing and controlling heavy electrical loads through the internet or local automation systems. 2. Channel Count: The board features sixteen independent 12V relays, each capable of handling up to 10A load and 30A inrush current. 3. Compatibility: Suitable for various IoT applications such as home automation, industrial control systems, robotics, security systems, and more. It can be used with popular platforms like Arduino, Raspberry Pi, and other microcontrollers. 4. Remote Control: The relays can be remotely controlled via digital input signals or optocoupler inputs, providing safety and isolation from high-voltage loads. 5. Versatile Application: Can operate in several modes including Normally Open (NO), Normally Closed (NC), and Changeover (Form C) configurations, making it versatile for a wide range of applications. 6. Efficient Design: The board incorporates an efficient circuit design with diodes to prev

View Technical Documentation

Specification	Details
Number of Channels	16
Voltage Input	12V DC
Current Rating	10A (per channel)
Relay Type	SPDT (Single Pole Double Throw)
Contact Resistance	100mΩ (max)
Operating Temperature	-40°C to 85°C
Dimensions	120mm x 80mm x 25mm
Weight	approximately 200g
Connectors	Terminal block and screw terminals
Operating Frequency	up to 10 kHz
