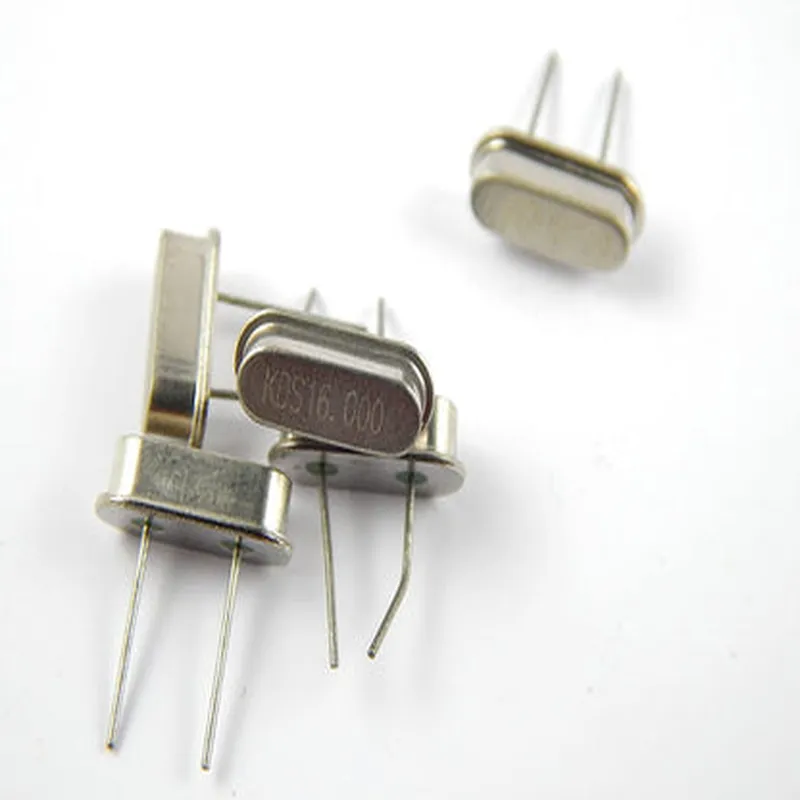

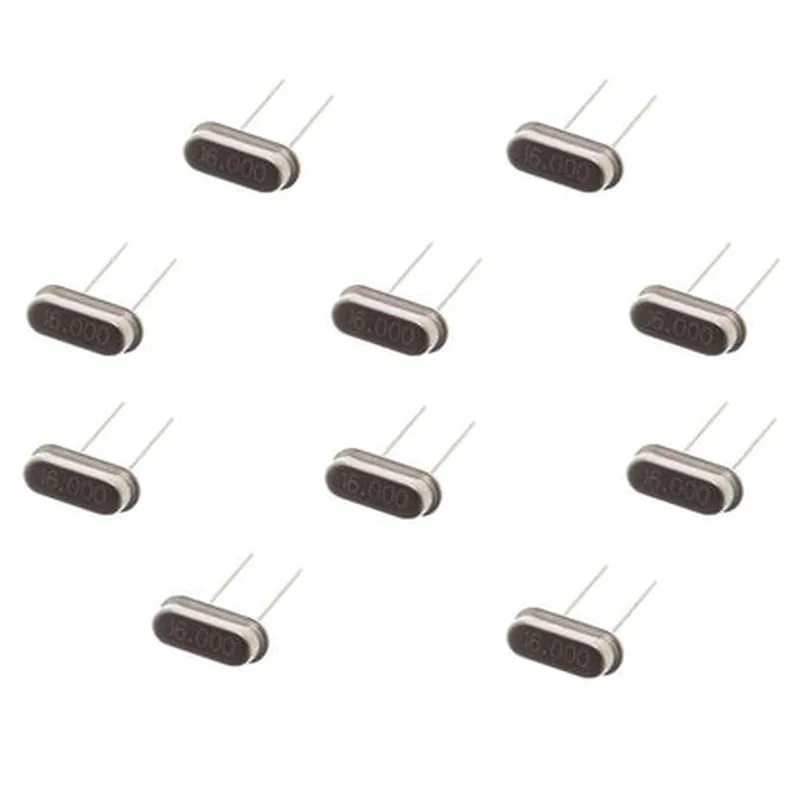

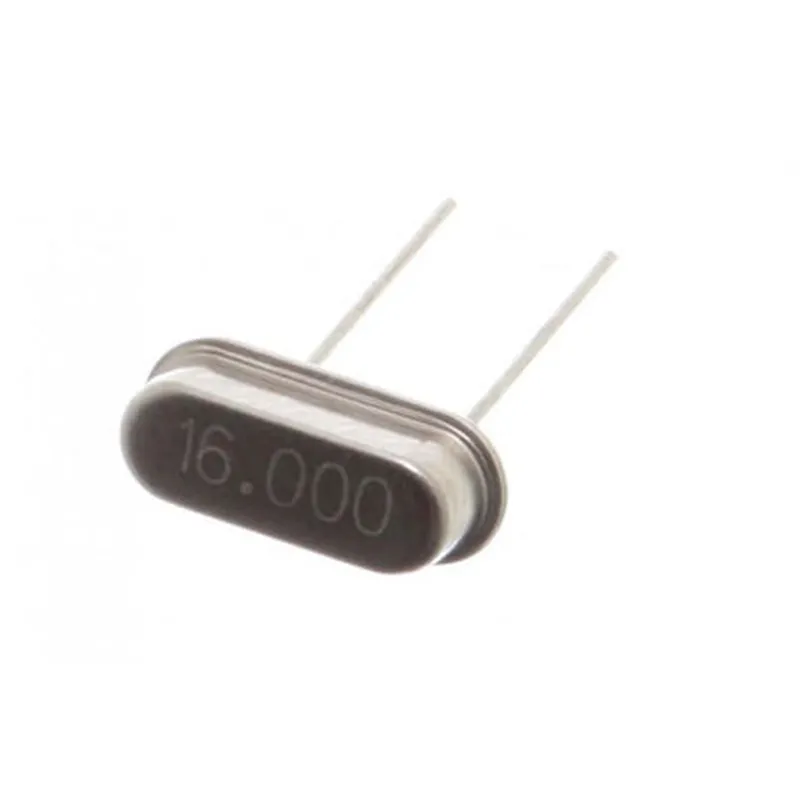

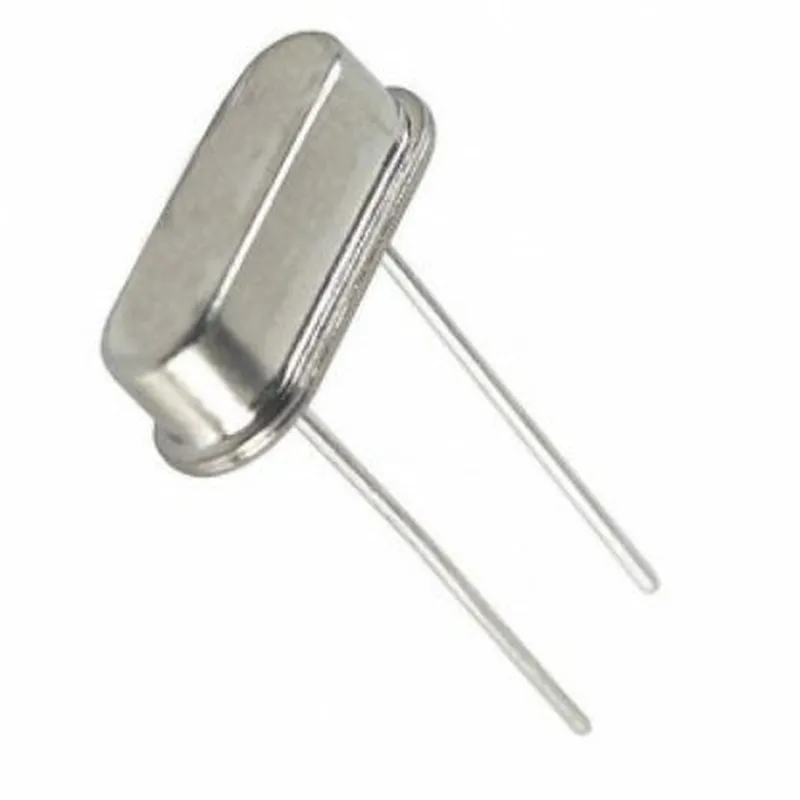

16MHz Crystal Oscillator - (Pack of 10)

Stufin

16MHz Crystal Oscillator - (Pack of 10)

This product is not available in your location yet

Description: 1. Frequency: This 16MHz Crystal Oscillator operates at a stable frequency of 16 megabits per second, suitable for various IoT projects that require precise timing and synchronization between components. 2. Stability: The oscillator offers excellent stability with a temperature coefficient of -25ppm/°C to +75ppm/°C, ensuring consistent performance in varying environmental conditions. 3. Size and Power Consumption: With dimensions of 3.2mm x 3.2mm (TO-49 package), it is compact enough for most IoT applications while consuming minimal power, typically less than 10mA. 4. Frequency Tolerance and Drift: It features a frequency tolerance of ±10ppm and an aging rate of +/-25ppm per year, providing reliable operation over extended periods. 5. Sensitivity to Temperature: The crystal oscillator maintains its stability even under extreme temperatures, ensuring accurate timing from -40°C to +85°C. 6. High Q Factor: It boasts a high Q factor (>3500) which minimizes the effects of external noi

View Technical Documentation

Specification	Details
Frequency	16 MHz (nominal)
Crystal Type	AT-cut fundamental mode
Load Capacitance	22 pF to 33 pF (recommended range)
Operating Voltage	±15% of nominal frequency
Temperature Range	-20°C to +70°C (operating)
Supply Current	Typically < 1 μA
Package Type	Standard 6-pin ceramic resonator package
RoHS Compliance	Compliant with RoHS Directive
Packaging Quantity	Pack of 10
