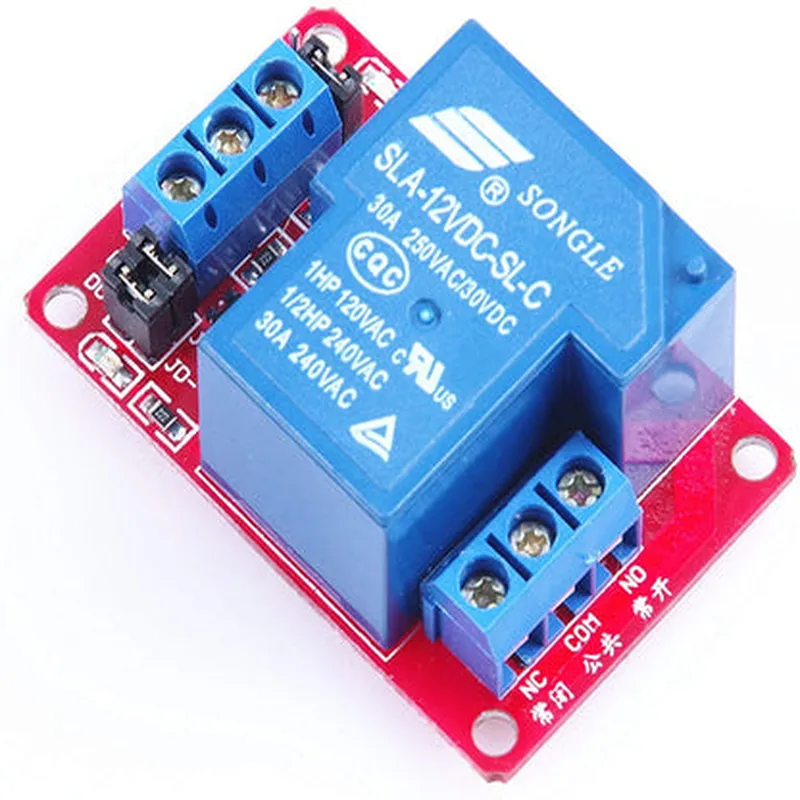

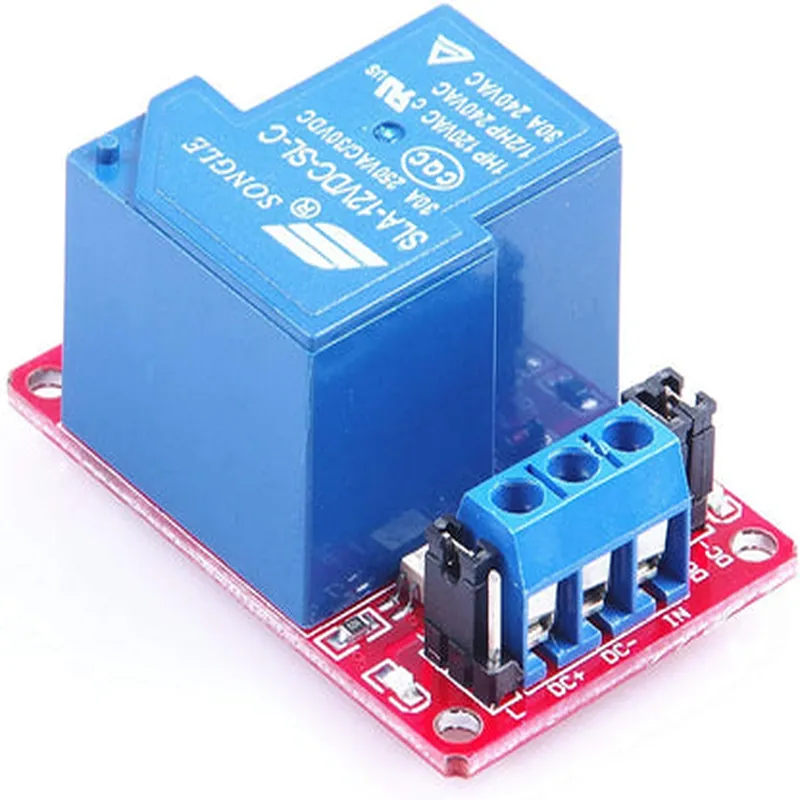

Description: 1. Overview: This Single Channel 12V Relay Module is a versatile component designed for managing electrical loads up to 30 Amperes (A) through a low voltage control signal. It's an essential IoT building block for automating systems and controlling appliances. 2. Electrical Specifications: - Operating Voltage: 12V DC - Maximum Current: 30 Ampere - Coil Voltage: 12V DC (for normally open configuration) - Impedance: 50 ohms 3. Functionality: This module functions as a switch to control high power loads by using a low power signal. When the coil is energized, the relay closes, connecting the load to the power source, and when de-energized, the relay opens, disconnecting the load. 4. Configurations: Available in both Normally Open (NO) and Normally Closed (NC) configurations. In NO configuration, the contacts separate when coil is energized, while in NC configuration, they connect when coil is energized. 5. Applications: Used in various IoT projects for controlling heavy-duty ele
| Specification | Details |
|---|---|
| Voltage | 12V DC |
| Current Rating | 30A (Maximum) |
| Power Rating | 360W (Maximum) |
| Switching Time | <10ms (Typical) |
| Relay Type | Single Pole Double Throw (SPDT) |
| Operating Temperature | -20°C to 85°C |
| Dimensions | Approximately 38mm x 28mm x 13mm |
| Mounting Options | PCB Mount or Screw Mount |
| Connectors | Terminal Block (2-Pin) |
| Standby Current | <10mA (Typical) |
