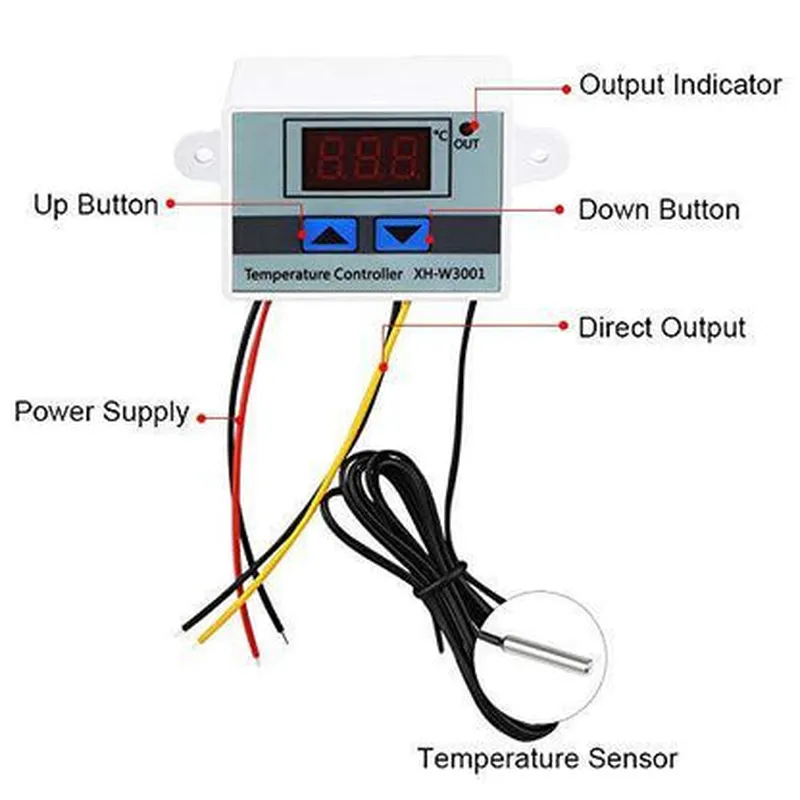

Description: 1. XH-W3001 is a Digital Display LED Temperature Controller with a DC 12V power supply and a maximum capacity of 120W. It comes with a thermostat control switch probe for accurate temperature regulation. 2. Design: This controller features an easy-to-read, large digital display screen that shows the temperature in both Celsius (°C) and Fahrenheit (°F). It also includes adjustable setpoints, an alarm function for high and low limits, and a user-friendly interface with simple buttons. 3. Temperature Control: The XH-W3001 employs a PID temperature control algorithm to maintain precise temperature settings in various applications such as refrigeration, heating systems, or greenhouses. It allows users to set target temperatures and adjust them on the fly for optimal performance. 4. Probe Connection: The controller comes with a thermostat control switch probe that connects directly to the device using a 3.5mm temperature sensor jack. Users can also use an external thermocouple or RTD sen
| Specification | Details |
|---|---|
| Power Input | DC 12V 120W |
| Temperature Range | -30°C to +99°C (displayed in °C or °F) |
| Accuracy | ±0.1°C |
| Display | 4-digit LED display |
| Operating Modes | Setpoint Auto and Manual |
| Control Method | Thermostat control with switch probe |
| Switch Probe Type | K-type thermocouple (optional) |
| Dimensions (L x W x H) | 13.5 x 8.5 x 3 cm |
| Weight | approximately 220g |
| Operating Humidity | 20% to 80% relative humidity |
