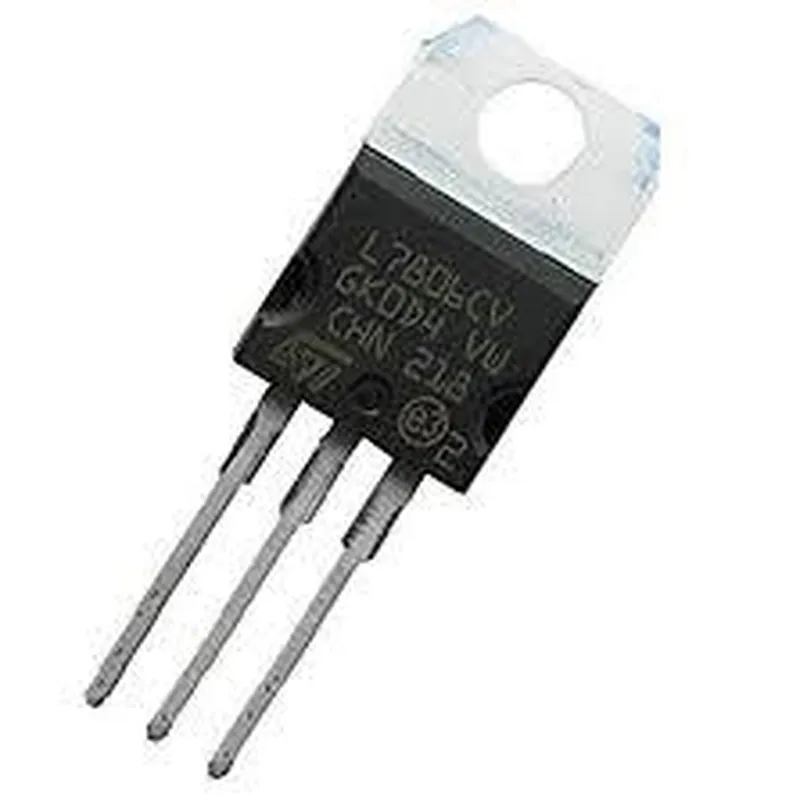

Description: 1. Voltage Regulation: The 7806 Voltage Regulator IC is a three-terminal linear voltage regulator that can provide a stable output voltage of 6 Volts, regardless of input voltage fluctuations. 2. Input Voltage Range: This IC accepts an input voltage ranging from 7 to 35 Volts and converts it into a constant 6 Volts output, making it suitable for various power supply systems. 3. Stability and Accuracy: With an accuracy of ±1% and stability of ±2%, the 7806 ensures reliable voltage regulation and maintains a consistent output. 4. Protective Features: It includes internal protection circuits that safeguard against short-circuits, overloading, and reverse input polarity. 5. Low Quiescent Current: The IC features a low quiescent current of approximately 10mA at the output voltage, minimizing power loss in standby mode. 6. Easy to Use: With minimal external components required for regulation, the 7806 is an ideal choice for simple designs and prototyping projects. 7. Small Form Factor
| Specification | Details |
|---|---|
| Specification | Detail |
| Input Voltage | 7-35V (Minimum) 40V (Maximum) |
| Output Voltage | 5V ±2% (Typical 4.97V to 5.03V) |
| Maximum Load | 1A (Continuous) 1.5A (Peak) |
| Dropout Voltage | 0.3V (Typical at 1A load) |
| Quiescent Current | 8mA (Typical at 25°C) |
| Thermal Resistance | 65°C/W (Typical) |
| Operating Temperature | -55°C to 125°C (Maximum Junction Temperature: 150°C) |
| Storage Temperature | -65°C to 150°C |
| Package Style | TO-220 (DPAK D2PAK SOIC) |
