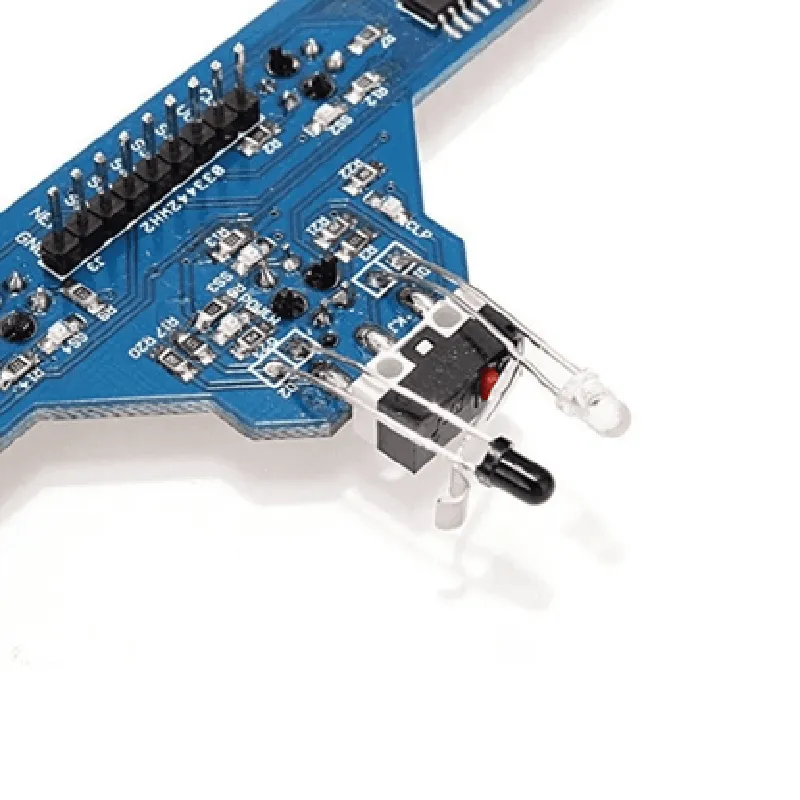

5 Channel IR Infrared CTRT5000 Line Detection Module

Stufin

5 Channel IR Infrared CTRT5000 Line Detection Module

This product is not available in your location yet

Description: 1. Five Channel IR Sensors: The CTRT5000 is a five-channel infrared line detection module that enables the identification of black or white lines on various surfaces, making it suitable for use in autonomous vehicles, robots, drones, and automated guided vehicles (AGVs). 2. Wide Detection Range: This module has an adjustable detection range of up to 35mm (1.4 inches), allowing users to customize the sensitivity of each channel to suit their application requirements. 3. Versatile Input and Output Signals: The CTRT5000 supports both digital (TTL level) and analog (0-5V) input signals, providing flexibility for various control systems and microcontrollers. Similarly, it has adjustable output signals (open collector or active high/low). 4. Real-time Detection: The module offers real-time line detection capability, ensuring timely response to changes in the environment, which is essential for applications like autonomous driving and obstacle avoidance systems. 5. Interrupt Output: Each

View Technical Documentation

Specification	Details
Detection Type	IR (Infrared)
Number of Channels	5
Operating Voltage	3.3V to 5V
Current Consumption	≤10mA
IR Sensitivity	High sensitivity
Line Detection Range	Up to 40mm
Frequency Response	≥1kHz
Supply Pinout	VCC GND
Output Signal	Active high TTL compatible
