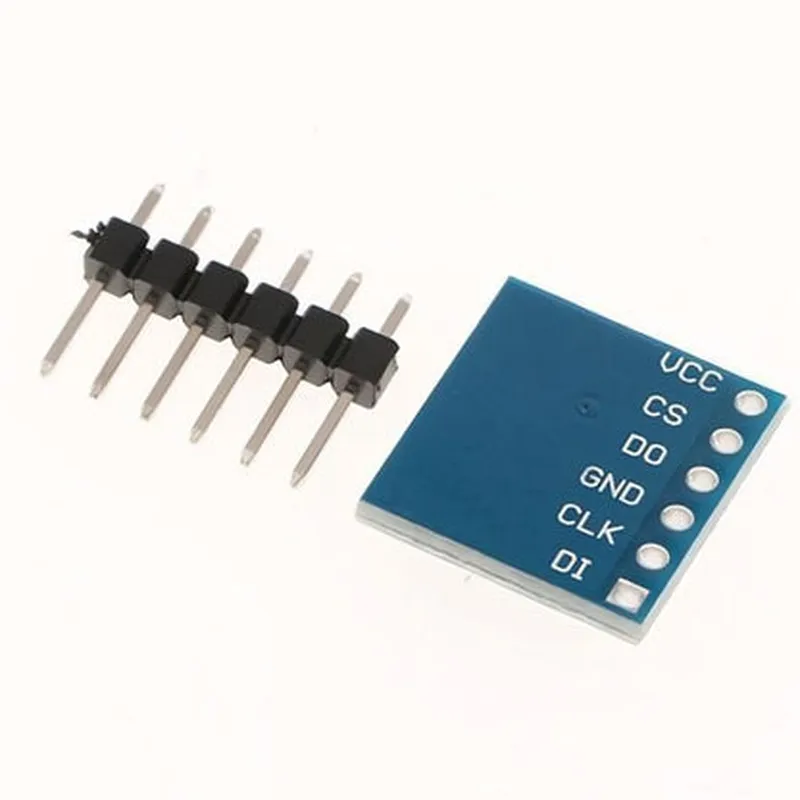

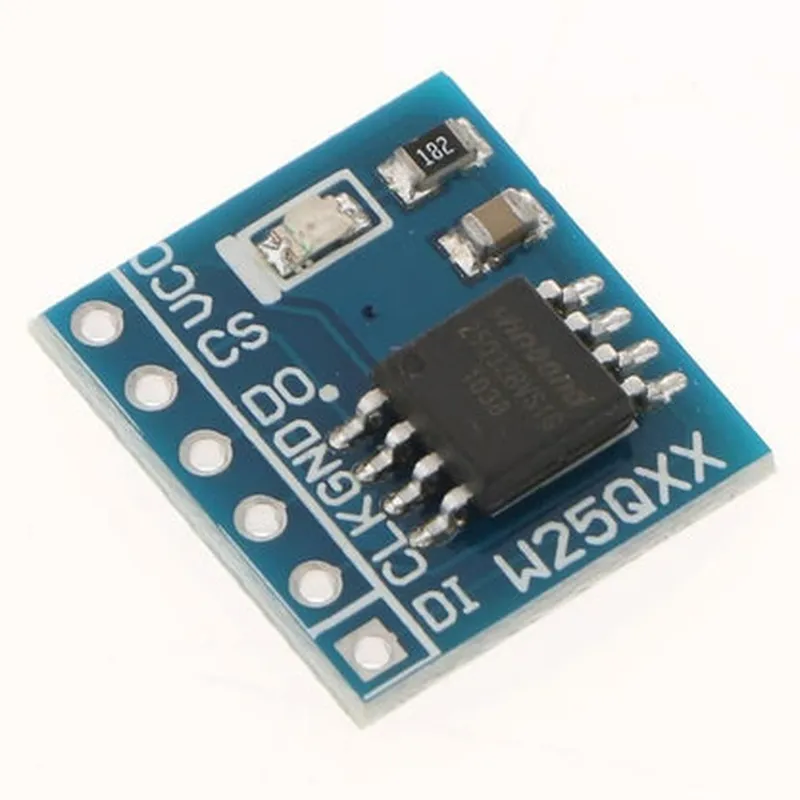

W25Q64 NorFlash Storage Module 64Mbit

This product is not available in your location yet

Description: 1. W25Q64 is a 64Mbit (8M x 8) single-chip Quad Serial Flash Memory solution from Winbond, ideal for IoT applications requiring large non-volatile memory storage. 2. Features: Offers quad serial interface, enabling fast read and write operations; supports both I²C and SPI interfaces; has built-in read/write protection functions; features an endurance of 10,000 write cycles for each memory block. 3. Size and Package: Comes in a compact 8mm x 6mm x 1mm WLCSP (Wafer Level Chip Scale Package), making it suitable for space-constrained IoT devices. 4. Operating Temperature: Supports a wide operating temperature range of -40°C to +85°C, ensuring reliability in various environments. 5. Data Retention: Maintains data even when power is off with ultra-low power consumption, providing stable long-term storage for IoT projects. 6. Security: Offers on-chip security features like password protection, locking, and write protect functions to help secure sensitive data. 7. High Density: With its

View Technical Documentation

Specification	Details
Manufacturer	Winbond
Device Type	Serial Flash Memory (NorFlash)
Capacity	64 Mbit (8 Mbyte)
Organization Mode	Single Dual Quad I/O
Operating Voltage	3.0V to 3.6V
Operating Temperature	-40°C to +85°C
Package Type	8-pin SOP
Interface	SPI (Serial Peripheral Interface)
Read/Write Speed	Up to 104 MHz
Endurance	100000 cycles per byte
Erase Time	1 second ( typical )
Programming Voltage	12V - VCC
