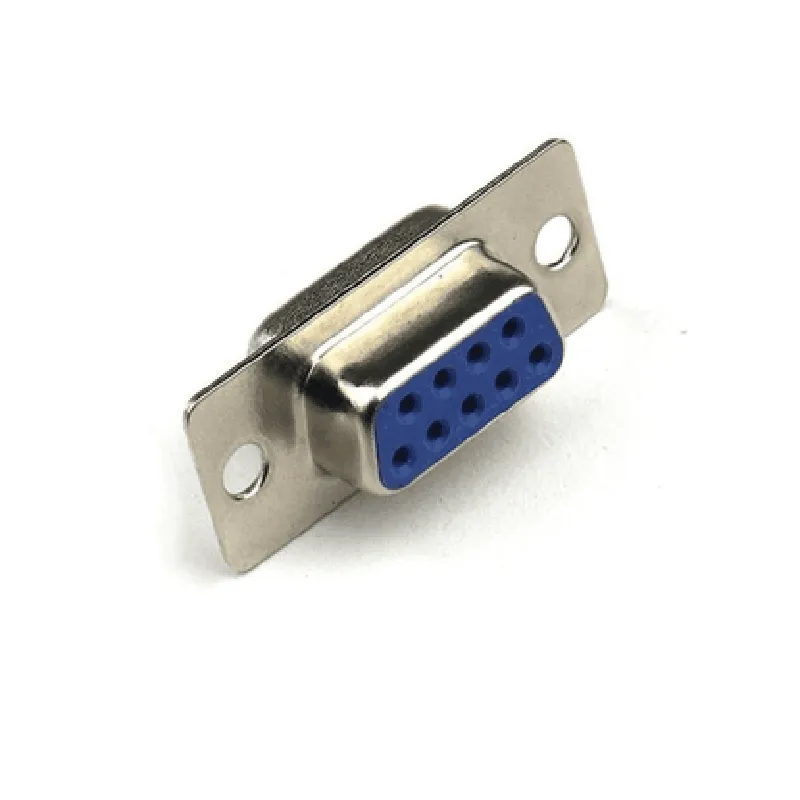

Description: 1. A DB9 Female Straight Connector is an electrical connector used for data communication between devices. It's a female connector, meaning it has receptacles for male pins or plugs to be inserted. 2. Physical Characteristics: This connector consists of nine pins arranged in two rows of five and four. Each pin is labeled for easy identification (P1 through P9). Its size is approximately 3.5mm x 6.0mm. 3. Applications: DB9 Female Straight Connectors are commonly used in RS-232 serial communication applications, such as connecting a computer to peripherals like printers, modems, or older model keyboards and mice. They're also found in automotive systems, industrial control panels, and laboratory equipment. 4. Pinout: The connector follows the standard RS-232 pinout: P1 is Ground (GND), P2 and P3 are Transmitted Data (TD), P4 and P5 are Received Data (RD), P6 and P8 are Signal Ground (SG), P7 is Request to Send (RTS), and P9 is Clear to Send (CTS). 5. Installation: To install a DB9 F
| Specification | Details |
|---|---|
| Type | DE-9 (DB9) female straight connector |
| Pin Count | 9-pin |
| Gender | Female |
| Orientation | Straight |
| Mounting Style | Through-hole |
| Material | Brass or nickel-plated brass |
| Temperature Range | -40°C to +85°C |
| Operating Voltage | Up to 30V depending on application |
| Current Rating | Up to 500mA depending on application |
| Insulation Rating | 600V AC or DC 1kV depending on usage |
