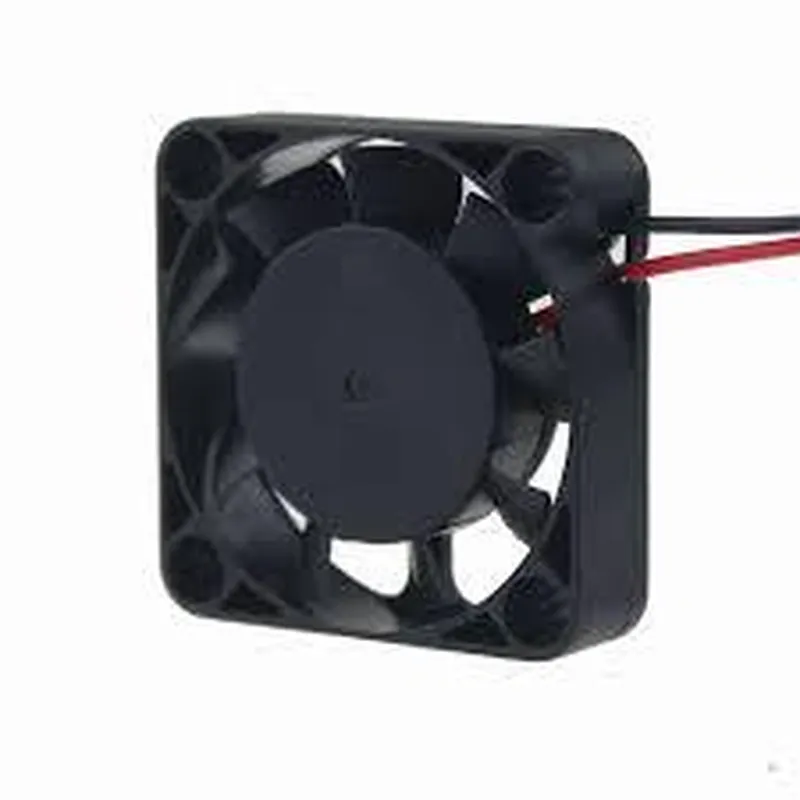

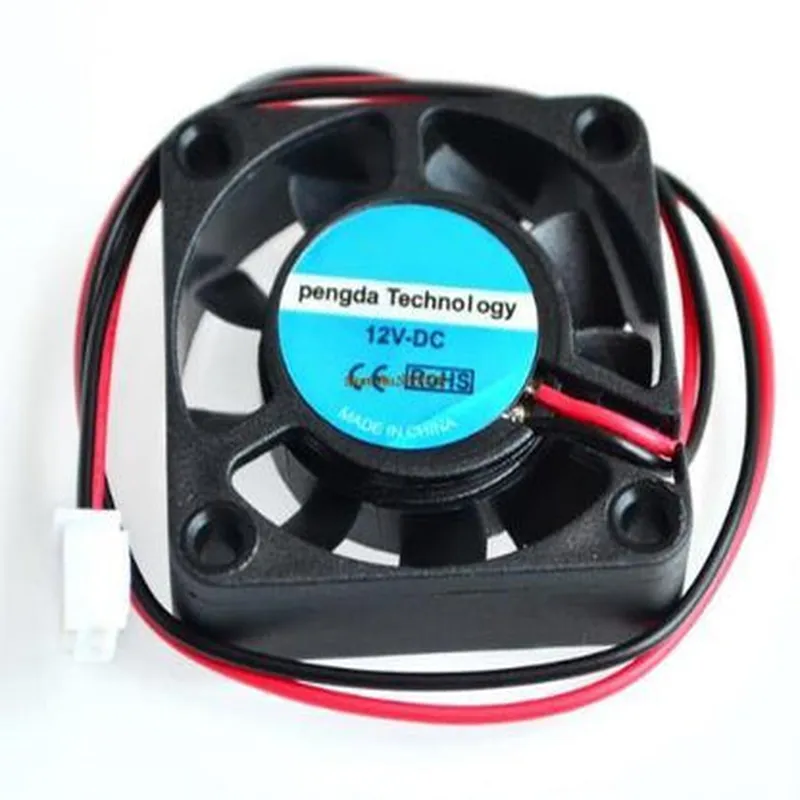

12V Brushless DC Fan - 4010

Buy Now on Stufin

Component Name

Description

The 12V Brushless DC Fan - 4010 is a high-quality, compact, and energy-efficient fan designed for various applications in the Internet of Things (IoT) and electronics industries. This fan is ideal for use in cooling systems, ventilation, and air circulation in devices such as routers, switches, servers, and other electronic enclosures.

Functionality

The primary function of the 12V Brushless DC Fan - 4010 is to provide a reliable and quiet cooling solution for electronic devices. The fan operates on a 12V DC power supply and uses a brushless motor, which ensures a longer lifespan, reduced noise, and increased efficiency compared to traditional brushed motor fans.

Key Features

Brushless Motor: The fan features a high-quality, durable brushless motor that provides a long lifespan, high reliability, and low vibration.
Low Noise Operation: The fan is designed to operate at a low noise level, making it suitable for use in noise-sensitive applications.
High Airflow: The 4010 fan is capable of delivering a high airflow of up to 38.5 CFM (cubic feet per minute), making it effective for cooling electronic devices.
Low Power Consumption: The fan has a low power consumption of 4.8W, making it an energy-efficient solution for IoT devices.
Compact Design: The fan has a compact design with a diameter of 40mm and a thickness of 10mm, making it suitable for use in small, confined spaces.
Operating Voltage: The fan operates on a 12V DC power supply, making it compatible with a wide range of IoT devices and systems.
Operating Temperature: The fan can operate in a wide temperature range of -20C to 70C, making it suitable for use in various environmental conditions.
Connector Type: The fan features a 2-pin JST connector, making it easy to integrate into IoT devices and systems.
Cable Length: The fan has a cable length of 300mm, providing flexibility in installation and placement.
MTBF: The fan has a mean time between failures (MTBF) of 50,000 hours, ensuring reliable operation over an extended period.

Specifications

| Parameter | Value |

| --- | --- |

| Operating Voltage | 12V DC |

| Current | 0.4A |

| Power Consumption | 4.8W |

| Airflow | 38.5 CFM |

| Noise Level | 25 dBA |

| Speed | 5500 RPM |

| Bearing Type | Sleeve Bearing |

| Motor Type | Brushless |

| Diameter | 40mm |

| Thickness | 10mm |

| Cable Length | 300mm |

| Connector Type | 2-pin JST |

| Operating Temperature | -20C to 70C |

| MTBF | 50,000 hours |

Applications

The 12V Brushless DC Fan - 4010 is suitable for use in various IoT applications, including

Cooling systems for routers, switches, and servers

Ventilation and air circulation in electronic enclosures

Industrial automation and control systems

Medical devices and equipment

Aerospace and defense applications

Automotive systems and accessories

Conclusion

The 12V Brushless DC Fan - 4010 is a reliable, efficient, and compact cooling solution for IoT devices and systems. Its high airflow, low noise operation, and low power consumption make it an ideal choice for a wide range of applications.

Pin Configuration

12V Brushless DC Fan - 4010 Pinout Guide
The 12V Brushless DC Fan - 4010 is a high-performance fan designed for various IoT applications, including cooling systems, ventilation systems, and more. This guide provides a comprehensive explanation of the fan's pins, their functions, and connection instructions.
Pinout Diagram:
The 12V Brushless DC Fan - 4010 has a standard 3-pin JST connector. The pinout diagram is as follows:
| Pin Number | Pin Function | Description |
| --- | --- | --- |
| 1 | VCC | Positive Power Supply (12V) |
| 2 | GND | Ground (Negative Power Supply) |
| 3 | PWM | Pulse-Width Modulation (Speed Control) |
Pin-by-Pin Explanation and Connection Guide:
1. VCC (Pin 1):
Function: Positive Power Supply (12V)
Description: This pin connects to the positive terminal of the power source, providing 12V DC power to the fan.
Connection: Connect to a 12V DC power source (e.g., a battery or a power supply module) using a suitable wire or connector.
2. GND (Pin 2):
Function: Ground (Negative Power Supply)
Description: This pin connects to the negative terminal of the power source, providing a ground reference for the fan.
Connection: Connect to the negative terminal of the 12V DC power source (e.g., a battery or a power supply module) using a suitable wire or connector.
3. PWM (Pin 3):
Function: Pulse-Width Modulation (Speed Control)
Description: This pin controls the fan speed using pulse-width modulation (PWM) signals. A PWM signal with a higher duty cycle will increase the fan speed, while a lower duty cycle will decrease the fan speed.
Connection:
+ To control the fan speed using a microcontroller or a dedicated PWM controller, connect the PWM pin to the corresponding PWM output pin on the controller.
+ If you want to run the fan at its maximum speed, you can connect the PWM pin to the VCC pin (Pin 1).
Important Notes:
When connecting the fan to a power source, ensure the voltage is within the recommended range of 12V DC.
Use suitable wire or connectors to connect the fan to the power source and control circuits to prevent damage or electrical shock.
To avoid damage, do not reverse the polarity of the power connections (VCC and GND).
When controlling the fan speed using PWM, ensure the PWM signal frequency is within the recommended range for the specific fan model.
By following this pinout guide and connection instructions, you can successfully integrate the 12V Brushless DC Fan - 4010 into your IoT project.

Code Examples

Component Documentation: 12V Brushless DC Fan - 4010

Overview

The 12V Brushless DC Fan - 4010 is a high-performance, compact fan designed for Industrial Internet of Things (IIoT) applications, robotics, and other devices requiring reliable and efficient cooling. This fan features a brushless motor, offering increased lifespan and reduced noise compared to traditional brushed motors.

Technical Specifications

Voltage: 12V DC
 Current: 0.35A (max)
 Speed: 3500 RPM (max)
 Airflow: 23.5 CFM (max)
 Noise Level: 35 dBA (max)
 Operating Temperature: -20C to 60C
 Dimensions: 40mm x 40mm x 10mm

Interfaces and Connections

The fan has a 3-pin connector, providing a simple and convenient way to connect to a microcontroller or other devices:

Pin 1: VCC (12V DC)
 Pin 2: GND
 Pin 3: PWM (optional, for speed control)

Code Examples

### Example 1: Basic Fan Control with Arduino

This example demonstrates how to connect and control the fan using an Arduino board.

```c++
const int fanPin = 9;  // PWM pin for speed control

void setup() {
  pinMode(fanPin, OUTPUT);
}

void loop() {
  // Set fan speed to 50% (adjust value between 0 and 255 for different speeds)
  analogWrite(fanPin, 128);
  delay(1000);

// Turn off the fan
  digitalWrite(fanPin, LOW);
  delay(1000);
}
```

### Example 2: Fan Control with Raspberry Pi (Python)

This example shows how to control the fan using a Raspberry Pi and Python.

```python
import RPi.GPIO as GPIO
import time

# Set up GPIO mode
GPIO.setmode(GPIO.BCM)

# Define the fan pin
fan_pin = 18

# Set up the fan pin as an output
GPIO.setup(fan_pin, GPIO.OUT)

try:
    while True:
        # Set fan speed to 50% (adjust value between 0 and 100 for different speeds)
        GPIO.PWM(fan_pin, 50).start(50)
        time.sleep(1)

# Turn off the fan
        GPIO.output(fan_pin, GPIO.LOW)
        time.sleep(1)
except KeyboardInterrupt:
    GPIO.cleanup()
```

Important Notes

Before using the fan, ensure that the power supply can provide the required voltage and current.
 When using PWM for speed control, the maximum frequency should not exceed 25 kHz to avoid motor damage.
 The fan's operating temperature range should be considered when designing the application to ensure reliable operation.

By following these guidelines and examples, you can effectively integrate the 12V Brushless DC Fan - 4010 into your IoT projects and applications.
