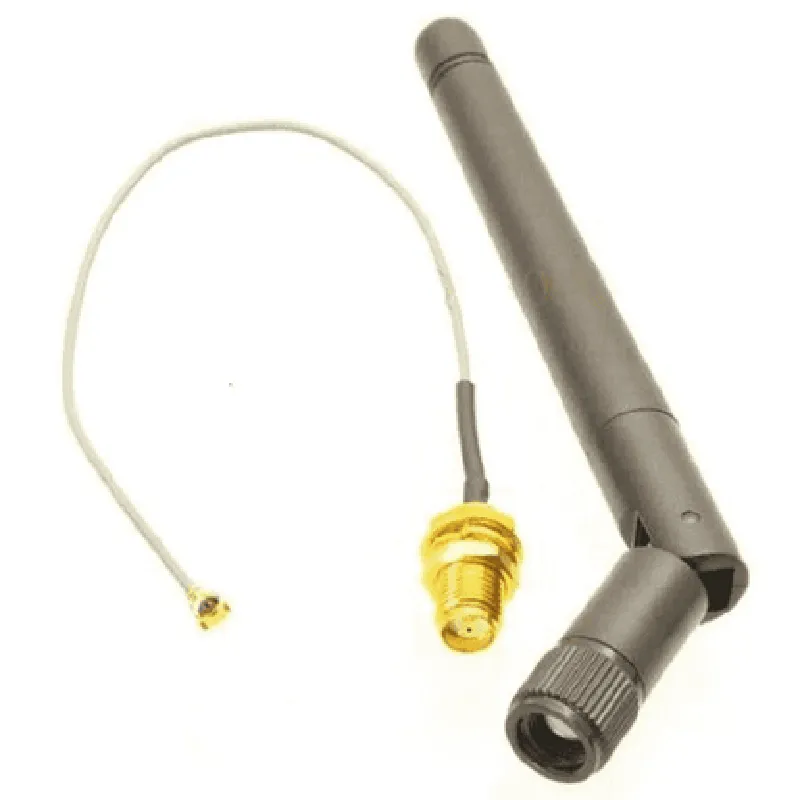

Component Documentation: 6dBi 2.4GHz 5GHz Dual Band WiFi SMA Antenna +165mm U.fl-IPEX Cable
The 6dBi 2.4GHz 5GHz Dual Band WiFi SMA Antenna +165mm U.fl-IPEX Cable is a high-gain, dual-band WiFi antenna designed for IoT applications. It operates on both 2.4GHz and 5GHz frequency bands, making it suitable for various wireless communication protocols, including WiFi, Bluetooth, and Zigbee. The antenna features a 6dBi gain, ensuring reliable and stable wireless communication over extended distances.
Frequency Range: 2.4GHz, 5GHz
Gain: 6dBi
Impedance: 50
Connector Type: SMA (SubMiniature version A)
Cable Length: 165mm

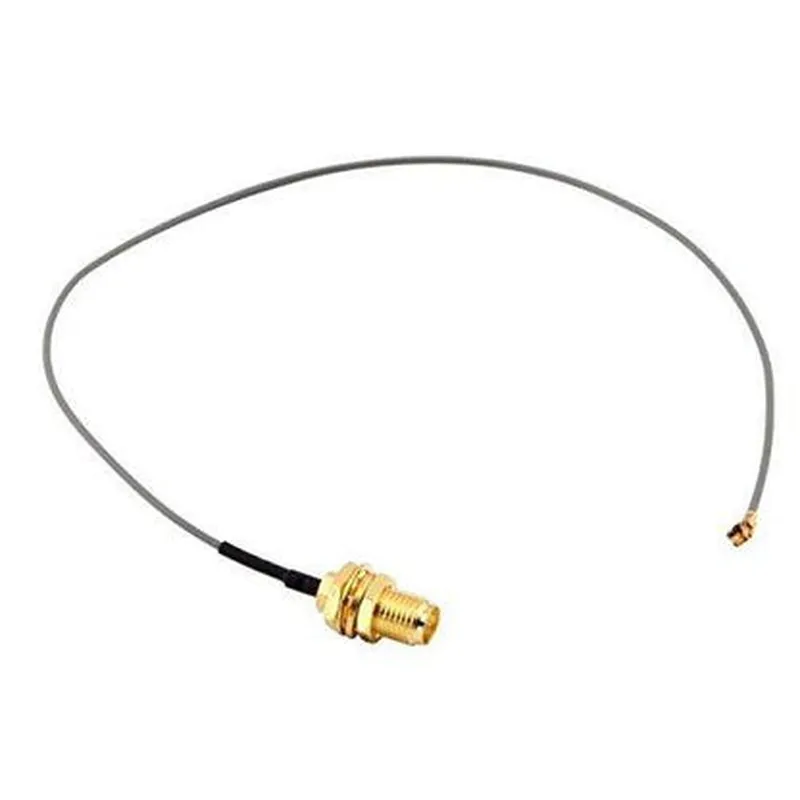

Cable Type: U.fl-IPEX
Operating Temperature: -40C to +80C
Dimensions (LxWxH): 55mm x 15mm x 15mm
### Example 1: ESP32 WiFi Connection using the 6dBi Antenna
In this example, we demonstrate how to use the 6dBi antenna with an ESP32 microcontroller to connect to a WiFi network.
// Define the WiFi credentials
const char ssid = "yourWiFiSSID";
const char password = "yourWiFiPassword";
// Set up the ESP32 WiFi mode
WiFi.mode(WIFI_STA);
// Connect to the WiFi network
WiFi.begin(ssid, password);
// Wait for the connection to establish
while (WiFi.status() != WL_CONNECTED) {
delay(1000);
Serial.println("Connecting to WiFi...");
}
Serial.println("Connected to WiFi");
Serial.println("IP Address: ");
Serial.println(WiFi.localIP());
```
### Example 2: Raspberry Pi WiFi Connection using the 6dBi Antenna
In this example, we demonstrate how to use the 6dBi antenna with a Raspberry Pi to connect to a WiFi network.
# Define the WiFi credentials
ssid = "yourWiFiSSID"
password = "yourWiFiPassword"
# Set up the WiFi connection
os.system("sudo iwconfig wlan0 essid " + ssid)
os.system("sudo iwconfig wlan0 key " + password)
# Bring up the WiFi interface
os.system("sudo ifup wlan0")
print("Connected to WiFi")
print("IP Address: ")
print(os.system("sudo ifconfig wlan0 | grep 'inet addr'"))
```
Note: These code examples assume that the 6dBi antenna is properly connected to the respective IoT board (ESP32 or Raspberry Pi) and that the necessary WiFi libraries and dependencies are installed.
Best Practices and Precautions
Ensure the antenna is securely connected to the IoT board to prevent damage or signal loss.
Keep the antenna away from metal objects or surfaces to prevent signal interference.
Use the antenna in a well-ventilated area to prevent overheating.
Avoid touching the antenna or its connections to prevent ESD damage.
By following these guidelines and code examples, you can effectively utilize the 6dBi 2.4GHz 5GHz Dual Band WiFi SMA Antenna +165mm U.fl-IPEX Cable in your IoT projects, ensuring reliable and stable wireless communication.
