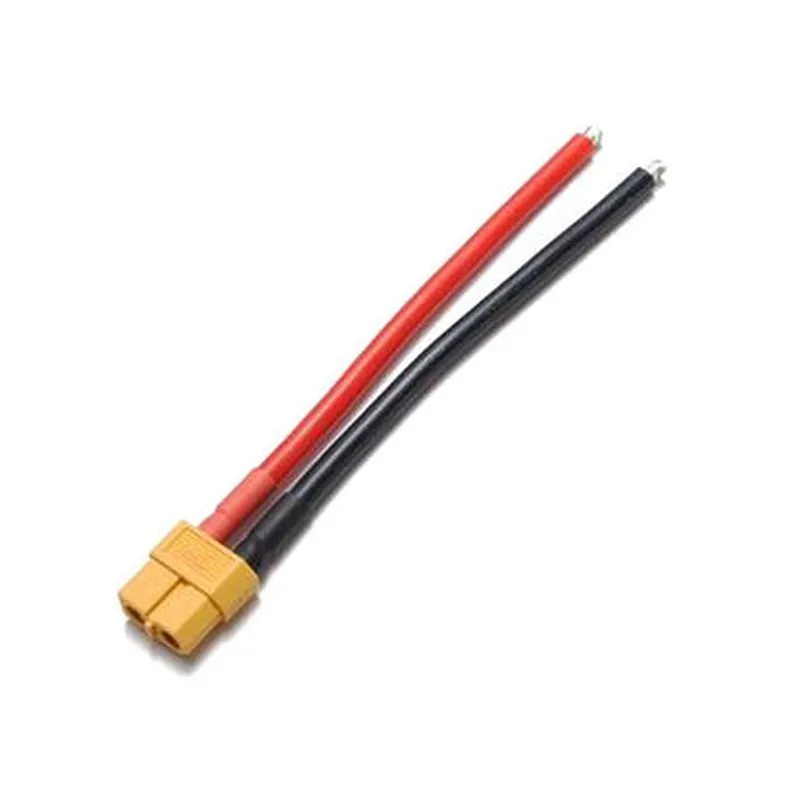

XT60 Female Connector with Silicon Wire

Overview

The XT60 Female Connector with Silicon Wire is a high-quality, reliable, and versatile connector solution designed for use in a wide range of applications, including robotics, drones, electric vehicles, and other IoT devices. This component combines the popular XT60 female connector with high-performance silicon wire, providing a robust and efficient connection solution.

Functionality

The XT60 Female Connector with Silicon Wire is designed to facilitate the efficient transmission of electrical power and signals between devices. The XT60 female connector is a compact, lightweight, and easy-to-use connector that can be paired with an XT60 male connector to form a secure and reliable connection. The silicon wire, which is insulated with a durable and flexible material, provides a high-stretch and high-temperature-resistant connection that can withstand the demands of high-power applications.

Key Features

  • XT60 Female Connector:

Compact and lightweight design

Easy to use and install

Supports high-current applications (up to 60A)

Gold-plated contacts for maximum conductivity and reliability

  • Silicon Wire:

High-temperature resistance (up to 200C)

High-stretchability (up to 25%)

Durable and flexible insulation material

Reduced electromagnetic interference (EMI) and radio-frequency interference (RFI)

  • Wire Specifications:

Wire gauge

12 AWG (American Wire Gauge)

Wire length

10 cm (custom lengths available)

Wire material

Silicon-insulated copper wire

  • Operating Conditions:

Operating temperature

-20C to 80C

Storage temperature

-40C to 100C

  • Certifications and Compliance:

RoHS (Restriction of Hazardous Substances) compliant

REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant

Applications

The XT60 Female Connector with Silicon Wire is suitable for a wide range of applications, including

Robotics and robotic arms

Drones and UAVs (Unmanned Aerial Vehicles)

Electric vehicles and motorized systems

Industrial automation and control systems

IoT devices and sensor networks

Battery management systems and power distribution units

Benefits

  • Reliable and Efficient Connection: The XT60 female connector and silicon wire provide a secure and reliable connection, ensuring efficient power transmission and signal integrity.
  • High-Temperature Resistance: The silicon wire's high-temperature resistance makes it ideal for applications where high temperatures are present or expected.
  • Flexibility and Durability: The flexible insulation material and silicon wire's high-stretchability make it suitable for applications where movement and vibration are present.
  • Easy to Use: The XT60 female connector is easy to install and use, reducing the risk of incorrect connections and ensuring a secure and reliable connection.

Conclusion

The XT60 Female Connector with Silicon Wire is a high-performance, reliable, and versatile connector solution designed for use in demanding applications. With its robust design, high-temperature resistance, and flexible insulation material, this component is an ideal choice for applications where efficient power transmission and signal integrity are critical.

Pin Configuration

  • XT60 Female Connector with Silicon Wire Documentation
  • The XT60 Female Connector with Silicon Wire is a popular component used in various IoT and electrical applications. This documentation provides a detailed explanation of the pins and their connections.
  • Pinout Structure:
  • The XT60 Female Connector has a total of 2 pins, labeled as Positive (+) and Negative (-).
  • Pin Descriptions:
  • 1. Positive (+) Pin:
  • Function: Carries the positive voltage supply to the connected device.
  • Color Code: Typically, the positive wire is colored Red or Yellow.
  • Connection: Connect the positive wire to the positive terminal of the power source or the positive leg of a battery.
  • 2. Negative (-) Pin:
  • Function: Carries the negative voltage supply or ground connection to the connected device.
  • Color Code: Typically, the negative wire is colored Black or Brown.
  • Connection: Connect the negative wire to the negative terminal of the power source, the negative leg of a battery, or a common ground point.
  • Connection Structure:
  • To connect the XT60 Female Connector with Silicon Wire, follow these steps:
  • Step 1: Identify the Pins
  • Identify the Positive (+) and Negative (-) pins on the XT60 Female Connector.
  • Step 2: Prepare the Wires
  • Ensure the silicon wires are stripped and tinned, if necessary.
  • Step 3: Connect the Positive Wire
  • Insert the positive wire into the positive pin on the XT60 Female Connector.
  • Ensure the wire is fully seated and secure.
  • Step 4: Connect the Negative Wire
  • Insert the negative wire into the negative pin on the XT60 Female Connector.
  • Ensure the wire is fully seated and secure.
  • Step 5: Verify the Connections
  • Double-check that the positive wire is connected to the positive pin and the negative wire is connected to the negative pin.
  • Ensure there are no short circuits or loose connections.
  • Safety Precautions:
  • Always handle the XT60 Female Connector with care to avoid damage or electrical shock.
  • Ensure the connections are secure and do not come loose during operation.
  • Follow proper safety protocols when working with electrical components and power sources.
  • By following these guidelines, you can safely and effectively connect the XT60 Female Connector with Silicon Wire to your IoT device or electrical system.

Code Examples

XT60 Female Connector with Silicon Wire Documentation
Overview
The XT60 female connector with silicon wire is a popular component in the Internet of Things (IoT) and robotics applications. It provides a secure and reliable connection for power and signal transmission between devices. The XT60 connector is designed for high-current applications, making it suitable for use in drones, RC cars, and other high-power devices.
Key Features
XT60 female connector with silicon wire
 High-current rating up to 60A
 Operating temperature range: -20C to 80C
 Insulation material: Silicon
 Wire gauge: 14AWG
 Wire length: 10cm (standard), customizable upon request
Technical Specifications
| Parameter | Value |
| --- | --- |
| Connector Type | XT60 Female |
| Wire Material | Silicon-insulated Copper |
| Wire Gauge | 14AWG |
| Wire Length | 10cm |
| Operating Temperature | -20C to 80C |
| Current Rating | 60A |
| Voltage Rating | 30V |
Code Examples
Here are a few code examples demonstrating how to use the XT60 female connector with silicon wire in different contexts:
### Example 1: Connecting a LiPo Battery to a Drone Flight Controller (Arduino)
In this example, we will connect a LiPo battery to a drone flight controller using the XT60 female connector with silicon wire.
```cpp
// Drone Flight Controller (Arduino) Code
const int batteryVoltagePin = A0;  // Battery voltage monitoring pin
const int batteryCurrentPin = A1;  // Battery current monitoring pin
void setup() {
  Serial.begin(9600);
}
void loop() {
  int batteryVoltage = analogRead(batteryVoltagePin);
  int batteryCurrent = analogRead(batteryCurrentPin);

  // Calculate battery voltage and current
  float voltage = (batteryVoltage  5.0 / 1024.0)  2;
  float current = (batteryCurrent  5.0 / 1024.0)  10;

  // Print battery voltage and current values
  Serial.print("Battery Voltage: ");
  Serial.print(voltage);
  Serial.println("V");
  Serial.print("Battery Current: ");
  Serial.print(current);
  Serial.println("A");

  delay(1000);
}
```
### Example 2: Powering a Raspberry Pi with a Battery Pack (Python)
In this example, we will connect a battery pack to a Raspberry Pi using the XT60 female connector with silicon wire.
```python
# Raspberry Pi (Python) Code
import RPi.GPIO as GPIO
import time
# Set up GPIO pin for power control
GPIO.setmode(GPIO.BCM)
GPIO.setup(17, GPIO.OUT)
try:
    while True:
        # Power on the Raspberry Pi
        GPIO.output(17, GPIO.HIGH)
        print("Raspberry Pi powered on")
        time.sleep(5)

        # Power off the Raspberry Pi
        GPIO.output(17, GPIO.LOW)
        print("Raspberry Pi powered off")
        time.sleep(5)
except KeyboardInterrupt:
    GPIO.cleanup()
```
Notes
When working with high-current applications, ensure proper wiring and connections to avoid damage to the XT60 connector and silicon wire.
 Always follow proper safety precautions when working with electrical components.
Related Components
XT60 Male Connector with Silicon Wire
 JST-XH 2.54mm Female Connector with Silicon Wire
 14AWG Silicon-insulated Copper Wire
I hope this documentation helps! Let me know if you have any further questions or need more examples.
