7806 Voltage Regulator IC
7806 Voltage Regulator IC

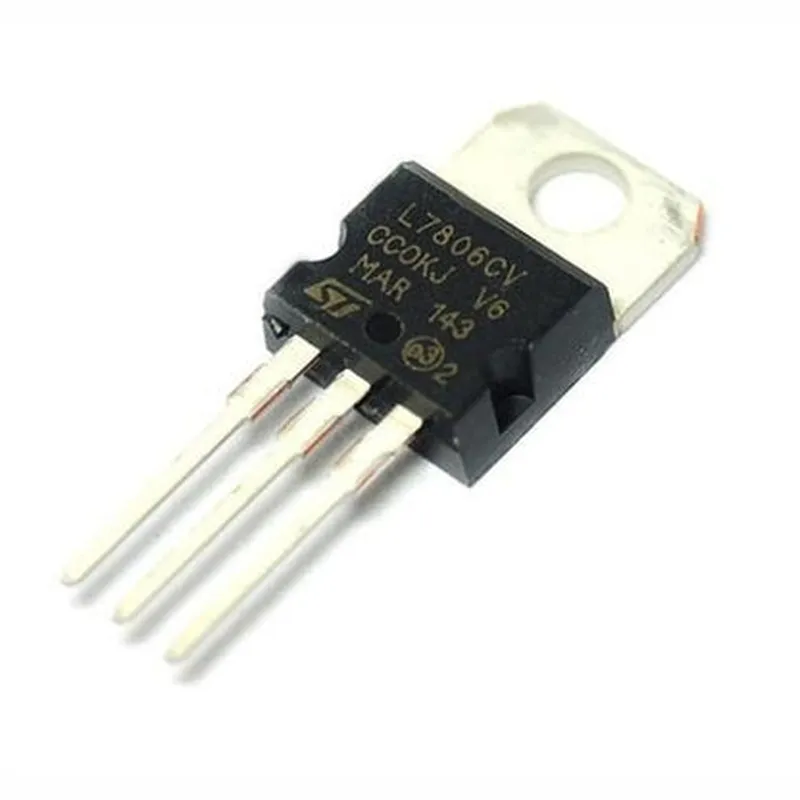

The 7806 is a three-terminal positive voltage regulator IC (Integrated Circuit) designed to provide a stable and regulated output voltage of 6V. It is a popular and widely used voltage regulator in electronic circuits, ideal for applications where a fixed and stable output voltage is required.
The 7806 voltage regulator IC is designed to convert an unregulated input voltage to a regulated output voltage of 6V. The IC takes an input voltage from a power source, such as a battery or a transformer, and converts it into a stable output voltage that can be used to power electronic circuits. The regulator operates by comparing the output voltage to a reference voltage and adjusting the current flow to maintain a constant output voltage.

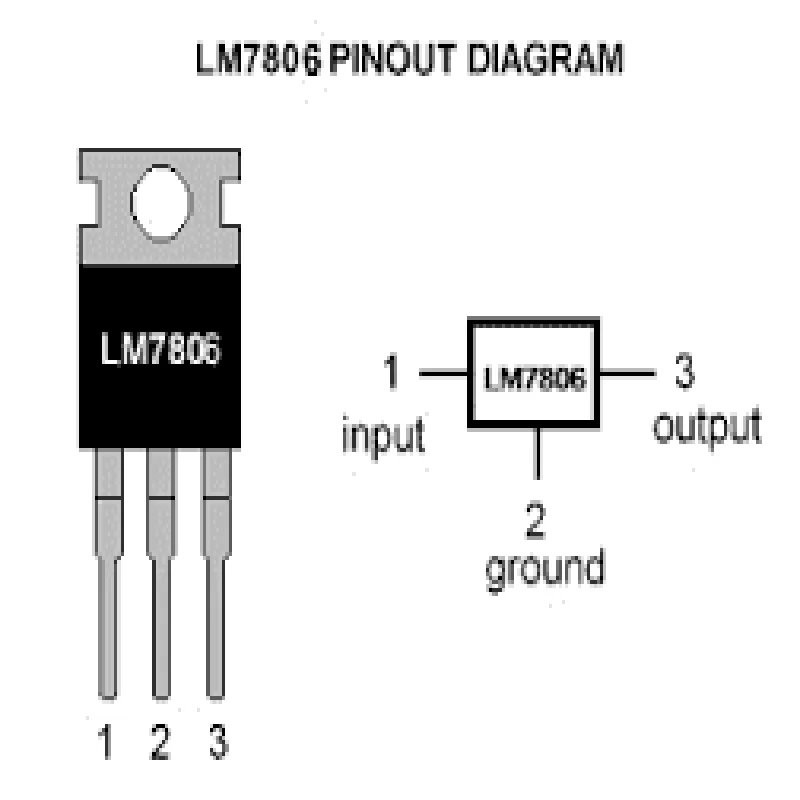

Component Documentation: 7806 Voltage Regulator ICOverviewThe 7806 is a three-terminal positive voltage regulator IC that provides a fixed output voltage of 6V. It is a popular and widely used component in electronic circuits, known for its ease of use, high reliability, and excellent load regulation. The 7806 is suitable for a wide range of applications, including power supplies, battery chargers, and voltage regualtion systems.PinoutThe 7806 IC has three pins:Input (VIN): The input voltage to the regulator, typically from a power source such as a battery or wall adapter.
Output (VOUT): The regulated output voltage, which is 6V in this case.
Ground (GND): The ground connection for the regulator.Features and CharacteristicsFixed output voltage: 6V
Input voltage range: 7.5V to 25V
Output current: Up to 1.5A
Line regulation: 0.01% / V
Load regulation: 0.05% / mA
Dropout voltage: 2V
Operating temperature range: 0C to 125CExample 1: Simple Voltage Regulator CircuitIn this example, we'll create a simple voltage regulator circuit using the 7806 IC to power a small electronic device.Circuit Diagram```
VIN 7806 VOUT
| | |
| 9V Battery | | 6V Output
| | |
| | |
GND GND GND
```Code ExampleThis example assumes an Arduino board is used to monitor the output voltage. The code reads the output voltage and prints it to the serial console.```c++
void setup() {
Serial.begin(9600);
}void loop() {
int sensorValue = analogRead(A0); // Connect VOUT to A0
float voltage = sensorValue (6.0 / 1023.0);
Serial.print("Output Voltage: ");
Serial.print(voltage);
Serial.println(" V");
delay(1000);
}
```Example 2: Regulating Voltage for a MicrocontrollerIn this example, we'll use the 7806 IC to regulate the voltage for a microcontroller, such as the ATmega328P.Circuit Diagram```
VIN 7806 VOUT
| | |
| 9V Battery | | 6V Output
| | |
| | |
GND GND GND
|
|
V
|
| ATmega328P |
| Microcontroller |
| |
```Code ExampleThis example assumes the ATmega328P is used to blink an LED connected to digital pin 13.```c++
#define LED_PIN 13void setup() {
pinMode(LED_PIN, OUTPUT);
}void loop() {
digitalWrite(LED_PIN, HIGH);
delay(1000);
digitalWrite(LED_PIN, LOW);
delay(1000);
}
```Example 3: Voltage Regulator for a Sensor CircuitIn this example, we'll use the 7806 IC to regulate the voltage for a sensor circuit, such as a temperature sensor.Circuit Diagram```
VIN 7806 VOUT
| | |
| 9V Battery | | 6V Output
| | |
| | |
GND GND GND
|
|
V
|
| TMP36 |
| Temperature Sensor |
| |
```Code ExampleThis example assumes an Arduino board is used to read the temperature sensor data and print it to the serial console.```c++
void setup() {
Serial.begin(9600);
}void loop() {
int sensorValue = analogRead(A0); // Connect TMP36 output to A0
float temperature = (sensorValue 5.0 / 1023.0) - 0.5;
Serial.print("Temperature: ");
Serial.print(temperature);
Serial.println(" C");
delay(1000);
}
```ConclusionThe 7806 voltage regulator IC is a versatile and reliable component that can be used in a wide range of applications. By following these examples, you can create your own voltage regulator circuits for powering electronic devices, microcontrollers, and sensor circuits.
