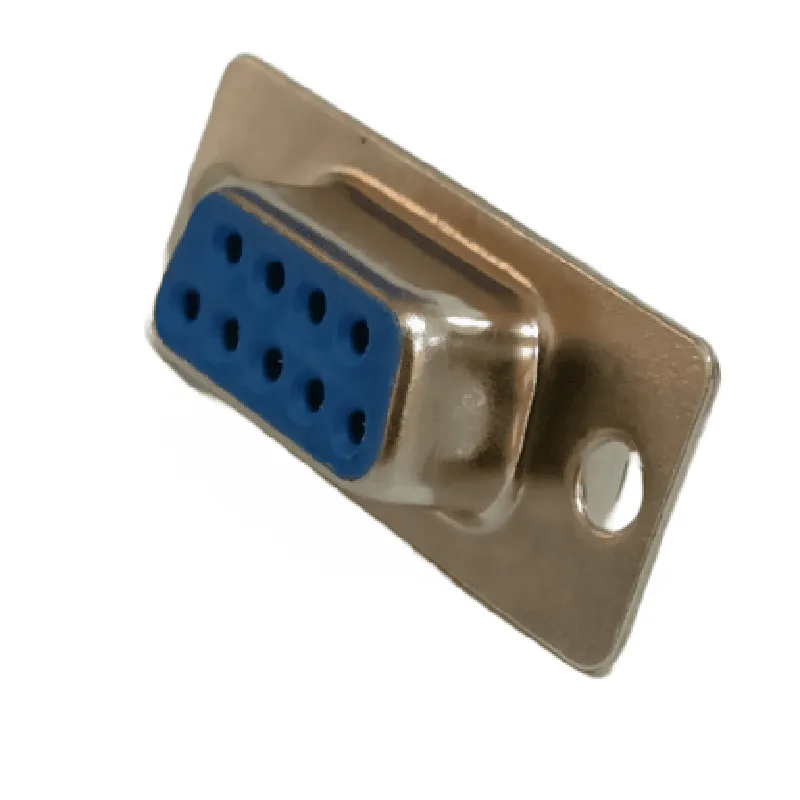

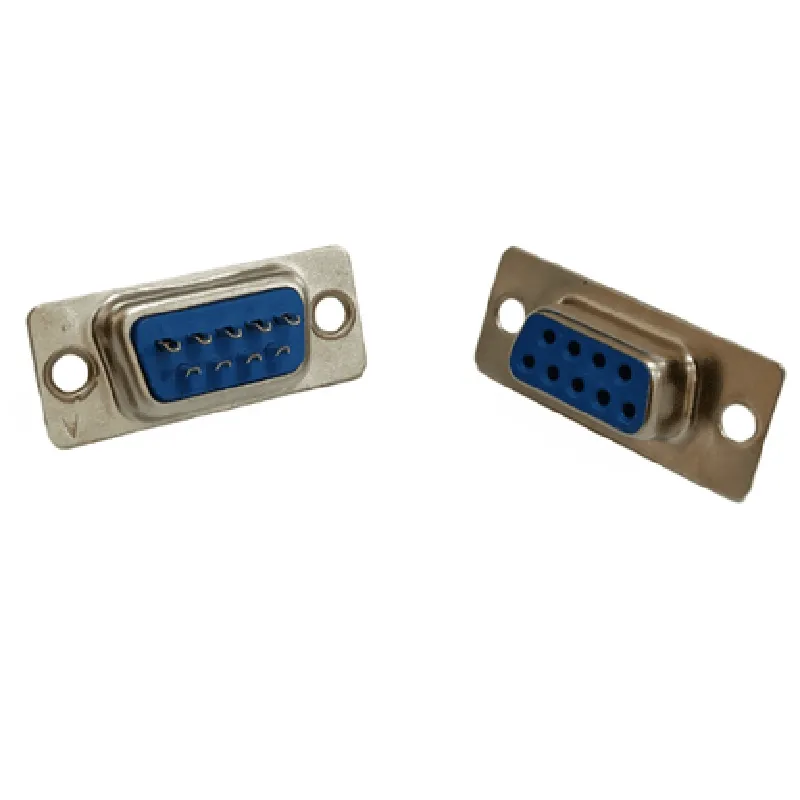

DB9 Female Straight Connector

DB9 Female Straight Connector Documentation

Overview

The DB9 Female Straight Connector is a type of electrical connector used to connect devices and peripherals in various applications, including industrial automation, computer systems, and networking equipment. This connector is a female version of the DB9 connector, which is a standardized 9-pin connector commonly used for serial communication interfaces such as RS-232, RS-422, and RS-485.

Technical Specifications

Connector Type: DB9 Female Straight
 Number of Pins: 9
 Pitch: 2.54mm (0.1 inch)
 Contact Material: Copper Alloy
 Insulator Material: Thermoplastic
 Operating Temperature: -40C to 105C (-40F to 221F)
 Rated Voltage: 300V AC/DC
 Rated Current: 1A per pin

Code Examples

Here are some code examples demonstrating how to use the DB9 Female Straight Connector in various contexts:

Example 1: Arduino Serial Communication with DB9 Female Straight Connector

In this example, we'll use the DB9 Female Straight Connector to connect an Arduino Uno board to a serial device, such as a GPS module, and read data from the device using the Arduino's built-in serial communication capabilities.

```c++
#include <Arduino.h>

#define RX_PIN 0  // Receive pin (pin 2 on the DB9 connector)
#define TX_PIN 1  // Transmit pin (pin 3 on the DB9 connector)

void setup() {
  Serial.begin(9600);  // Initialize serial communication at 9600 bps
}

void loop() {
  if (Serial.available() > 0) {
    char c = Serial.read();
    Serial.print(c);  // Print received character to the serial monitor
  }
}
```

Example 2: Python Serial Communication with DB9 Female Straight Connector (Using PySerial Library)

In this example, we'll use the DB9 Female Straight Connector to connect a Python script running on a computer to a serial device, such as a temperature sensor, and read data from the device using the PySerial library.

```python
import serial

# Open the serial port connected to the DB9 Female Straight Connector
ser = serial.Serial('COM3', 9600, timeout=1)  # Windows
# ser = serial.Serial('/dev/ttyUSB0', 9600, timeout=1)  # Linux/macOS

while True:
    line = ser.readline().decode('utf-8').strip()
    if line:
        print(line)  # Print received data to the console

ser.close()  # Close the serial port
```

Example 3: C++ Serial Communication with DB9 Female Straight Connector (Using Linux Serial API)

In this example, we'll use the DB9 Female Straight Connector to connect a C++ program running on a Linux system to a serial device, such as a barcode scanner, and read data from the device using the Linux serial API.

```c++
#include <fcntl.h>
#include <termios.h>
#include <unistd.h>

int main() {
    int fd = open("/dev/ttyUSB0", O_RDWR | O_NOCTTY | O_NDELAY);  // Open the serial port
    if (fd == -1) {
        perror("open");
        return 1;
    }

struct termios oldtio, newtio;
    tcgetattr(fd, &oldtio);  // Get current serial port settings
    newtio.c_cflag = B9600 | CRTSCTS | CS8 | CLOCAL | CREAD;
    newtio.c_iflag = IGNPAR;
    newtio.c_oflag = 0;
    newtio.c_lflag = 0;
    tcflush(fd, TCIFLUSH);
    tcsetattr(fd, TCSANOW, &newtio);  // Set new serial port settings

char buffer[256];
    while (true) {
        int bytes_read = read(fd, buffer, 256);
        if (bytes_read > 0) {
            write(STDOUT_FILENO, buffer, bytes_read);  // Print received data to the console
        }
    }

close(fd);  // Close the serial port
    return 0;
}
```

These code examples demonstrate how to use the DB9 Female Straight Connector in various contexts, including Arduino, Python, and C++ programming languages. The connector can be used in a wide range of applications, including industrial automation, computer systems, and networking equipment.
