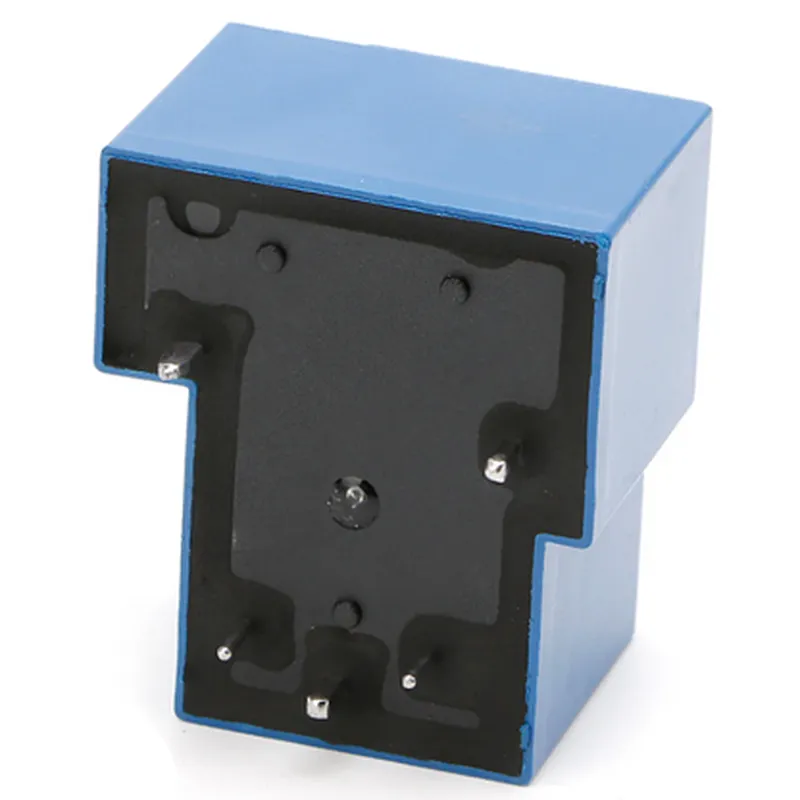

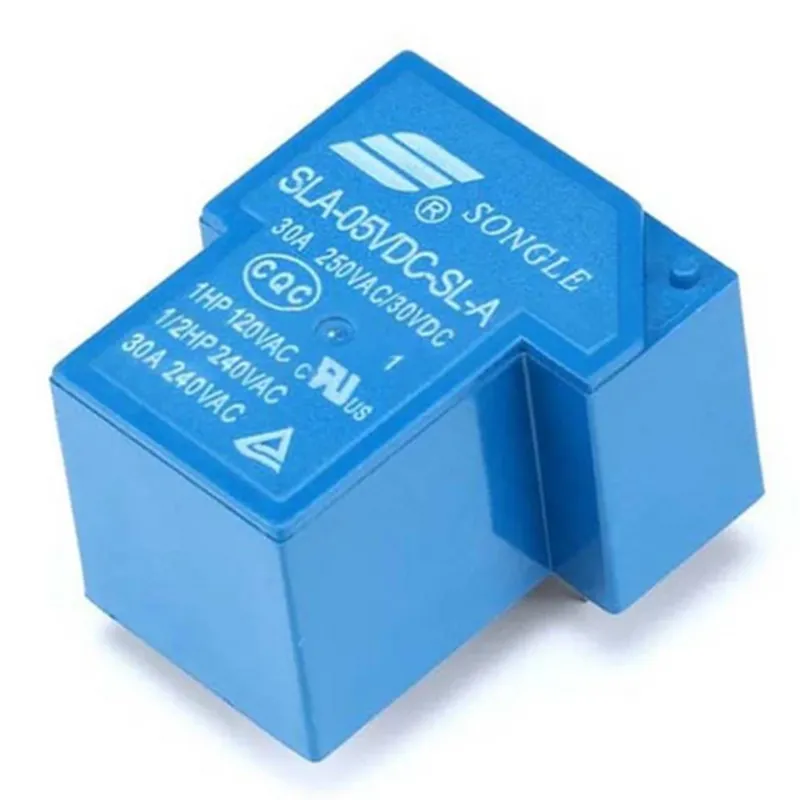

SLA 5V DC 5Pin 30A Power Relay

Buy Now on Stufin

Component Description

Overview

The SLA 5V DC 5Pin 30A Power Relay is a high-performance, compact power relay module designed for a wide range of applications in the Internet of Things (IoT), industrial automation, and control systems. This relay module provides a reliable and efficient way to control high-current loads, making it an ideal choice for designers and engineers working on projects that require robust power management.

Functionality

The SLA 5V DC 5Pin 30A Power Relay is an electromechanical switch that uses an electrical signal to control the flow of electrical power to a load. It consists of an electromagnet, a set of normally open (NO) and normally closed (NC) contacts, and a control circuit. When a 5V DC signal is applied to the relay's control input, the electromagnet energizes, causing the NO contacts to close and the NC contacts to open, thereby turning on the connected load. Conversely, when the control signal is removed, the relay de-energizes, and the NO contacts open, while the NC contacts close, turning off the load.

Key Features

High-Current Rating: The relay can handle a maximum current of 30A, making it suitable for a wide range of high-power applications.
5V DC Control Input: The relay can be controlled using a 5V DC signal, which is compatible with most microcontrollers and other digital devices.
5-Pin Interface: The relay features a compact 5-pin interface, which includes a Control Input (IN), a Normally Open (NO) contact, a Normally Closed (NC) contact, a Common (COM) contact, and a Ground (GND) pin.
Low Power Consumption: The relay has a low power consumption of around 50mA, ensuring efficient operation and minimizing energy waste.
Compact Design: The relay's compact size and low profile make it ideal for space-constrained applications, such as IoT devices, robotics, and automotive systems.
High Reliability: The relay is built with high-quality components and designed to ensure reliable operation in demanding environments, making it suitable for industrial and commercial applications.
Isolation: The relay provides electrical isolation between the control circuit and the load, ensuring safe and reliable operation.

Technical Specifications

| Specification | Value |

| --- | --- |

| Control Voltage | 5V DC |

| Control Current | 50mA |

| Max. Switching Current | 30A |

| Contact Type | SPDT (Single Pole Double Throw) |

| Contact Material | AgSnO2 |

| Operating Temperature | -40C to 85C |

| Storage Temperature | -40C to 125C |

| Dimensions | 22.5mm x 17.5mm x 13.5mm |

| Weight | 15g |

Applications

The SLA 5V DC 5Pin 30A Power Relay is suitable for a wide range of applications, including

IoT devices and sensors

Industrial automation and control systems

Robotics and mechatronics

Automotive systems

Home automation and appliances

Medical devices and equipment

Conclusion

The SLA 5V DC 5Pin 30A Power Relay is a reliable and efficient power management solution for a wide range of applications. Its compact design, high-current rating, and low power consumption make it an ideal choice for designers and engineers working on projects that require robust power management capabilities.

Pin Configuration

SLA 5V DC 5Pin 30A Power Relay Documentation
Overview
The SLA 5V DC 5Pin 30A Power Relay is a high-current relay module designed for switching high-power devices. It has a compact design and is suitable for a wide range of applications, including industrial automation, robotics, and IoT projects.
Pinouts
The relay module has 5 pins, which are explained below:
Pin 1: VCC (5V DC Power Supply)
Function: Power supply pin for the relay module
Voltage: 5V DC
Current: Up to 100mA
Connection: Connect to a 5V DC power source, such as a battery or a power supply unit
Pin 2: IN (Input Signal)
Function: Input signal pin to control the relay
Logic Level: Active low (0V to switch on, 5V to switch off)
Connection: Connect to a microcontroller or other control device output pin
Pin 3: GND (Ground)
Function: Ground pin for the relay module
Connection: Connect to the ground of the power supply and other devices in the circuit
Pin 4: NO (Normally Open)
Function: Normally open contact of the relay
Connection: Connect to the load (device to be switched) positive terminal
Pin 5: NC (Normally Closed)
Function: Normally closed contact of the relay
Connection: Connect to the load (device to be switched) negative terminal
Connection Structure
To connect the relay module, follow these steps:
1. Connect Pin 1 (VCC) to a 5V DC power source.
2. Connect Pin 2 (IN) to a microcontroller or control device output pin.
3. Connect Pin 3 (GND) to the ground of the power supply and other devices in the circuit.
4. Connect Pin 4 (NO) to the positive terminal of the load (device to be switched).
5. Connect Pin 5 (NC) to the negative terminal of the load (device to be switched).
Example Connection
Suppose you want to control a 12V DC motor using the relay module with an Arduino board.
Connect Pin 1 (VCC) to the 5V output of the Arduino board.
Connect Pin 2 (IN) to a digital output pin of the Arduino board (e.g., D2).
Connect Pin 3 (GND) to the GND pin of the Arduino board.
Connect Pin 4 (NO) to the positive terminal of the 12V DC motor.
Connect Pin 5 (NC) to the negative terminal of the 12V DC motor.
Note
Make sure to use a suitable current-limiting resistor and a flyback diode (if necessary) to protect the relay and other components from back-EMF and overvoltage.
Always follow proper safety precautions when working with high-voltage and high-current devices.

Code Examples

SLA 5V DC 5Pin 30A Power Relay Documentation

Overview

The SLA 5V DC 5Pin 30A Power Relay is a high-current relay module suitable for a wide range of IoT applications. It features a compact design, low power consumption, and high reliability. This relay module is ideal for controlling heavy loads, such as motors, pumps, and lights, in various IoT projects.

Pinout

The SLA 5V DC 5Pin 30A Power Relay has a 5-pin interface:

VCC (Pin 1): 5V DC power supply
 GND (Pin 2): Ground
 IN (Pin 3): Input signal (active low)
 NO (Pin 4): Normally Open contact
 NC (Pin 5): Normally Closed contact

Operating Specifications

Coil Voltage: 5V DC
 Coil Current: 72mA
 Contact Rating: 30A @ 250V AC or 30V DC
 Operating Temperature: -40C to 85C
 Storage Temperature: -40C to 125C

Example 1: Controlling a DC Motor using Arduino

In this example, we will demonstrate how to use the SLA 5V DC 5Pin 30A Power Relay to control a DC motor using an Arduino board.

```c
const int relayPin = 2;  // IN pin connected to digital pin 2 on Arduino

void setup() {
  pinMode(relayPin, OUTPUT);
}

void loop() {
  digitalWrite(relayPin, LOW);  // Turn the relay ON (motor starts)
  delay(5000);
  digitalWrite(relayPin, HIGH);  // Turn the relay OFF (motor stops)
  delay(5000);
}
```

Example 2: Controlling a Light Bulb using Raspberry Pi

In this example, we will demonstrate how to use the SLA 5V DC 5Pin 30A Power Relay to control a light bulb using a Raspberry Pi.

```python
import RPi.GPIO as GPIO
import time

GPIO.setmode(GPIO.BCM)
relay_pin = 17  # IN pin connected to GPIO 17 on Raspberry Pi
GPIO.setup(relay_pin, GPIO.OUT)

try:
    while True:
        GPIO.output(relay_pin, GPIO.LOW)  # Turn the relay ON (light bulb turns on)
        time.sleep(5)
        GPIO.output(relay_pin, GPIO.HIGH)  # Turn the relay OFF (light bulb turns off)
        time.sleep(5)
except KeyboardInterrupt:
    GPIO.cleanup()
```

Example 3: Controlling a Pump using ESP32

In this example, we will demonstrate how to use the SLA 5V DC 5Pin 30A Power Relay to control a pump using an ESP32 board.

```c
#include <WiFi.h>

const int relayPin = 32;  // IN pin connected to GPIO 32 on ESP32

void setup() {
  pinMode(relayPin, OUTPUT);
}

void loop() {
  digitalWrite(relayPin, LOW);  // Turn the relay ON (pump starts)
  delay(3000);
  digitalWrite(relayPin, HIGH);  // Turn the relay OFF (pump stops)
  delay(3000);
}
```

Troubleshooting and Precautions

Ensure the relay module is properly connected to the power supply and load.
 Use a suitable heatsink to prevent overheating.
 Avoid exceeding the maximum contact rating to prevent damage.
 Use a flyback diode or snubber circuit to protect the relay from back-EMF when switching inductive loads.

Warranty and Disclaimer

The SLA 5V DC 5Pin 30A Power Relay is a high-quality component, but it is not faultless. The manufacturer provides a limited warranty for defects in materials and workmanship. The user assumes all risks and liabilities associated with the use of this component.
