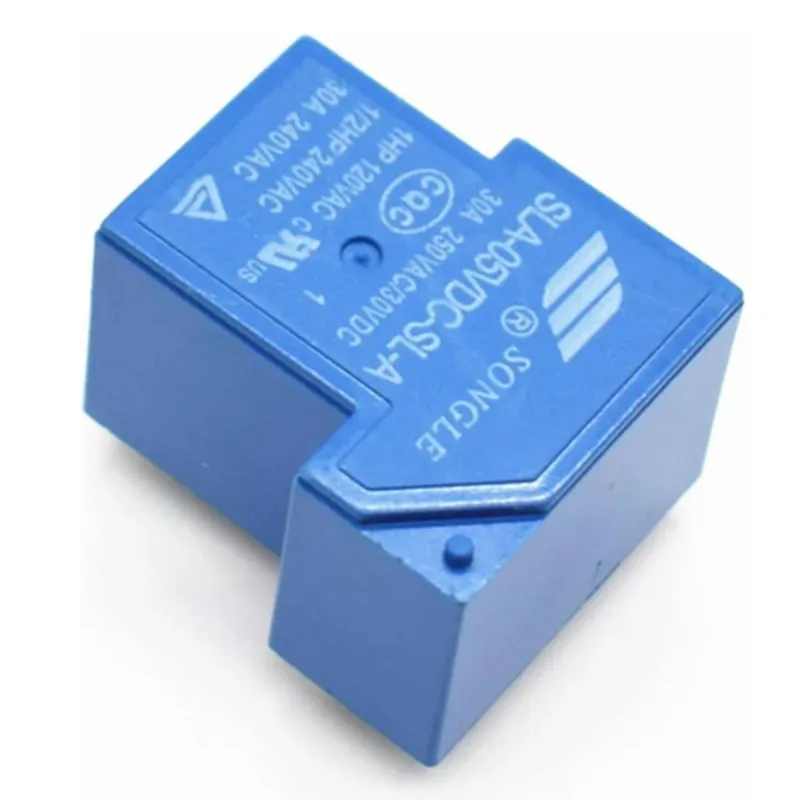

SLA 5V DC 5Pin 30A Power Relay

Stufin

SLA 5V DC 5Pin 30A Power Relay

This product is not available in your location yet

Description: 1. Power Specifications: SLA 5V DC 5Pin 30A Power Relay is a high power relay designed for use with 5V DC power sources, capable of handling up to 30 amps of current. 2. Five-Pin Design: This relay features a five-pin configuration consisting of Normally Open (NO), Common (COM), Normally Closed (NC), Vcc, and GND pins for versatile application use. 3. High Power Handling: Suitable for high power loads in Internet of Things (IoT) systems, making it ideal for controlling heavy-duty applications like motors, heating elements, or large solenoids. 4. Reliability: The SLA 5V DC 5Pin 30A Power Relay ensures reliable performance through its robust construction and high-quality materials, ensuring a long service life. 5. Easy Integration: With standard dimensions and a universal pinout configuration, this relay can be easily integrated into various IoT projects with minimal modifications needed to the system design. 6. Digital Control: The relay operates digitally through the application

View Technical Documentation

Specification	Details
Voltage Rating	5V DC
Current Rating	30A (continuous) 60A (peak)
Relay Type	Solid-State latching (SLA)
Pin Configuration	5-pin (IN+ IN- NC NO VCC/GND)
Operating Temperature	-40°C to 85°C
Storage Temperature	-55°C to 125°C
Switching Time	<10ms
Contact Material	Gold (gold-plated contacts)
Insulation Resistance	≥100MΩ (at 500V DC)
Dimensions	Not specified (check product datasheet for dimensions)
Mounting Type	Through-hole (through PCB holes)
