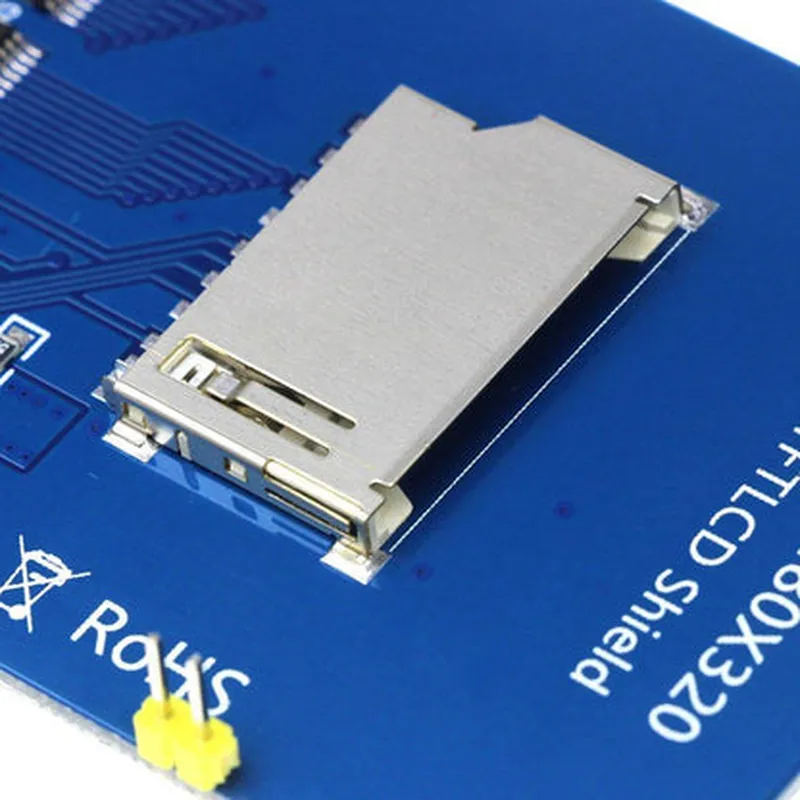

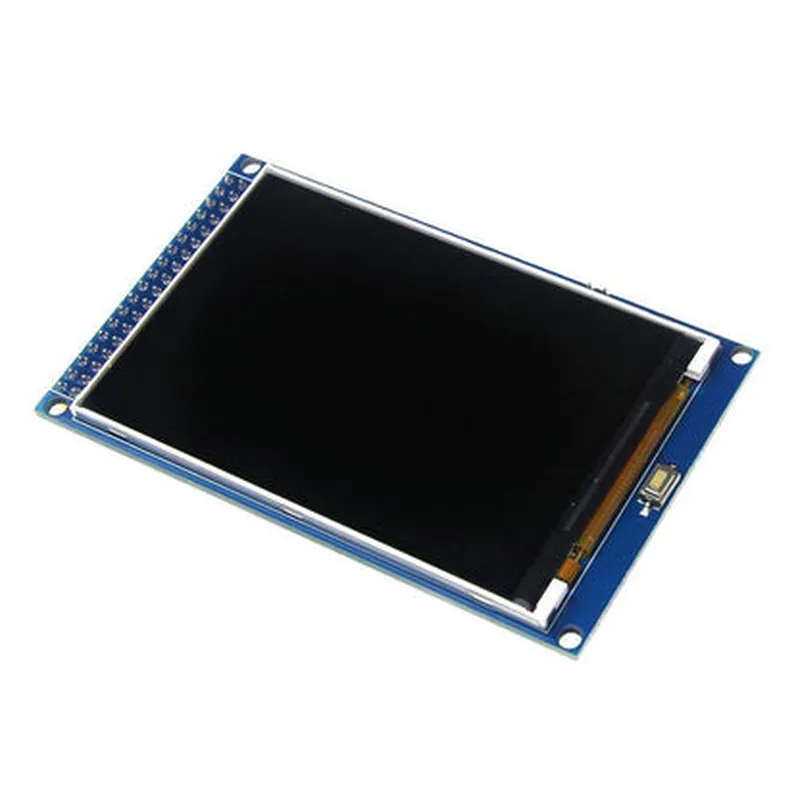

3.2-inch TFT LCD
3.2-inch TFT LCD
240x320 pixels
| 4 | 3 |
8-bit parallel
The shield is equipped with an ST7735R display controller, which provides a simple and efficient way to control the display.
Designed to be compatible with most Arduino boards, including Arduino Uno, Arduino Mega, and Arduino Due.
The shield can be powered directly from the Arduino board or through an external power source (5V).
The shield provides a standard Arduino header, allowing for easy connection to the Arduino board.
Built-in resistive touchscreen controller (optional)
Supports multiple display modes, including landscape and portrait orientations
Supports various fonts, graphics, and image formats
55mm
35mm
20mm
Operating Conditions
0C to 50C
-20C to 80C
5% to 95% RH (non-condensing)
Software Support
The Arduino 3.2in TFT LCD Display Shield is supported by the Arduino Integrated Development Environment (IDE) and various libraries, including the Arduino TFT library, which provides an intuitive API for controlling the display.
Applications
| The Arduino 3.2in TFT LCD Display Shield is suitable for a wide range of applications, including |
IoT projects requiring visual feedback, such as temperature monitoring, humidity monitoring, or air quality monitoring
Home automation systems, such as thermostat controls, lighting systems, or security systems
Robotics and autonomous systems, such as robotic arms, robotic platforms, or autonomous vehicles
Wearable devices, such as smartwatches, fitness trackers, or health monitoring devices
Industrial control systems, such as process monitoring, machine control, or data acquisition systems
By combining the Arduino 3.2in TFT LCD Display Shield with an Arduino board, developers can create a wide range of innovative and interactive projects that leverage the power of visual feedback and intuitive user interfaces.
Arduino 3.2in TFT LCD Display Shield DocumentationOverviewThe Arduino 3.2in TFT LCD Display Shield is a versatile display module designed for use with Arduino boards. It features a 3.2-inch color TFT LCD display with a resolution of 240x320 pixels, making it ideal for a wide range of projects that require a graphical user interface. This shield is compatible with most Arduino boards, including the Uno, Duemilanove, and Mega.Technical SpecificationsDisplay Type: 3.2-inch Color TFT LCD
Resolution: 240x320 pixels
Interface: SPI (Serial Peripheral Interface)
Power Supply: 5V
Dimensions: 54.5mm x 84.5mmGetting StartedTo use the Arduino 3.2in TFT LCD Display Shield, you'll need:1. An Arduino board (e.g., Uno, Duemilanove, or Mega)
2. The Arduino 3.2in TFT LCD Display Shield
3. A micro-USB cable for programming the Arduino board
4. The TFTLCD library (available on the Arduino Library page)Code Examples### Example 1: Displaying Text and GraphicsThis example demonstrates how to display text and graphics on the TFT LCD display using the TFTLCD library.```c++
#include <TFTLCD.h>TFT_LCD tft = TFT_LCD();void setup() {
tft.begin(); // Initialize the TFT LCD display
tft.setTextSize(2); // Set the text size to 2
tft.setTextColor(TFT_WHITE, TFT_BLACK); // Set the text color to white on a black background
tft.fillScreen(TFT_BLACK); // Clear the screen with a black background
}void loop() {
tft.setCursor(0, 0); // Set the cursor to the top-left corner
tft.println("Hello, World!"); // Print a message on the display
// Draw a red rectangle
tft.fillRect(10, 20, 40, 20, TFT_RED);
delay(1000);
// Clear the screen and draw a blue circle
tft.fillScreen(TFT_BLACK);
tft.fillCircle(60, 60, 20, TFT_BLUE);
delay(1000);
}
```### Example 2: Creating a Simple GUI with ButtonsThis example showcases how to create a simple graphical user interface (GUI) with buttons using the TFTLCD library.```c++
#include <TFTLCD.h>TFT_LCD tft = TFT_LCD();
int buttonState = 0;void setup() {
tft.begin(); // Initialize the TFT LCD display
tft.setTextSize(2); // Set the text size to 2
tft.setTextColor(TFT_WHITE, TFT_BLACK); // Set the text color to white on a black background
tft.fillScreen(TFT_BLACK); // Clear the screen with a black background
// Draw three buttons
tft.drawRect(10, 20, 40, 20, TFT_WHITE); // Button 1
tft.drawRect(60, 20, 40, 20, TFT_WHITE); // Button 2
tft.drawRect(110, 20, 40, 20, TFT_WHITE); // Button 3
}void loop() {
// Read the state of a button (e.g., using a digital input pin)
buttonState = digitalRead(2);
if (buttonState == HIGH) {
// Handle button press event
tft.fillRect(10, 20, 40, 20, TFT_RED); // Highlight Button 1
delay(500);
tft.fillRect(10, 20, 40, 20, TFT_WHITE); // Reset Button 1
}
// Repeat for other buttons...
}
```Notes and ReferencesThe TFTLCD library provides an extensive range of functions for drawing shapes, text, and images on the display.
For more information on the TFTLCD library, refer to the official Arduino documentation and example code.
When using the Arduino 3.2in TFT LCD Display Shield, ensure that the display is properly connected to the Arduino board and that the TFTLCD library is installed.By following these examples and familiarizing yourself with the TFTLCD library, you can unlock the full potential of the Arduino 3.2in TFT LCD Display Shield and create a wide range of innovative projects.
