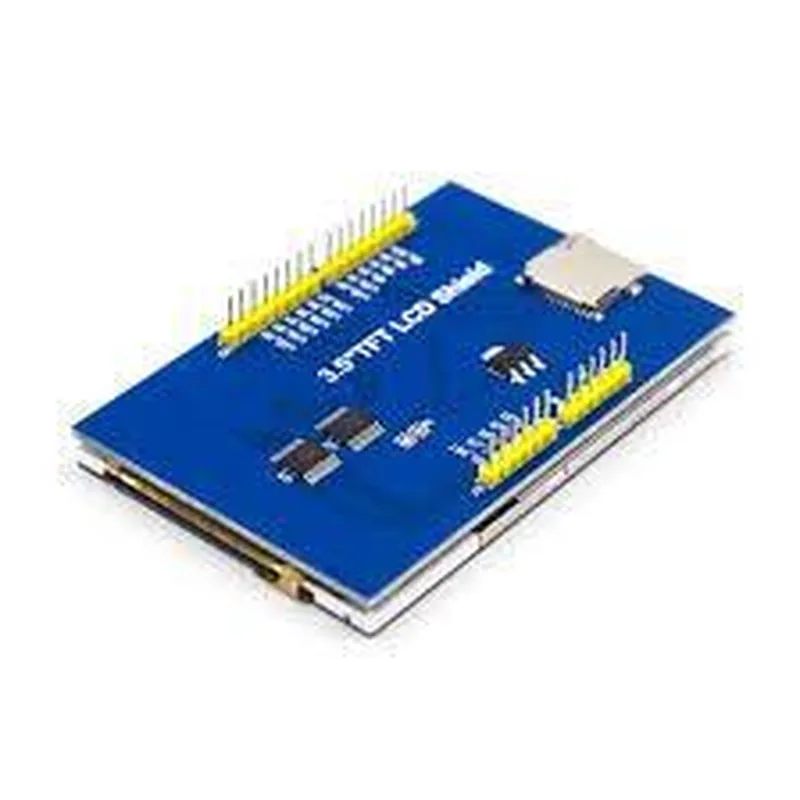

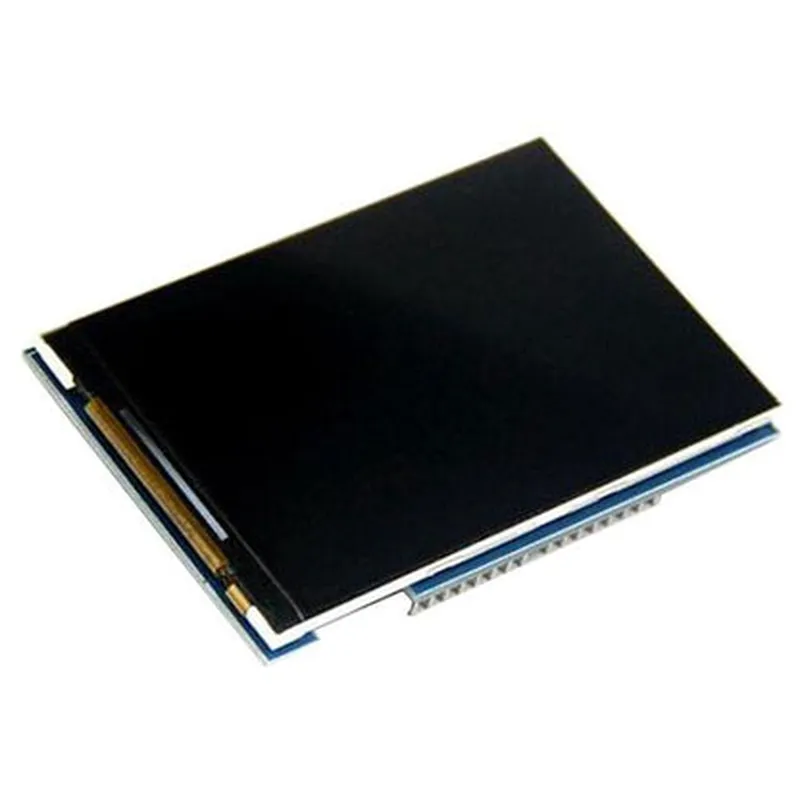

3.5in TFT LCD Shield for Arduino

Buy Now on Stufin

Component Name

3.5in TFT LCD Shield for Arduino

Overview

The 3.5in TFT LCD Shield for Arduino is a versatile and compact display module designed specifically for use with Arduino boards. This shield provides a high-quality, 3.5-inch TFT LCD display with a resolution of 320x480 pixels, making it an ideal solution for a wide range of IoT projects.

Functionality

  • Displaying sensor data, such as temperature, humidity, and pressure readings.
  • Creating interactive menus and interfaces for user input.
  • Visualizing data, such as charts, graphs, and plots.
  • Displaying images, videos, and animations.
  • Providing a user interface for IoT applications, such as smart home devices, robots, and automation systems.
The 3.5in TFT LCD Shield for Arduino is designed to provide a user-friendly interface for Arduino-based projects. It allows users to create interactive displays, visualizations, and user interfaces for their projects, such as

Key Features

  • High-Resolution Display: 3.5-inch TFT LCD display with a resolution of 320x480 pixels, providing clear and vibrant visuals.
  • Arduino Compatibility: Designed specifically for use with Arduino boards, including Uno, Mega, and Due.
  • Onboard SD Card Slot: Supports SD cards up to 2GB, allowing for storage and playback of images, videos, and audio files.
  • 5-Wire Resistive Touchscreen: Supports touch input, enabling users to interact with the display using a stylus or finger.
  • 16-Bit Color Depth: Displays 65,536 colors, providing a high-quality and vibrant visual experience.
  • Low Power Consumption: Designed for low power consumption, making it suitable for battery-powered IoT projects.
  • Easy to Use: Comes with a comprehensive library and example code, making it easy to integrate and program.
  • Compact Design: Shield form factor ensures easy mounting and integration with Arduino boards.

Display Size

3.5 inches

Resolution

320x480 pixels

Display Type

TFT LCD

Color Depth

16-bit

Touchscreen

5-wire resistive

SD Card Slot

Supports up to 2GB SD cards

Interface

Arduino-compatible shield interface

Power Consumption

Low power consumption (mA)

Operating Temperature

-20C to 70C

Storage Temperature

-30C to 80C

Interface and Pinouts

The shield connects to the Arduino board using the standard shield interface, with the following pinouts

Digital Pins

D0-D13

Analog Pins

A0-A5

Power Pins

5V, GND

Example Applications

  • IoT dashboards and monitoring systems
  • Interactive kiosks and displays
  • Robotics and automation interfaces
  • Home automation systems
  • Wearable devices and smart accessories

Conclusion

The 3.5in TFT LCD Shield for Arduino is a versatile and easy-to-use display module that provides a high-quality user interface for Arduino-based IoT projects. Its compact design, low power consumption, and comprehensive library make it an ideal solution for a wide range of applications.

Pin Configuration

  • 3.5in TFT LCD Shield for Arduino Pinout Guide
  • The 3.5in TFT LCD Shield for Arduino is a versatile display module designed to seamlessly integrate with Arduino boards. This shield features a 3.5-inch TFT LCD display with a resolution of 320x480 pixels, making it ideal for various IoT projects. In this documentation, we will delve into the pinout of the shield, explaining each pin's function and connection guide.
  • Pinout Structure:
  • The 3.5in TFT LCD Shield for Arduino has a total of 26 pins, divided into three main categories: Power, Digital, and Analog.
  • ### Power Pins (6)
  • 1. VIN (5V): Input power pin for the shield. Connect to the 5V output of your Arduino board or an external power source.
  • 2. GND: Ground pin. Connect to the GND pin of your Arduino board or the ground of your power source.
  • 3. VCC (3.3V): Output power pin for the LCD display. Do not connect to an external power source; instead, use it to power other 3.3V devices if needed.
  • 4. IOVCC: Output power pin for the LCD display's I/O lines. Typically connected to the 3.3V output of your Arduino board.
  • 5. LED+: Anode pin for the backlight LEDs. Connect to a 5V or 3.3V power source through a series resistor (e.g., 100) to control the backlight brightness.
  • 6. LED-: Cathode pin for the backlight LEDs. Connect to GND.
  • ### Digital Pins (14)
  • 1. D0 (RS): Register Select pin for the LCD display. Connect to a digital pin on your Arduino board (e.g., D2).
  • 2. D1 (R/W): Read/Write pin for the LCD display. Connect to a digital pin on your Arduino board (e.g., D3).
  • 3. D2 (E): Enable pin for the LCD display. Connect to a digital pin on your Arduino board (e.g., D4).
  • 4. D3 (DB0): Data bus pin 0 for the LCD display. Connect to a digital pin on your Arduino board (e.g., D5).
  • 5. D4 (DB1): Data bus pin 1 for the LCD display. Connect to a digital pin on your Arduino board (e.g., D6).
  • 6. D5 (DB2): Data bus pin 2 for the LCD display. Connect to a digital pin on your Arduino board (e.g., D7).
  • 7. D6 (DB3): Data bus pin 3 for the LCD display. Connect to a digital pin on your Arduino board (e.g., D8).
  • 8. D7 (DB4): Data bus pin 4 for the LCD display. Connect to a digital pin on your Arduino board (e.g., D9).
  • 9. D8 (DB5): Data bus pin 5 for the LCD display. Connect to a digital pin on your Arduino board (e.g., D10).
  • 10. D9 (DB6): Data bus pin 6 for the LCD display. Connect to a digital pin on your Arduino board (e.g., D11).
  • 11. D10 (DB7): Data bus pin 7 for the LCD display. Connect to a digital pin on your Arduino board (e.g., D12).
  • 12. D11 (CS): Chip Select pin for the LCD display. Connect to a digital pin on your Arduino board (e.g., D13).
  • 13. D12 (RST): Reset pin for the LCD display. Connect to a digital pin on your Arduino board (e.g., D14) or a push-button to reset the display.
  • 14. D13 (INT): Interrupt pin for the LCD display. Typically not used and can be left disconnected.
  • ### Analog Pins (6)
  • 1. A0: Analog input pin for the touchscreen controller. Connect to an analog pin on your Arduino board (e.g., A0) if you're using the touchscreen functionality.
  • 2. A1: Analog input pin for the touchscreen controller. Connect to an analog pin on your Arduino board (e.g., A1) if you're using the touchscreen functionality.
  • 3. A2: Analog input pin for the touchscreen controller. Connect to an analog pin on your Arduino board (e.g., A2) if you're using the touchscreen functionality.
  • 4. A3: Analog input pin for the touchscreen controller. Connect to an analog pin on your Arduino board (e.g., A3) if you're using the touchscreen functionality.
  • 5. A4: Analog input pin for the touchscreen controller. Connect to an analog pin on your Arduino board (e.g., A4) if you're using the touchscreen functionality.
  • 6. A5: Analog input pin for the touchscreen controller. Connect to an analog pin on your Arduino board (e.g., A5) if you're using the touchscreen functionality.
  • Connection Guide:
  • 1. Connect the VIN pin to the 5V output of your Arduino board or an external power source.
  • 2. Connect the GND pin to the GND pin of your Arduino board or the ground of your power source.
  • 3. Connect the VCC pin to the 3.3V output of your Arduino board or a 3.3V power source.
  • 4. Connect the IOVCC pin to the 3.3V output of your Arduino board.
  • 5. Connect the LED+ pin to a 5V or 3.3V power source through a series resistor (e.g., 100).
  • 6. Connect the LED- pin to GND.
  • 7. Connect the digital pins (D0-D13) to corresponding digital pins on your Arduino board.
  • 8. If using the touchscreen functionality, connect the analog pins (A0-A5) to corresponding analog pins on your Arduino board.
  • Important Notes:
  • Make sure to connect the power pins correctly to avoid damage to the shield or your Arduino board.
  • Use a level shifter if your Arduino board operates at 5V and you need to connect the digital pins to 3.3V devices.
  • Refer to the datasheet and example code provided with the shield for proper initialization and usage of the LCD display and touchscreen controller.
  • By following this pinout guide, you'll be able to successfully connect and utilize the 3.5in TFT LCD Shield for Arduino in your IoT projects.

Code Examples

3.5in TFT LCD Shield for Arduino Documentation
Overview
The 3.5in TFT LCD Shield for Arduino is a versatile display module designed specifically for Arduino boards. This shield features a 3.5-inch TFT LCD display with a resolution of 320x480 pixels, making it ideal for a wide range of IoT projects that require a graphical user interface. The shield is compatible with most Arduino boards, including the Uno, Duemilanove, and Mega.
Hardware Features
3.5-inch TFT LCD display with 320x480 pixels resolution
 16-bit color depth
 Support for Arduino Uno, Duemilanove, and Mega boards
 SD card slot for storing images and data
 5-pin touch screen interface
 5V power supply
Software Installation
To use the 3.5in TFT LCD Shield with your Arduino board, you'll need to install the following libraries:
`SPI` library (built-in with Arduino IDE)
 `TFT` library (download and install from the Arduino Library section)
 `SD` library (built-in with Arduino IDE)
Code Examples
### Example 1: Displaying a Simple Image
In this example, we'll demonstrate how to display a simple image on the TFT LCD screen using the SD card slot.
```c++
#include <SPI.h>
#include <TFT.h>
#include <SD.h>
#define SD_CS 5 // SD card chip select pin
#define TFT_CS 10 // TFT LCD chip select pin
#define TFT_RST 9 // TFT LCD reset pin
TFT tft = TFT(TFT_CS, TFT_RST);
void setup() {
  // Initialize the SD card
  pinMode(SD_CS, OUTPUT);
  digitalWrite(SD_CS, HIGH);
  SD.begin(SD_CS);
// Initialize the TFT LCD
  tft.begin();
  tft.fillScreen(BLACK);
// Load the image from the SD card
  File imageFile = SD.open("image.bmp");
  if (!imageFile) {
    Serial.println("Error: unable to open image file");
    return;
  }
// Display the image on the TFT LCD
  tft.drawImage(imageFile, 0, 0);
  imageFile.close();
}
void loop() {
  // Nothing to do here, the image is already displayed
}
```
### Example 2: Creating a Simple GUI with Touch Input
In this example, we'll demonstrate how to create a simple GUI with touch input using the 5-pin touch screen interface.
```c++
#include <SPI.h>
#include <TFT.h>
#include <TouchScreen.h>
#define TFT_CS 10 // TFT LCD chip select pin
#define TFT_RST 9 // TFT LCD reset pin
#define YP A3 // Touch screen Y+ pin
#define XM A2 // Touch screen X- pin
#define XP 7 // Touch screen X+ pin
#define YM 6 // Touch screen Y- pin
TFT tft = TFT(TFT_CS, TFT_RST);
TouchScreen ts = TouchScreen(XP, YP, XM, YM);
void setup() {
  // Initialize the TFT LCD
  tft.begin();
  tft.fillScreen(BLACK);
// Draw a simple GUI with two buttons
  tft.drawRect(50, 50, 100, 50, WHITE);
  tft.drawString("Button 1", 60, 60, WHITE);
  tft.drawRect(150, 50, 100, 50, WHITE);
  tft.drawString("Button 2", 160, 60, WHITE);
}
void loop() {
  // Read touch screen input
  TSPoint tp = ts.getPoint();
  pinMode(XM, OUTPUT);
  pinMode(YP, OUTPUT);
if (tp.z > 50) {
    // Button 1 pressed
    if (tp.x > 50 && tp.x < 150 && tp.y > 50 && tp.y < 100) {
      Serial.println("Button 1 pressed");
    }
    // Button 2 pressed
    else if (tp.x > 150 && tp.x < 250 && tp.y > 50 && tp.y < 100) {
      Serial.println("Button 2 pressed");
    }
  }
}
```
### Example 3: Displaying Sensor Data in Real-Time
In this example, we'll demonstrate how to display sensor data in real-time on the TFT LCD screen using an Arduino sensor library.
```c++
#include <SPI.h>
#include <TFT.h>
#include <DHT.h>
#define DHT_PIN 2 // DHT11 temperature and humidity sensor pin
#define TFT_CS 10 // TFT LCD chip select pin
#define TFT_RST 9 // TFT LCD reset pin
DHT dht(DHT_PIN, DHT11);
TFT tft = TFT(TFT_CS, TFT_RST);
void setup() {
  // Initialize the TFT LCD
  tft.begin();
  tft.fillScreen(BLACK);
// Initialize the DHT sensor
  dht.begin();
}
void loop() {
  // Read temperature and humidity data from the DHT sensor
  float temperature = dht.readTemperature();
  float humidity = dht.readHumidity();
// Display the sensor data on the TFT LCD
  tft.setCursor(10, 10);
  tft.setTextColor(WHITE);
  tft.setTextSize(2);
  tft.print("Temperature: ");
  tft.print(temperature);
  tft.println(" C");
tft.setCursor(10, 30);
  tft.print("Humidity: ");
  tft.print(humidity);
  tft.println(" %");
delay(1000);
}
```
These examples demonstrate the versatility of the 3.5in TFT LCD Shield for Arduino, from displaying simple images to creating complex GUIs with touch input and real-time sensor data visualization.
