5mm Common Anode RGB LED 4Pin Through Hole White Diffused LED (Pack of 10) Documentation

Name

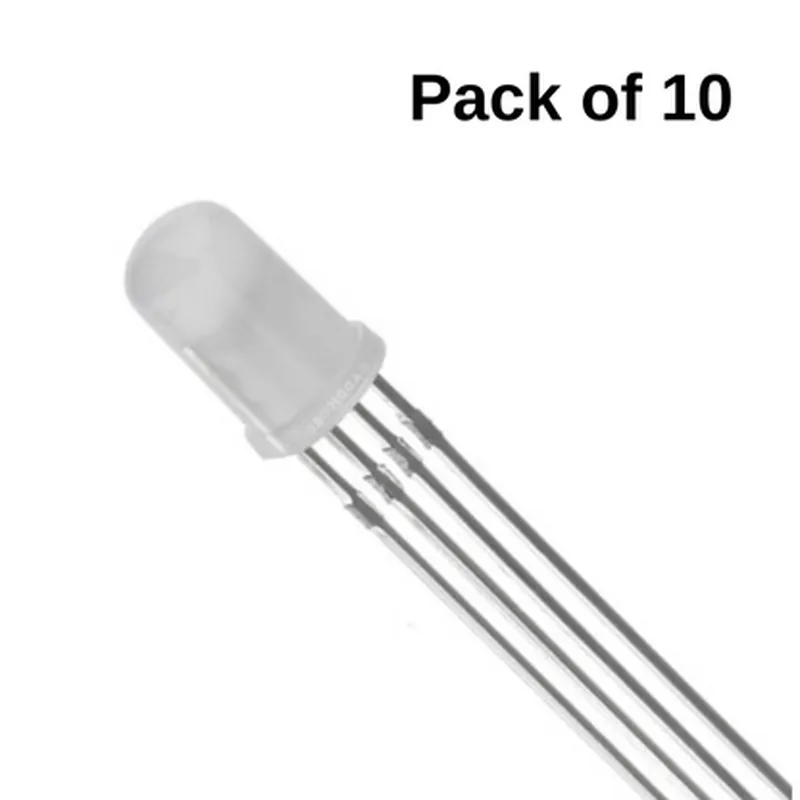

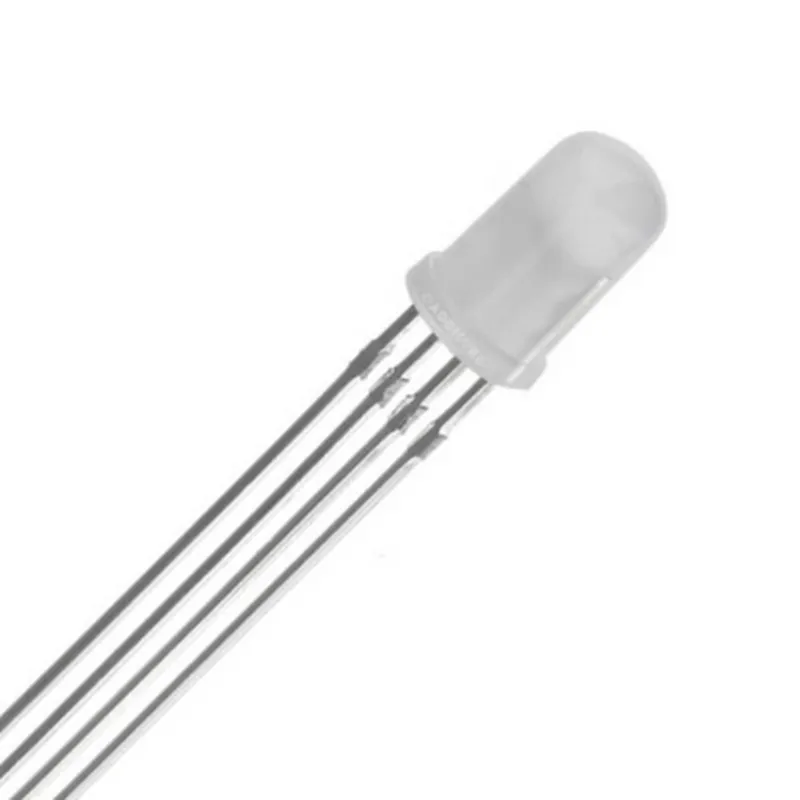

5mm Common Anode RGB LED 4Pin Through Hole White Diffused LED (Pack of 10)

Description

The 5mm Common Anode RGB LED is a high-brightness, multi-color Light Emitting Diode (LED) designed for use in a wide range of applications, including IoT projects, robotics, and custom lighting systems. This LED is packaged in a pack of 10 units, making it an ideal choice for prototyping and small-scale production.

Functionality

The 5mm Common Anode RGB LED is a through-hole LED component that emits light in three primary colors

Red, Green, and Blue (RGB). The LED has a common anode configuration, meaning that the positive leg is shared among all three color channels. By applying different voltage levels to the individual color pins, the LED can produce a wide range of colors and shades.

Key Features

Package Details:

Package type

Through-hole

Package size

5mm (diameter) x 3.5mm (height)

Lead spacing

2.5mm

Pin count

4

Optical Characteristics:

Lens type

White diffused

Viewing angle

120

Luminous intensity

Electrical Characteristics:

+ Red	200-250 mcd (millicandelas)
+ Green	400-500 mcd
+ Blue	100-150 mcd

Operating voltage

1.8-2.2V (per color channel)

Operating current

20-30mA (per color channel)

Maximum forward current

30mA

Reverse voltage

5V

Physical Characteristics:

Material

Plastic

Color

White diffused

Operating temperature range

-25C to +85C

Storage temperature range

-40C to +100C

Other Features:

High-brightness LED for increased visibility

Common anode configuration for simplified circuit design

Through-hole design for easy installation and assembly

Packaged in a set of 10 units for convenience and cost-effectiveness

Applications

The 5mm Common Anode RGB LED is suitable for a wide range of applications, including

IoT projects and prototypes

Robotics and automation systems

Custom lighting systems and indicators

LED signage and displays

Audio and visual effects devices

Precautions

When handling and using the 5mm Common Anode RGB LED, please observe the following precautions

Handle the LED by the edges to prevent electrical shock and damage

Avoid exposing the LED to excessive heat, moisture, or vibration

Use the LED within the recommended operating voltage and current ranges

Ensure proper soldering and assembly techniques to prevent damage and electrical shorts

Pin Configuration

Component Documentation: 5mm Common Anode RGB LED 4Pin Through Hole White Diffused LED
Pin Description:
The 5mm Common Anode RGB LED has 4 pins, each with a specific function. Here's a detailed description of each pin:
Pin 1: Anode (Vcc)
Function: Positive voltage supply for all three colors (Red, Green, and Blue)
Connection: Connect to the positive voltage supply (Vcc) of your circuit, typically 5V or 3.3V
Color Code: Usually marked with a longer lead or a flat side on the LED package
Pin 2: Red Cathode
Function: Negative voltage supply for the Red color
Connection: Connect to the digital output of your microcontroller or switching circuit that controls the Red color
Color Code: Usually marked with a red or orange wire
Pin 3: Green Cathode
Function: Negative voltage supply for the Green color
Connection: Connect to the digital output of your microcontroller or switching circuit that controls the Green color
Color Code: Usually marked with a green wire
Pin 4: Blue Cathode
Function: Negative voltage supply for the Blue color
Connection: Connect to the digital output of your microcontroller or switching circuit that controls the Blue color
Color Code: Usually marked with a blue wire
Connection Structure:
To connect the 5mm Common Anode RGB LED:
1. Vcc (Anode) Pin 1:
Connect to the positive voltage supply (Vcc) of your circuit, typically 5V or 3.3V.
Use a resistor (recommended value: 1k) to limit the current to the LED.
2. Red Cathode Pin 2:
Connect to a digital output of your microcontroller or a switching circuit that controls the Red color.
Use a transistor or a MOSFET to switch the Red color on and off, if required.
3. Green Cathode Pin 3:
Connect to a digital output of your microcontroller or a switching circuit that controls the Green color.
Use a transistor or a MOSFET to switch the Green color on and off, if required.
4. Blue Cathode Pin 4:
Connect to a digital output of your microcontroller or a switching circuit that controls the Blue color.
Use a transistor or a MOSFET to switch the Blue color on and off, if required.
Important Notes:
Ensure the voltage supply and current ratings of the LED are within the recommended specifications to avoid damage.
Use a suitable current-limiting resistor for each color to prevent overheating and ensure stable operation.
When using a microcontroller, ensure the digital output pins are configured correctly to control the individual colors.
By following this documentation, you should be able to properly connect and control the 5mm Common Anode RGB LED in your IoT project.

Code Examples

Component Documentation: 5mm Common Anode RGB LED 4Pin Through Hole White Diffused LED

Overview

The 5mm Common Anode RGB LED is a through-hole component with a white diffused lens, suitable for a wide range of applications, including IoT projects, robotics, and DIY electronics. This LED has a common anode configuration, meaning that the positive leg is shared among all three color channels (red, green, and blue). This documentation provides an overview of the component's characteristics, pinout, and examples of how to use it in various contexts.

Component Characteristics

Package: 4-pin through-hole package
 LED Type: RGB (Red, Green, Blue)
 Common Anode: Shared positive leg among all three color channels
 Diffused Lens: White diffused lens for uniform light distribution
 Size: 5mm diameter
 Operating Voltage: 1.8V - 2.2V (typically 2V)
 Maximum Current: 20mA per channel
 Viewing Angle: 120 degrees
 Luminous Intensity: 1000-1500 mcd (millicandela) per channel

Pinout

| Pin | Function |
| --- | --- |
| 1 | Anode (Positive) |
| 2 | Red Cathode (Negative) |
| 3 | Green Cathode (Negative) |
| 4 | Blue Cathode (Negative) |

Code Examples

### Example 1: Basic RGB LED Control using Arduino

In this example, we'll demonstrate how to control the RGB LED using an Arduino board. We'll connect the LED to digital pins 9, 10, and 11, and use the `analogWrite()` function to set the brightness of each color channel.
```cpp
const int redPin = 9;    // Red cathode (Pin 2)
const int greenPin = 10; // Green cathode (Pin 3)
const int bluePin = 11;  // Blue cathode (Pin 4)

void setup() {
  pinMode(redPin, OUTPUT);
  pinMode(greenPin, OUTPUT);
  pinMode(bluePin, OUTPUT);
}

void loop() {
  // Set RGB values from 0 (off) to 255 (maximum brightness)
  analogWrite(redPin, 128);  // Half-bright red
  analogWrite(greenPin, 255); // Full-bright green
  analogWrite(bluePin, 0);   // Off blue

delay(1000); // Wait 1 second

// Change the RGB values
  analogWrite(redPin, 0);
  analogWrite(greenPin, 128);
  analogWrite(bluePin, 255);

delay(1000); // Wait 1 second
}
```
### Example 2: RGB LED Color Fading using Raspberry Pi (Python)

In this example, we'll demonstrate how to control the RGB LED using a Raspberry Pi and Python. We'll use the RPi.GPIO library to control the GPIO pins, and create a color-fading effect by incrementing the brightness of each color channel.
```python
import RPi.GPIO as GPIO
import time

# Set up GPIO pins
GPIO.setmode(GPIO.BCM)

redPin = 17
greenPin = 23
bluePin = 24

GPIO.setup(redPin, GPIO.OUT)
GPIO.setup(greenPin, GPIO.OUT)
GPIO.setup(bluePin, GPIO.OUT)

# Define RGB color values (0-255)
r, g, b = 0, 0, 0

while True:
  # Fade red
  for i in range(256):
    GPIO_output(redPin, i)
    time.sleep(0.01)

# Fade green
  for i in range(256):
    GPIO_output(greenPin, i)
    time.sleep(0.01)

# Fade blue
  for i in range(256):
    GPIO_output(bluePin, i)
    time.sleep(0.01)
```
These examples demonstrate the basic principles of controlling an RGB LED using an Arduino board and a Raspberry Pi, respectively. You can modify the code to create various color effects, patterns, and animations.
