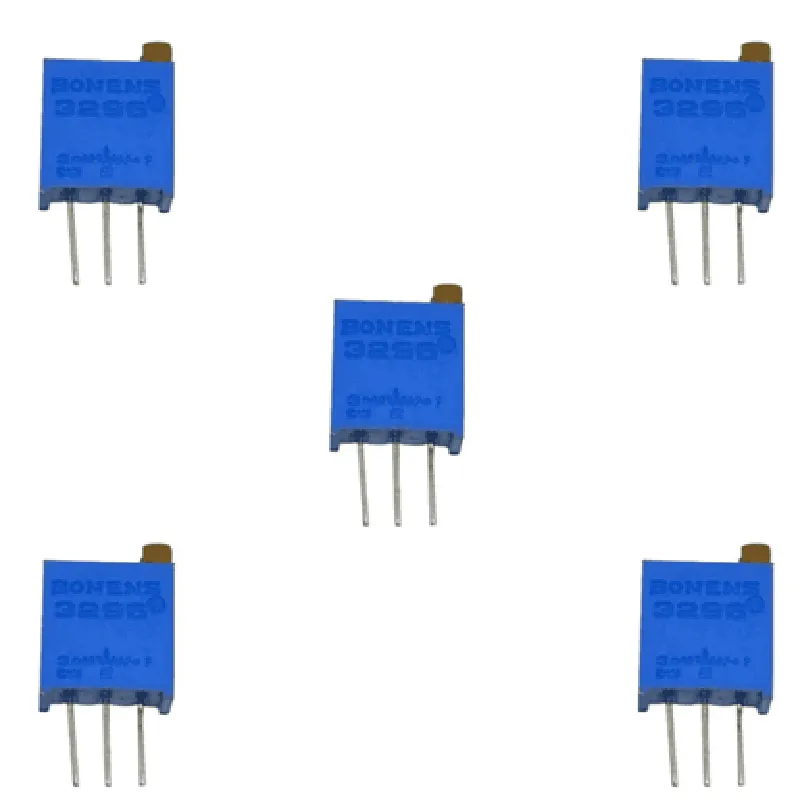

2M 3296W Trimpot (Pack of 5)

Overview

The 2M 3296W Trimpot is a type of potentiometer designed for precision trimming and fine-tuning of electrical circuits. This component is part of a pack of 5, ideal for prototyping, development, and production purposes. The 2M 3296W Trimpot offers a compact, reliable, and accurate solution for adjusting resistance values in a wide range of applications.

Functionality

A potentiometer, also known as a variable resistor, is a three-terminal device that allows the user to adjust the resistance between two of its terminals. The 2M 3296W Trimpot functions as a variable voltage divider, enabling the attenuation of a signal or the adjustment of a voltage level. The device can be used to

Adjust the gain of an amplifier or the frequency of an oscillator

Control the brightness of an LED or the volume of an audio circuit

Provide a reference voltage for analog-to-digital converters (ADCs)

Create a voltage-controlled circuit or a feedback loop

Key Features

Compact Size: The 2M 3296W Trimpot is designed to be compact, making it ideal for use in space-constrained applications.
High-Precision Adjustment: The trimpot features a precision screwdriver-adjustable mechanism, allowing for fine-tuning of the resistance value.
Multi-Turn Operation: The device allows for multiple turns (2 turns in this case) to achieve a high degree of precision and accuracy.
Linear Taper: The resistance value changes linearly with the rotation of the shaft, ensuring a predictable and consistent response.
Wide Operating Temperature Range: The 2M 3296W Trimpot can operate reliably in temperatures ranging from -25C to 85C.
Reliable Construction: The component features a durable, wear-resistant construction with a metal shaft and a robust plastic body.
Pack of 5: The 2M 3296W Trimpot is available in a pack of 5, providing flexibility and convenience for prototyping and production.

Electrical Characteristics

Resistance Value

296 (5%)

Power Rating

0.5W

Insulation Resistance

100M

Dielectric Strength

500V AC/minute

Operating Temperature Range

-25C to 85C

Storage Temperature Range

-40C to 125C

Mechanical Characteristics

Dimensions

10.5mm (L) x 5.5mm (W) x 3.2mm (H)

Shaft Diameter

2.5mm

Shaft Length

12.5mm

Weight

approximately 1.5g per unit

Certifications and Compliance

RoHS Compliant

The 2M 3296W Trimpot is lead-free and complies with the EU's Restriction of Hazardous Substances (RoHS) directive.

CE Certified

The component meets the safety requirements of the EU's Conformit Europene (CE) mark.

Application Areas

The 2M 3296W Trimpot is suitable for a wide range of applications, including

Audio equipment and circuits

Industrial control systems

Medical devices and equipment

Aerospace and defense systems

Automotive electronics

Consumer electronics and appliances

Packaging and Ordering Information

The 2M 3296W Trimpot is available in a pack of 5 units, packaged in a resealable plastic bag or a cardboard tube. To order, please specify the part number "2M 3296W Trimpot (Pack of 5)".

Pin Configuration

Component Documentation: 2M 3296W Trimpot (Pack of 5)
Overview
The 2M 3296W Trimpot is a multi-turn trimmer potentiometer, commonly used in electronic circuits for precise adjustment of resistance values. This documentation provides a detailed explanation of the pins and how to connect them.
Pinout

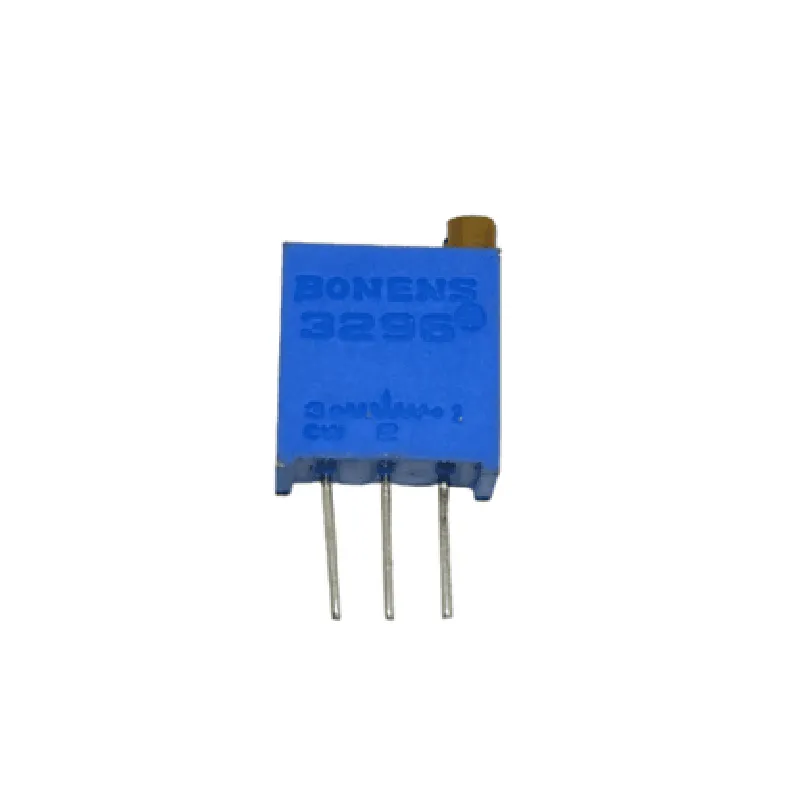

The 2M 3296W Trimpot has three pins, labeled 1, 2, and 3. Here's a breakdown of each pin's function:
Pin 1:
Function: Counter-Clockwise (CCW) Terminal
Description: This pin is connected to one end of the resistive track. When the trimmer is adjusted, the resistance between Pin 1 and Pin 2 changes.
Pin 2:
Function: Wiper Terminal
Description: This pin is connected to the movable wiper contact, which slides along the resistive track as the trimmer is adjusted. The wiper terminal is the output of the potentiometer, providing the adjusted resistance value.
Pin 3:
Function: Clockwise (CW) Terminal
Description: This pin is connected to the other end of the resistive track. When the trimmer is adjusted, the resistance between Pin 3 and Pin 2 changes.
Connection Structure
To connect the 2M 3296W Trimpot, follow this step-by-step guide:
1. Counter-Clockwise (CCW) Terminal (Pin 1):
Connect Pin 1 to the power supply or a fixed reference voltage (e.g., Vcc).
Typically, Pin 1 is connected to a higher voltage or the positive rail of the power supply.
2. Wiper Terminal (Pin 2):
Connect Pin 2 to the output of the circuit, where the adjusted resistance value is required.
This may include a microcontroller's analog input, an op-amp's input, or any other component that requires a variable resistance.
3. Clockwise (CW) Terminal (Pin 3):
Connect Pin 3 to ground or a fixed reference voltage (e.g., GND).
Typically, Pin 3 is connected to a lower voltage or the negative rail of the power supply.
Important Notes:
The trimmer potentiometer should be adjusted using a non-conductive tool (e.g., a plastic or ceramic screwdriver) to avoid damage or electrical shock.
The 2M 3296W Trimpot is a multi-turn trimmer, allowing for fine adjustments of the resistance value.
The component should be handled with care to avoid mechanical damage or misalignment of the wiper contact.
By following this documentation, you should be able to properly connect and utilize the 2M 3296W Trimpot in your electronic projects.

Code Examples

2M 3296W Trimpot (Pack of 5) Documentation

Overview

The 2M 3296W Trimpot is a 2Megohm, 3296W series trimmer potentiometer, commonly used in electronic circuits for precision adjustments. This pack of 5 trim pots is ideal for prototyping, development, and production purposes. The trimmer potentiometer is a three-terminal device with a rotating shaft that varies the resistance between the center terminal and the other two terminals.

Characteristics

Resistance Tolerance: 20%
 Power Rating: 0.5 Watt
 Operating Temperature: -40C to +85C
 Adjustment Torque: 0.4 Ncm
 Rotational Life: 100 cycles

Connecting the Trimpot

The 2M 3296W Trimpot has three terminals:

Center Terminal (CT): The center terminal is the wiper terminal, which connects to the output of the potentiometer.
 Terminal 1 (T1): One of the two fixed terminals, usually connected to the input or reference voltage.
 Terminal 3 (T3): The other fixed terminal, usually connected to ground or a fixed reference point.

Code Examples

### Example 1: Analog Voltage Divider with Arduino

In this example, we'll use the 2M 3296W Trimpot as a voltage divider to control the brightness of an LED.

Hardware

2M 3296W Trimpot
 Arduino Board (e.g., Arduino Uno)
 LED
 Resistor (1k)
 Breadboard and jumper wires

Code
```c
const int potPin = A0;  // Analog input pin for the Trimpot
const int ledPin = 9;  // Digital output pin for the LED

int potValue = 0;  // Variable to store the Trimpot value
int ledBrightness = 0;  // Variable to store the LED brightness

void setup() {
  pinMode(ledPin, OUTPUT);
}

void loop() {
  potValue = analogRead(potPin);  // Read the Trimpot value (0-1023)
  ledBrightness = map(potValue, 0, 1023, 0, 255);  // Map the value to LED brightness (0-255)
  analogWrite(ledPin, ledBrightness);  // Set the LED brightness
  delay(10);
}
```
### Example 2: Audio Volume Control with Raspberry Pi

In this example, we'll use the 2M 3296W Trimpot as a variable resistor to control the volume of an audio signal using a Raspberry Pi.

Hardware

2M 3296W Trimpot
 Raspberry Pi (e.g., Raspberry Pi 4)
 Audio amplifier and speaker
 Breadboard and jumper wires

Code
```python
import RPi.GPIO as GPIO

# Set up the GPIO library
GPIO.setmode(GPIO.BCM)

# Define the Trimpot pin
trim_pot_pin = 17

# Set up the Trimpot pin as an analog input
GPIO.setup(trim_pot_pin, GPIO.IN)

while True:
    # Read the Trimpot value (0-1023)
    trim_pot_value = GPIO.input(trim_pot_pin)

# Calculate the volume based on the Trimpot value
    volume = trim_pot_value / 1023.0

# Set the volume using the `amixer` command
    cmd = f"amixer -D pulse sset Master {volume:.2f}%"
    os.system(cmd)

# Wait for a short period before reading the Trimpot again
    time.sleep(0.1)
```
These examples demonstrate how to use the 2M 3296W Trimpot as a variable resistor in different contexts. The trimmer potentiometer can be used in various applications, such as signal attenuation, voltage regulation, and sensor calibration.
