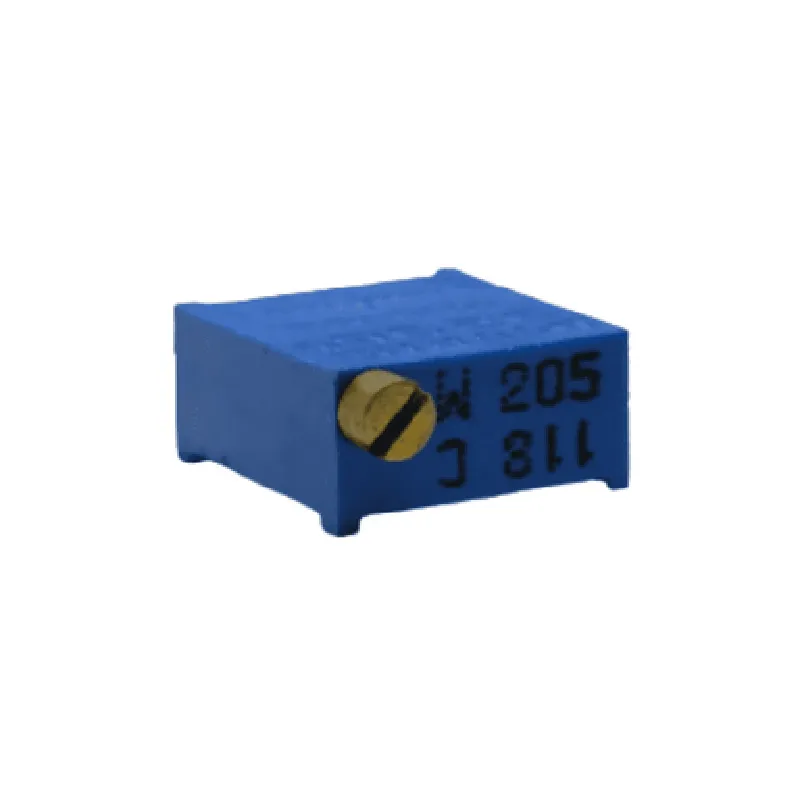

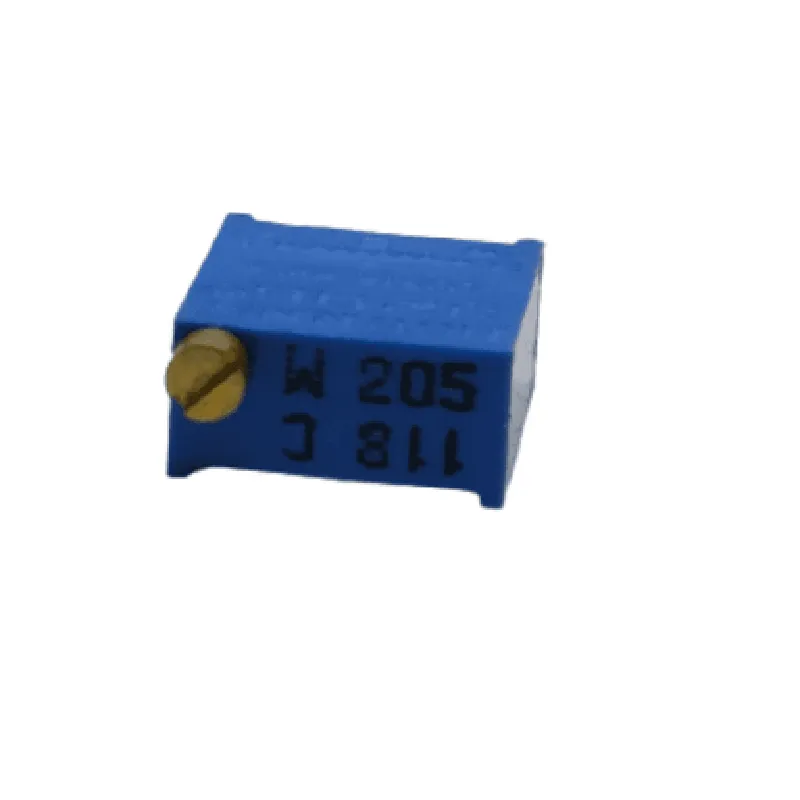

2M 3296W Trimpot(Pack of 5)

Stufin

2M 3296W Trimpot(Pack of 5)

This product is not available in your location yet

Description: 1. The 2M 3296W Trimpot is a variable resistor component available in packs of five. It features a three-terminal design with a dial that allows precise resistance adjustments. 2. Resistance Range: Each trimpot has a continuous resistance range of 0-32.9kΩ, making it suitable for various voltage and current applications in IoT projects. 3. Precision Adjustment: The trimpots come with a fine dial that allows users to make accurate adjustments in small increments, providing precise control over the component's resistance value. 4. Robust Design: These trimmers boast a compact size (16mm x 9mm), low profile, and sturdy construction, which makes them suitable for tight-space applications and long-lasting usage in IoT projects. 5. Versatile Usage: The 2M 3296W Trimpots are extensively used in various IoT applications like voltage regulation, current limiting, potentiometric sensing, and adjusting gain or threshold levels for sensors and actuators. 6. Ease of Integration: The trimmers

View Technical Documentation

Specification	Details
Model Number	2M 3296W
Quantity	Pack of 5
Trimmer Type	Trimpot (Trim Resistor)
Resistance Range	1 kΩ to 10 MΩ (adjustable)
Tolerance	±20%
Temperature Coeff.	±50 ppm/°C
Power Rating	200 mW
Package Type	Through Hole
Lead Spacing	2.54 mm (0.1 in)
Dimensions	13.9 x 6.3 mm
Operating Temp.	-55°C to +125°C
Storage Temp.	-65°C to +150°C
