M5StickC Digital to Analog Convertor Hat MCP4725

M5StickC Digital to Analog Convertor Hat MCP4725 Documentation

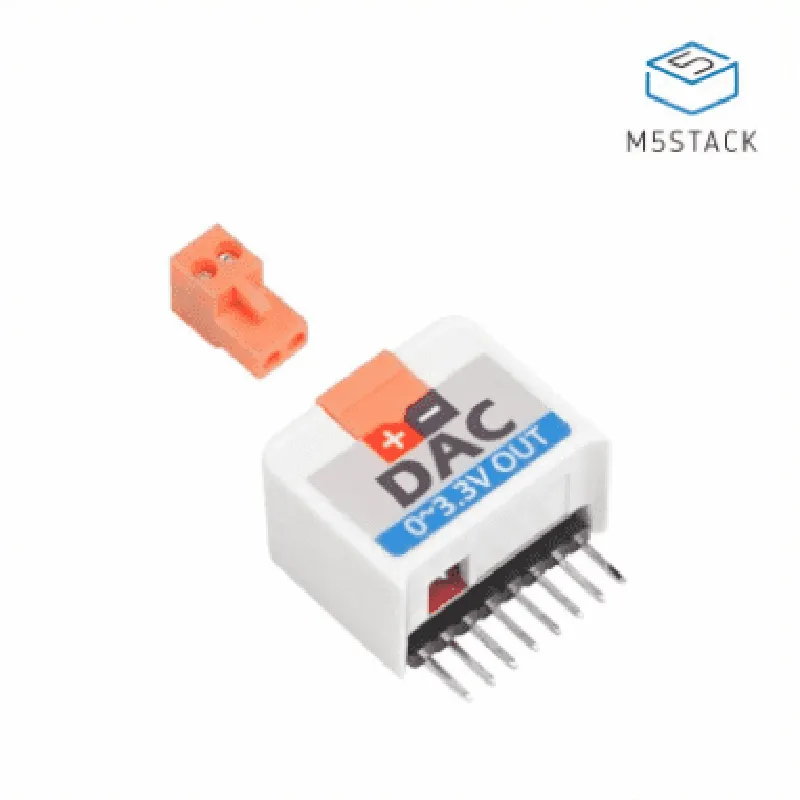

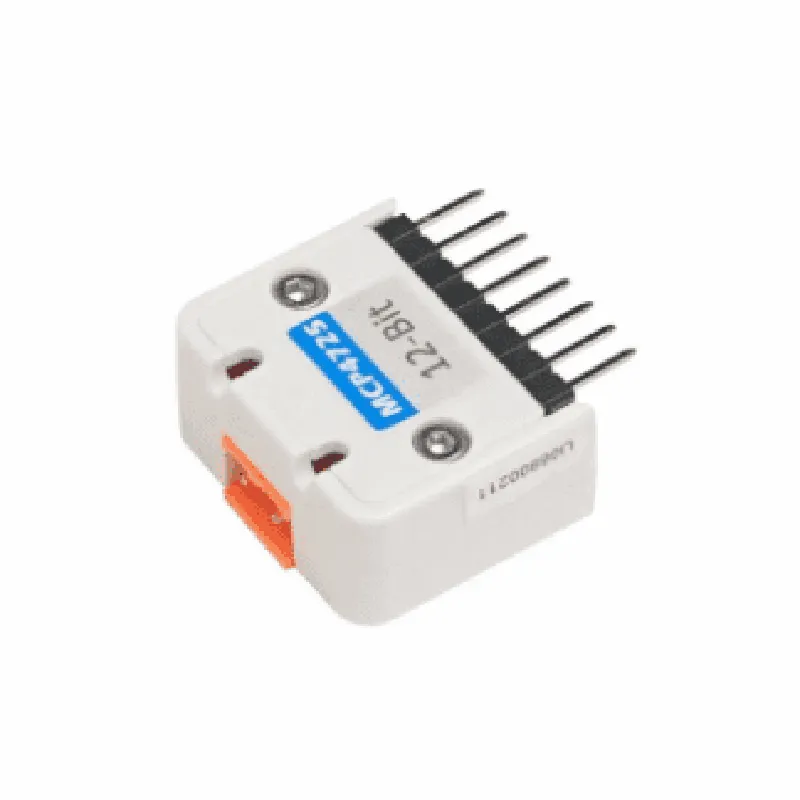

The M5StickC Digital to Analog Convertor Hat MCP4725 is a small, compact module that allows users to convert digital signals from their microcontrollers to analog signals, making it compatible with devices that only accept analog inputs. This module is based on the MCP4725 12-bit Digital-to-Analog Converter (DAC) chip.

Technical Specifications

Resolution: 12-bit
 Output Voltage Range: 0 V to VCC ( Typically 3.3 V or 5 V)
 I2C Interface
 Operating Voltage: 3.3 V to 5 V
 Communication Protocol: I2C

Programming Interface

The M5StickC Digital to Analog Convertor Hat MCP4725 uses the I2C protocol to communicate with the microcontroller. The module has a default I2C address of 0x60, but this can be changed by connecting the ADDR pin to VCC, GND, or leaving it open.

Code Examples

Example 1: Basic Analog Output using Arduino

In this example, we'll demonstrate how to use the M5StickC Digital to Analog Convertor Hat MCP4725 to generate an analog output voltage using an Arduino board.

```c++
#include <Wire.h>

#define DAC_I2C_ADDRESS 0x60

void setup() {
  Wire.begin(); // Initialize I2C
}

void loop() {
  // Set the output voltage to 1.5V (approximately)
  uint16_t outputValue = 2048; // 12-bit value, 0 to 4095
  Wire.beginTransmission(DAC_I2C_ADDRESS);
  Wire.write(0x40); // Write to register 0x40 to set output voltage
  Wire.write(highByte(outputValue));
  Wire.write(lowByte(outputValue));
  Wire.endTransmission();

delay(1000);
}
```

Example 2: Generating a Sine Wave using MicroPython

In this example, we'll demonstrate how to use the M5StickC Digital to Analog Convertor Hat MCP4725 to generate a sine wave using a MicroPython-enabled board, such as the M5StickC.

```python
import machine
import math

dac_i2c = machine.I2C(sda=machine.Pin(21), scl=machine.Pin(22))  # Initialize I2C

while True:
    for i in range(0, 360):
        # Calculate the sine value (0 to 1) and scale it to 12-bit DAC value (0 to 4095)
        output_value = int((math.sin(math.radians(i)) + 1)  2048)
        dac_i2c.writeto(0x60, bytearray([0x40, output_value >> 8, output_value & 0xFF]))
        machine.sleep(0.01)  # 10ms delay
```

Example 3: Controlling a Servo Motor using ESP32

In this example, we'll demonstrate how to use the M5StickC Digital to Analog Convertor Hat MCP4725 to control a servo motor using an ESP32 board.

```c++
#include <WiFi.h>
#include < Wire.h>

#define DAC_I2C_ADDRESS 0x60
#define SERVO_PIN 18  // Servo motor connected to GPIO 18

WiFiClient espClient;
Servo servo;

void setup() {
  Serial.begin(115200);
  Wire.begin(); // Initialize I2C
  servo.attach(SERVO_PIN);
}

void loop() {
  // Set the servo motor to 0 degrees (approximately)
  uint16_t outputValue = 128; // 12-bit value, 0 to 4095, corresponding to 0 degrees
  Wire.beginTransmission(DAC_I2C_ADDRESS);
  Wire.write(0x40); // Write to register 0x40 to set output voltage
  Wire.write(highByte(outputValue));
  Wire.write(lowByte(outputValue));
  Wire.endTransmission();
  servo.write(0);

delay(1000);

// Set the servo motor to 90 degrees (approximately)
  outputValue = 256; // 12-bit value, 0 to 4095, corresponding to 90 degrees
  Wire.beginTransmission(DAC_I2C_ADDRESS);
  Wire.write(0x40); // Write to register 0x40 to set output voltage
  Wire.write(highByte(outputValue));
  Wire.write(lowByte(outputValue));
  Wire.endTransmission();
  servo.write(90);

delay(1000);
}
```

These examples demonstrate how to use the M5StickC Digital to Analog Convertor Hat MCP4725 to generate analog output voltages, creating a sine wave, and controlling a servo motor. The module's I2C interface makes it easy to integrate with popular microcontrollers and single-board computers.
