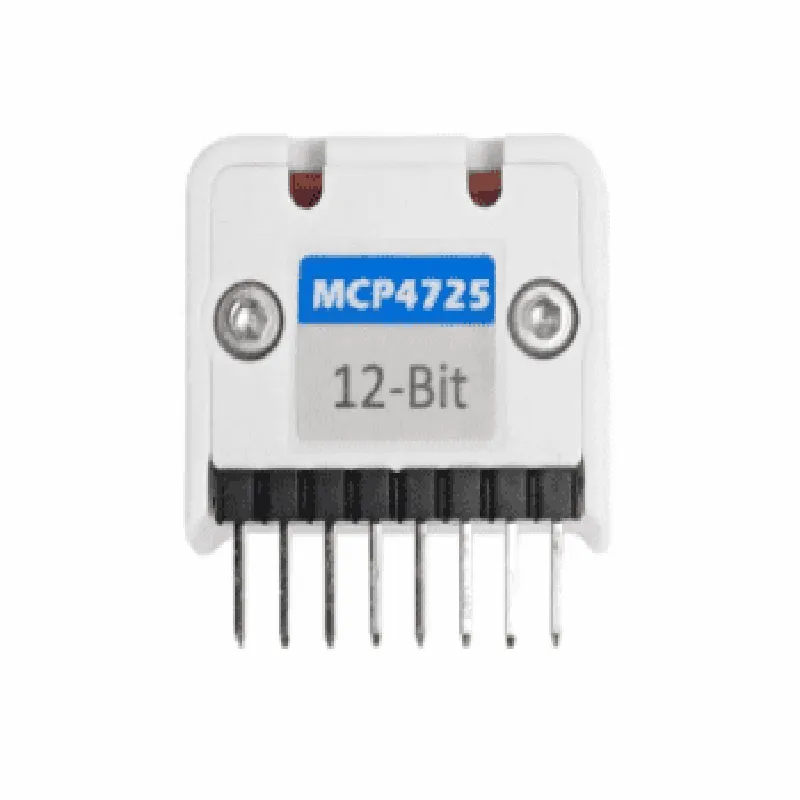

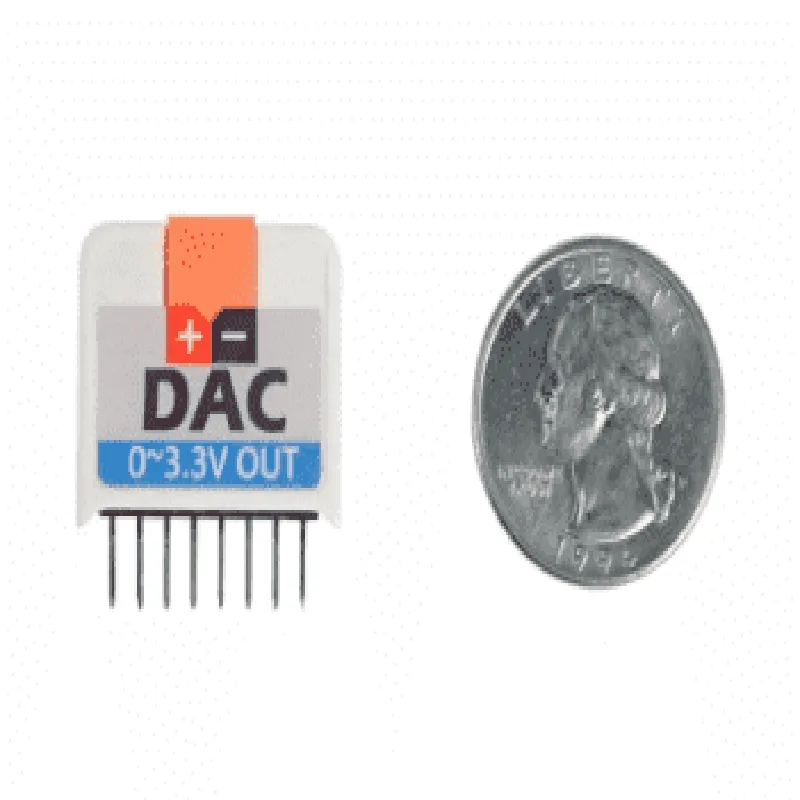

M5StickC Digital to Analog Convertor Hat MCP4725
M5StickC Digital to Analog Convertor Hat MCP4725
M5StickC Digital to Analog Convertor Hat MCP4725
M5StickC Digital to Analog Convertor Hat MCP4725

M5StickC Digital to Analog Convertor Hat MCP4725

This product is not available in your location yet

Description: 1. MCP-4725 DAC Chip: The M5StickC Digital to Analog Converter Hat is equipped with the MCP-4725 Digital to Analog Converter (DAC) chip, enabling it to convert digital signals into analog ones. 2. Four Independent 12-bit DAC Channels: This hat offers four independent 12-bit DAC channels that can be controlled via the M5Stack Core2 or M5Go microcontroller units. 3. Versatile Applications: Suitable for various applications, such as data acquisition, voltage control, and generating PWM signals. It is particularly useful in projects involving sensor data analysis and real-time analog control. 4. High Resolution: With a 12-bit DAC resolution, it can provide up to 4096 different output levels for each channel. 5. User-friendly Design: The hat features a user-friendly design with clear labeling and simple setup process, making it easy for hobbyists and professionals alike to utilize its functions. 6. MicroSD Card Compatibility: Additionally, the M5StickC DAC Hat supports microSD card st

Specification Details
Chip MCP4725 (16-bit Digital-to-Analog Converter)
Operating Voltage 3.0V to 5.5V
I/O Pins 6-pin header for I2C communication
Resolution 12-bit up to 4096 levels
Analog Output Range 0V to Vref (user-settable)
I2C Address User-selectable address via solder jumper
Package QFN-10 (0.65mm pitch)
Weight approximately 1 gram
Dimensions 30mm x 25mm x 5mm
