Float Sensor CSDP (Double Pin)

Float Sensor CSDP (Double Pin) Documentation

Overview

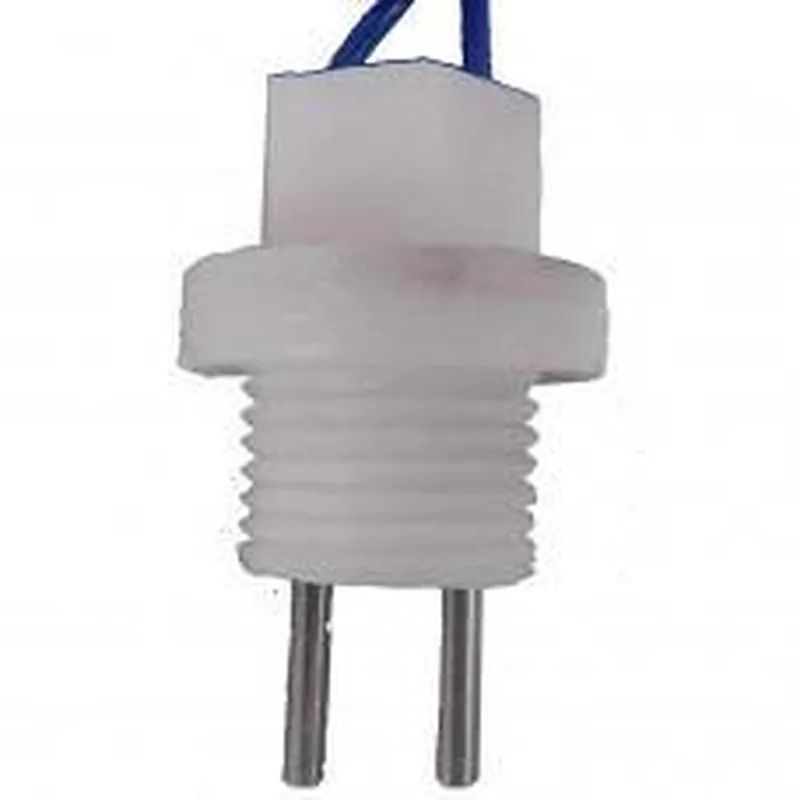

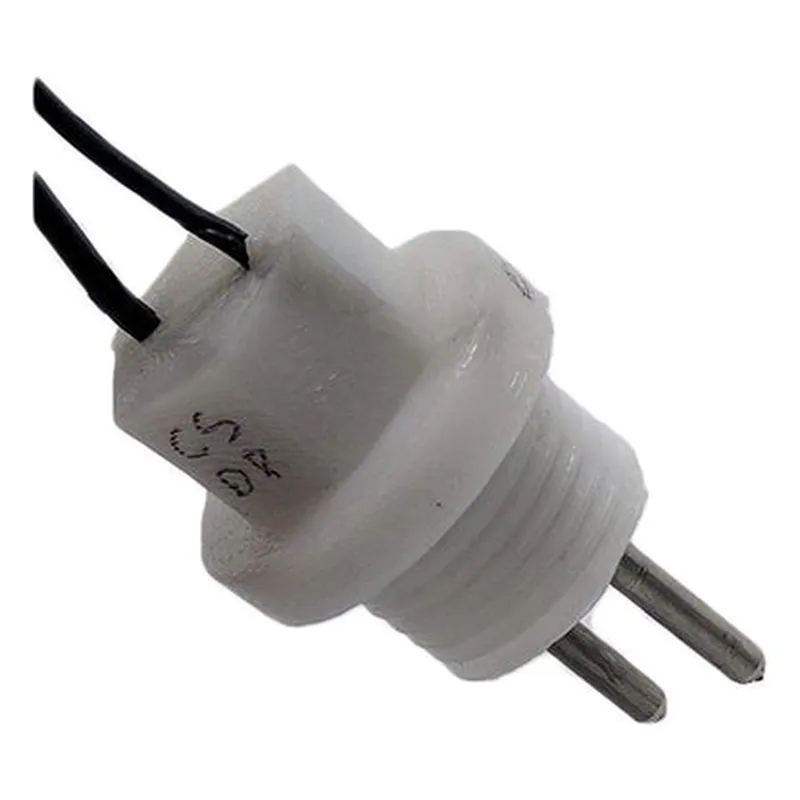

The Float Sensor CSDP (Double Pin) is a level sensing device designed to detect the presence or absence of a liquid in a tank or container. It is commonly used in IoT applications such as water level monitoring, chemical storage, and industrial automation. The sensor operates on the principle of capacitance measurement, providing a reliable and accurate way to detect changes in the liquid level.

Technical Specifications

Operating Voltage: 5V DC
 Output Type: Digital (High/Low)
 Response Time: 10ms
 Accuracy: 1mm
 Material: Stainless Steel
 connectors: 2-pin JST-XH (compatible with most microcontrollers)

Pinout

The Float Sensor CSDP (Double Pin) has a 2-pin JST-XH connector, with the following pinout:

Pin 1: VCC (5V DC power supply)
 Pin 2: OUT (Digital output)

Code Examples

### Example 1: Basic Usage with Arduino

In this example, we'll demonstrate how to use the Float Sensor CSDP (Double Pin) with an Arduino board to detect the presence or absence of a liquid.

```c++
const int sensorPin = 2; // Connect sensor output to digital pin 2

void setup() {
  pinMode(sensorPin, INPUT);
  Serial.begin(9600);
}

void loop() {
  int sensorState = digitalRead(sensorPin);
  if (sensorState == HIGH) {
    Serial.println("Liquid detected!");
  } else {
    Serial.println("No liquid detected.");
  }
  delay(1000);
}
```

### Example 2: Raspberry Pi Python Script for Tank Level Monitoring

In this example, we'll use the Float Sensor CSDP (Double Pin) with a Raspberry Pi to monitor the tank level and send notifications when the level falls below a certain threshold.

```python
import RPi.GPIO as GPIO
import time
import smtplib
from email.mime.text import MIMEText

# Set up GPIO mode
GPIO.setmode(GPIO.BCM)

# Set up sensor pin as input
sensor_pin = 17
GPIO.setup(sensor_pin, GPIO.IN, pull_up_down=GPIO.PUD_DOWN)

# Set up email notification
def send_notification(subject, message):
    msg = MIMEText(message)
    msg['Subject'] = subject
    msg['From'] = 'your_email@example.com'
    msg['To'] = 'recipient_email@example.com'

server = smtplib.SMTP('smtp.example.com')
    server.sendmail('your_email@example.com', 'recipient_email@example.com', msg.as_string())
    server.quit()

while True:
    sensor_state = GPIO.input(sensor_pin)
    if sensor_state == GPIO.HIGH:
        print("Liquid detected!")
    else:
        print("No liquid detected.")
        # Send notification if tank level is low
        send_notification("Low Tank Level Alert!", "The tank level has fallen below the threshold.")
    time.sleep(60)  # Check every 1 minute
```

### Example 3: ESP32 MicroPython Script for IoT Integration

In this example, we'll use the Float Sensor CSDP (Double Pin) with an ESP32 board running MicroPython to send tank level data to a cloud-based IoT platform.

```python
import machine
import time
import urequests

# Set up sensor pin as input
sensor_pin = machine.Pin(32, machine.Pin.IN)

while True:
    sensor_state = sensor_pin.value()
    if sensor_state == 1:
        print("Liquid detected!")
        tank_level = "Full"
    else:
        print("No liquid detected.")
        tank_level = "Low"

# Send data to IoT platform
    url = "https://iot-platform.com/api/tank_level"
    headers = {"Content-Type": "application/json"}
    data = {"tank_level": tank_level}
    response = urequests.post(url, headers=headers, json=data)

if response.status_code == 200:
        print("Data sent successfully!")
    else:
        print("Error sending data:", response.text)

time.sleep(300)  # Send data every 5 minutes
```

Conclusion

In this documentation, we've demonstrated the basic usage of the Float Sensor CSDP (Double Pin) with popular microcontrollers such as Arduino, Raspberry Pi, and ESP32. The sensor's digital output makes it easy to integrate with various IoT applications, allowing for accurate and reliable level sensing in a wide range of scenarios.
