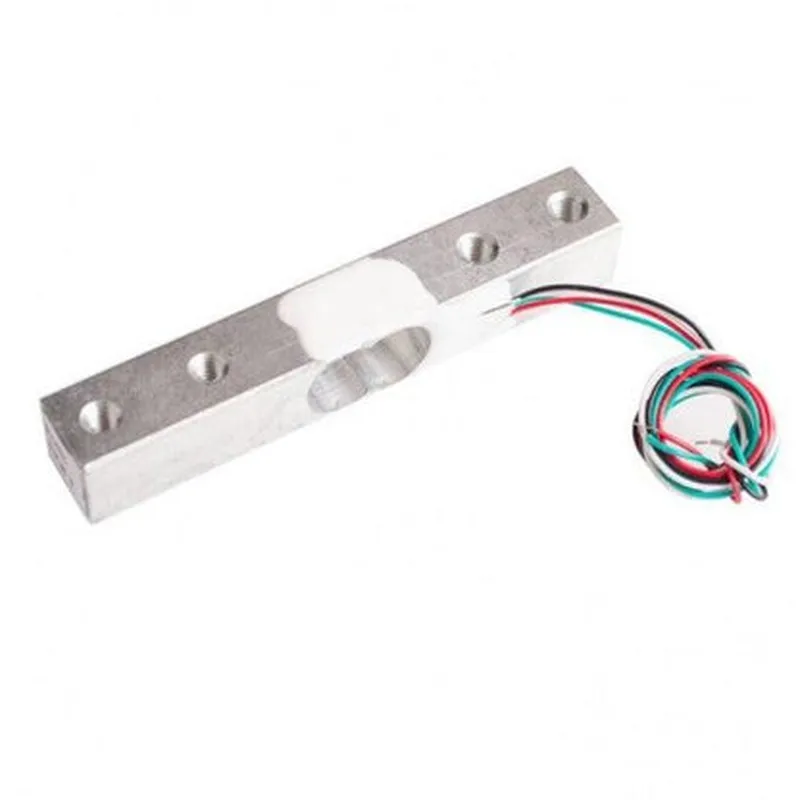

Description: 1. Definition: A load cell is an essential component in a weighing system or force measurement application. This particular model is designed to measure and transmit weight data of up to 3kg (6.6 lbs). 2. Construction: It consists of a strain gauge, which converts mechanical force into electrical output, and a protective housing. The strain gauge is made from high-strength stainless steel or other materials with excellent tension and compression properties. 3. Functionality: Load cells convert the applied force (weight) into an electrical signal that can be measured, processed, and displayed in various units like pounds, kilograms, or newtons. 4. Accuracy: With advanced technology, this 3kg load cell offers high precision and accuracy. The error is typically within ±0.1% of the full scale, ensuring reliable weight measurements. 5. Versatility: This load cell is compatible with a wide range of data acquisition systems and weigh bridges for various applications, including industrial
| Specification | Details |
|---|---|
| Measurement Range | 0 - 3 kg |
| Accuracy Class | ±0.1% FS (Full Scale) |
| Output Signal Type | Strain Gauge (Analog Voltage Output) |
| Output Voltage | 2 mV/V 10 mV max |
| Bridge Configuration | Wheatstone Bridge (4-wire) |
| Sensitivity | 20 mV/V |
| Operating Temperature | -20°C to +70°C |
| Humidity Range | 0-90% RH |
| Weight and Dimensions | 65g 45x25x15 mm (LxWxH) |
| Electrical Connection | Wire leads (4-pin) |
| Certifications | CE RoHS compliant |
