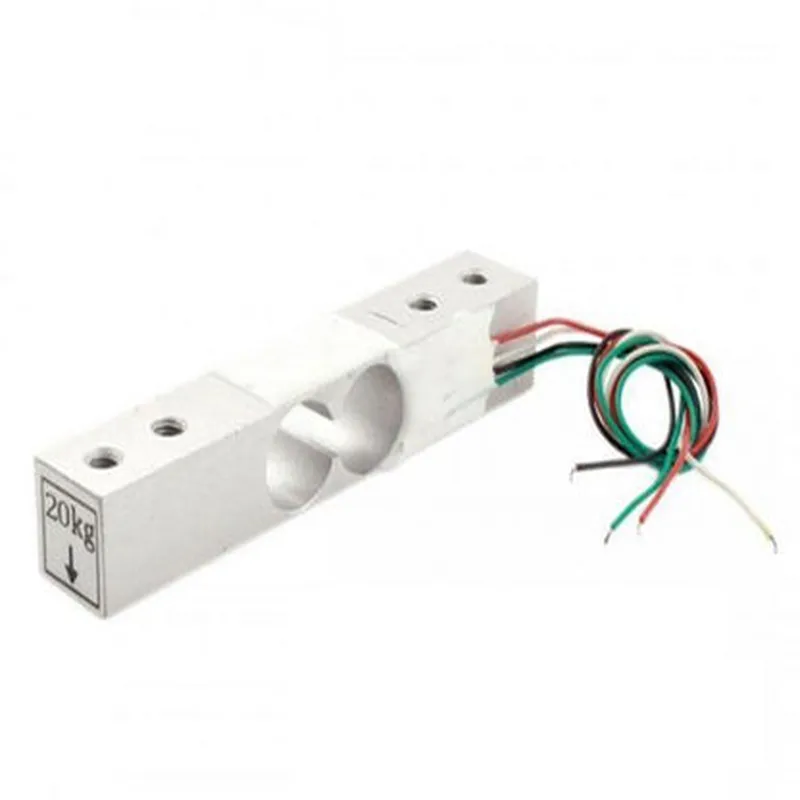

Description: 1. A 20kg Load Cell is an electronic pressure transducer designed to measure and convert force or weight into an electrical signal in the range of 0-20,000 Newtons (N) or 4,535.92 lbs. 2. Construction: Made with rugged stainless steel material ensuring durability and resistance to harsh environments in various industrial applications. 3. Accuracy and Precision: Provides high accuracy of +/-0.2% FS (Full Scale) for weight measurement and ensures precise readings, crucial for process control and optimization in industries like food processing, oil & gas, and manufacturing. 4. Output Signals: Offers various output signals such as analog voltage, current, and digital outputs like 0-20mA, 4-20mA, or HART communication protocols for seamless integration with other systems. 5. Temperature Compensation: Incorporates built-in temperature compensation features to ensure measurement accuracy is not affected by temperature fluctuations and external factors. 6. IP Rating: Depending on the spe
| Specification | Details |
|---|---|
| Weight Range | 0 - 20 kg (0 - 44 lbs) |
| Accuracy | ± 0.1% of full scale output |
| Resolution | 64000 counts |
| Sensitivity | 2 mV/V |
| Output Type | Analog (Voltage) |
| Operating Voltage | 10 - 30 V DC |
| Power Consumption | < 5 mA @ 24 V DC |
| Temperature Range | -20°C to +60°C (+-40°F to +140°F) |
| Connection Type | Wired (4-pin or 6-pin connector) |
| Materials | Stainless Steel ( Load Cell Body) |
| Operating Life | > 100 million load cycles |
