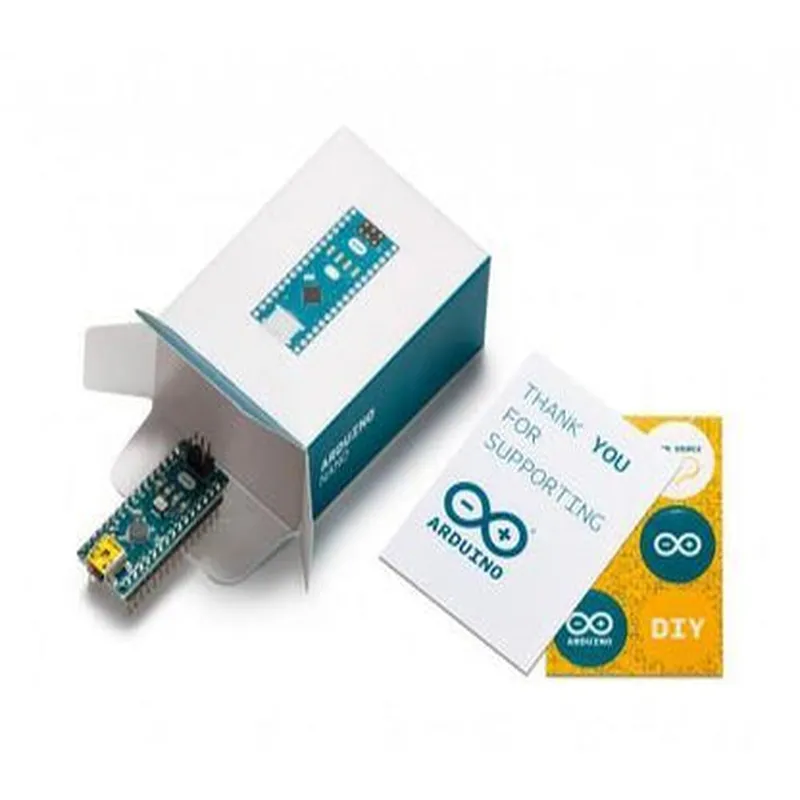

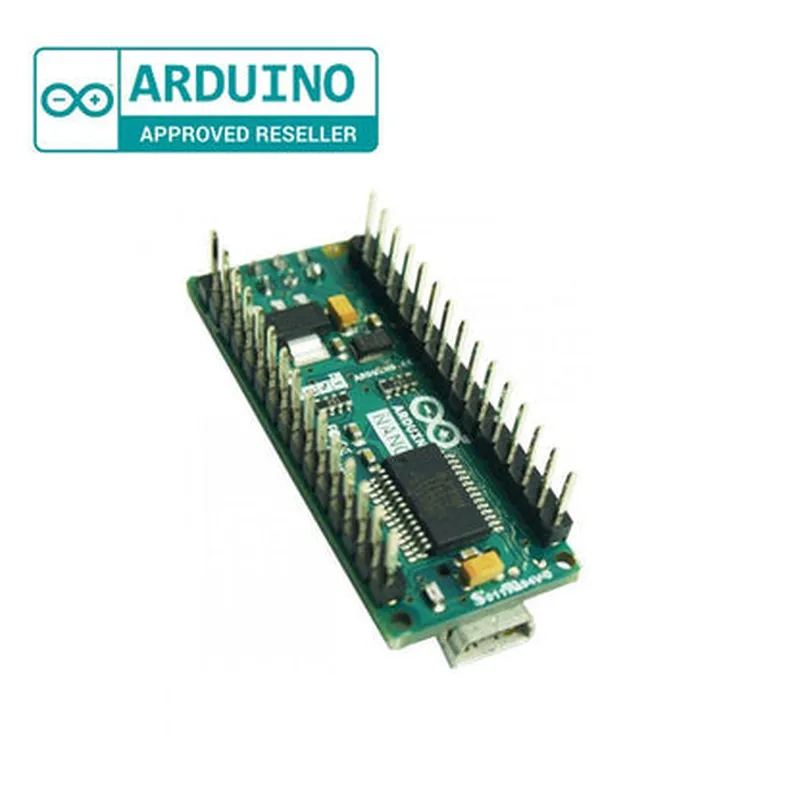

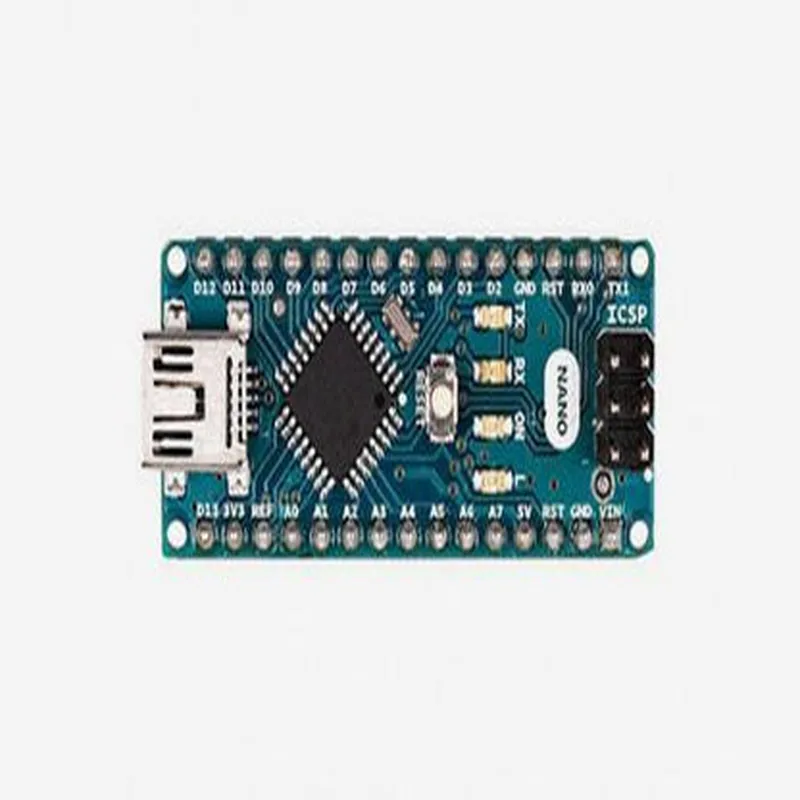

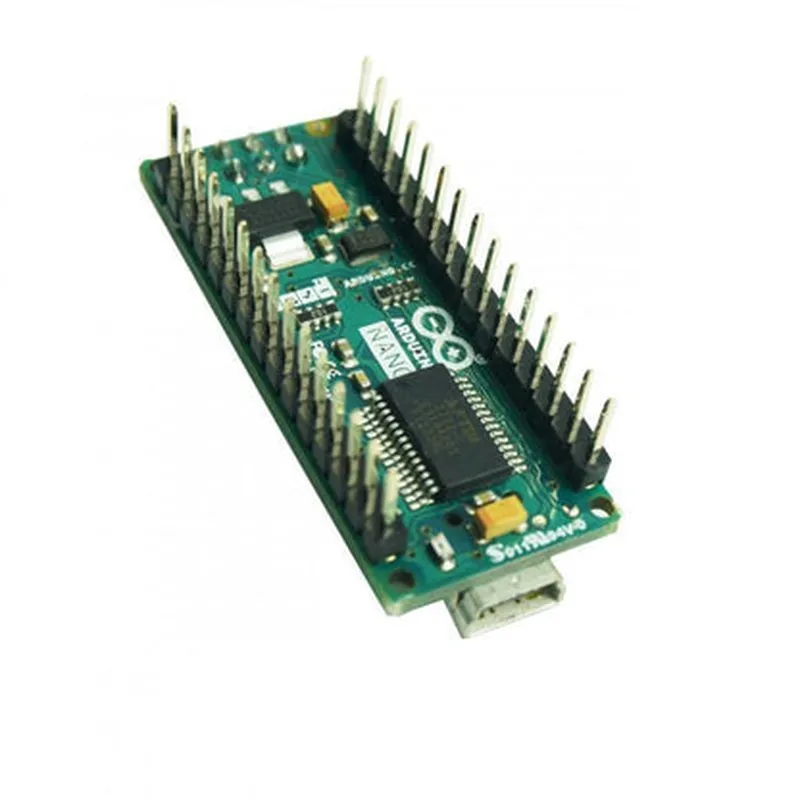

Description: 1. Microcontroller: Arduino Nano Original is a complete microcontroller board based on the ATmega328P (Arduino Micro) chip, with 14 digital input/output pins, 6 analog inputs, a 16 MHz quartz crystal, a USB connection, and a power jack. 2. Size: This compact board measures only 45mm x 19mm, making it ideal for projects where space is limited but functionality is required. It's perfect for wearable projects, DIY electronics, and other applications where size matters. 3. Versatile I/O Pins: The Arduino Nano Original's digital input/output pins can be configured to function as either INPUT or OUTPUT, supporting a wide range of sensors and actuators. Moreover, some pins have specific functions like Serial (RX/TX), SPI (SS, MOSI, MISO), I2C (A4 & A5), SDA & SCL. 4. USB Interface: This board features an integrated USB interface which allows programming and communication with a computer or other devices. It also supports the automatic resetting of the board when a new sketch is uploaded,
| Specification | Details |
|---|---|
| Microcontroller | ATmega328P (8-bit AVR) |
| Operating Voltage | 5V (3.3V logic level compatible) |
| Current Consumption | 7-12 mA (active) 2 μA (sleep mode) |
| Flash Memory | 32 KB (ISP and IAP enabled) |
| SRAM | 2 KB |
| EEPROM | 1 KB |
| Clock Speed | 16 MHz |
| Digital I/O Pins | 14 (of which 6 provide PWM output) |
| Analog Input Pins | 8 |
| USB Port | USB 2.0 (device only) |
| Reset Button | Yes |
| Dimensions | 45 mm x 18 mm x 4.5 mm |
