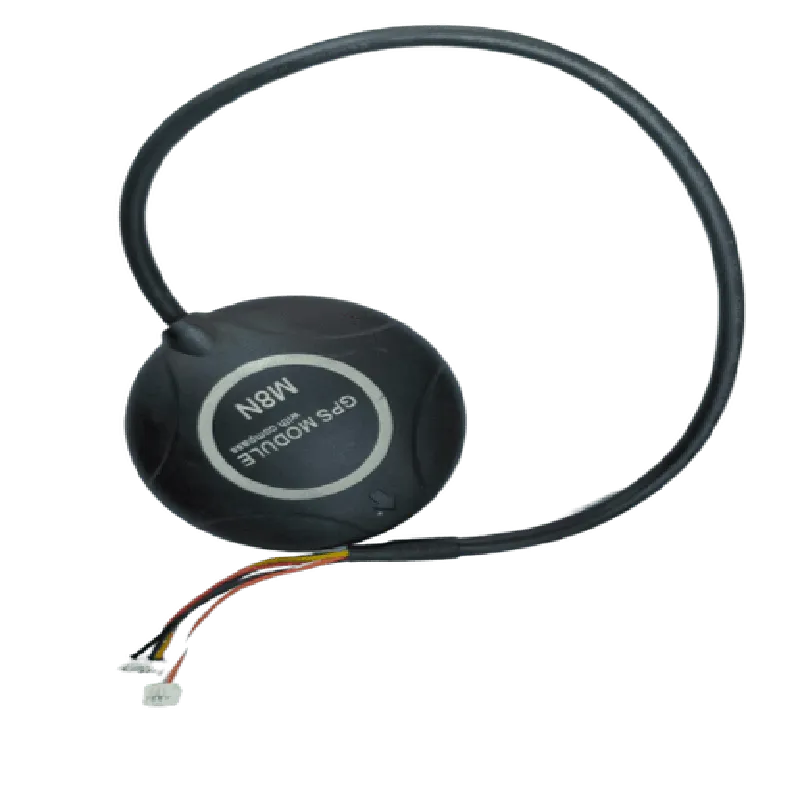

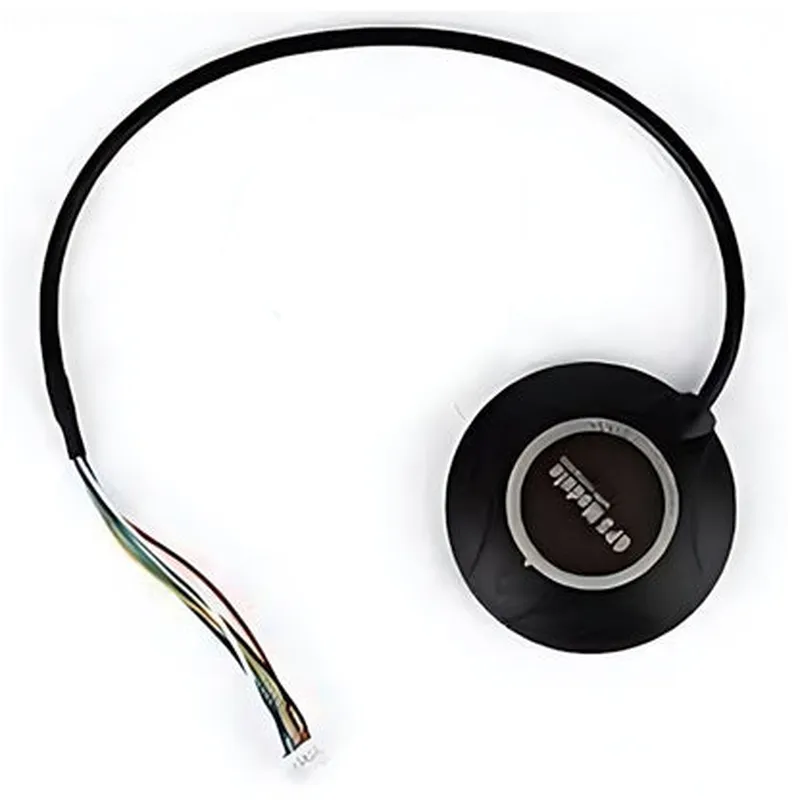

Description: 1. GPS Module with Integrated Compass: The NEO M8N GPS Module is a high-precision Global Positioning System (GPS) device, which comes integrated with a 3-axis digital compass, ideal for ArduPilot APM (Autopilot Mission Planner) systems. 2. High-Sensitivity Receiver: Featuring a high-sensitivity SiRFstarV receiver, this module can quickly acquire and track GPS signals under challenging conditions, ensuring reliable and accurate positioning data. 3. Barometric Altimeter: NEO M8N includes a built-in barometric altimeter that offers an additional height measurement solution for improved flight performance and stability in ArduPilot applications. 4. 10 Hz Update Rate: This GPS module is capable of providing position updates at a high rate of 10 Hz, allowing real-time tracking of the vehicle's movements in various ArduPilot missions. 5. Integrated Temperature Sensor: The temperature sensor built into the NEO M8N ensures stable performance by monitoring operating temperatures and reporti
| Specification | Details |
|---|---|
| Chipset | u-blox NEO-M8N GNSS receiver |
| Frequency Band | 1575.42 MHz (L1) 1227.60 MHz (L2) |
| Tracking Modes | 2D 3D dead reckoning aiding mode |
| Positioning Accuracy | < 2.5m CEP (95%) |
| Velocity Accuracy | < 0.05 m/s (1σ) |
| Compass Sensor | HMC5983 Magnetometer |
| Magnetic Field Range | ±2 Gauss |
| Operating Temperature | -40°C to +80°C |
| Supply Voltage | 3.3V 5V (with voltage regulator) |
| Current Consumption | 35 mA (typical) 45 mA (max) |
| Interface | UART I2C SPI |
| Dimensions | 15 x 11 x 2.4 mm |
| Weight | approximately 3 grams |
| Operating System Support | Various including u-blox firmware ArduPilot |
