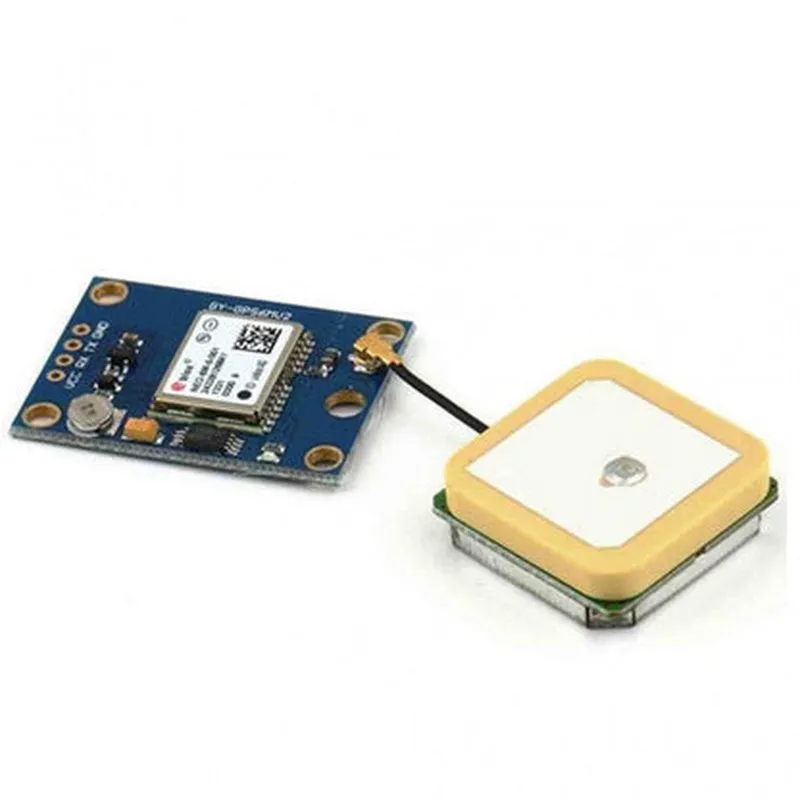

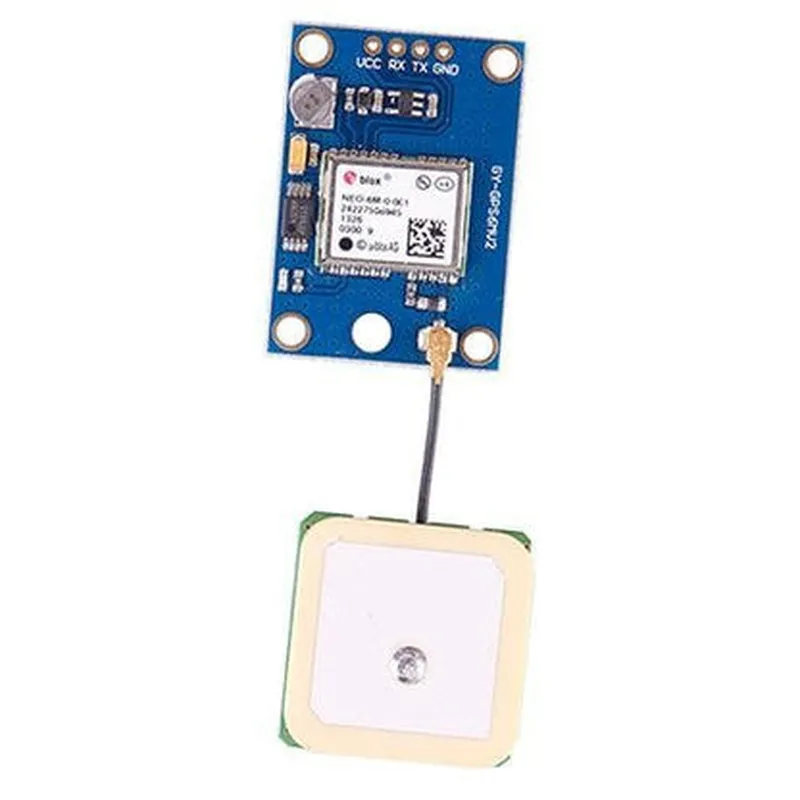

Description: 1. High-Performance GPS Module: Ublox Neo 6M is a high-precision Global Positioning System (GPS) module that offers superior location determination accuracy. 2. EEPROM Memory: It comes with an embedded Electronically Erasable Programmable Read-Only Memory (EEPROM), enabling data logging and parameter storage for custom applications. 3. Multi-constellation Support: Neo 6M supports multiple global navigation satellite systems, including GPS, GLONASS, and Galileo, ensuring faster position acquisition and improved accuracy in various environments. 4. Low Power Consumption: This module is designed for power efficiency with typical current consumption as low as 15mA (active) and 2.9mA (standby). It's suitable for battery-powered IoT projects where long-lasting operation is crucial. 5. Wide Operating Temperature: Ublox Neo 6M operates efficiently in a wide temperature range from -40°C to +85°C, making it suitable for use in various industrial and outdoor applications. 6. Compact Design:
| Specification | Details |
|---|---|
| GPS Module Type | NEO-6M u-blox 6-Series |
| Frequency Range | L1 C/A (1575.42 MHz) |
| Positioning Accuracy | 2-4m CEP (95% of satellites in view) |
| Velocity Accuracy | 0.5m/s |
| Horizontal Dilution of Position (HDOP) | ≤ 2.5 |
| Vertical Dilution of Position (VDOP) | ≤ 1.5 |
| EEPROM Type | 32KB SPI I2C |
| Communication Ports | UART I2C SPI |
| Supply Voltage | 3.3V ±10% |
| Power Consumption | Typically 30mA |
| Size | 16mm x 16mm x 1.2mm (L x W x H) |
| Weight | approximately 4 grams |
