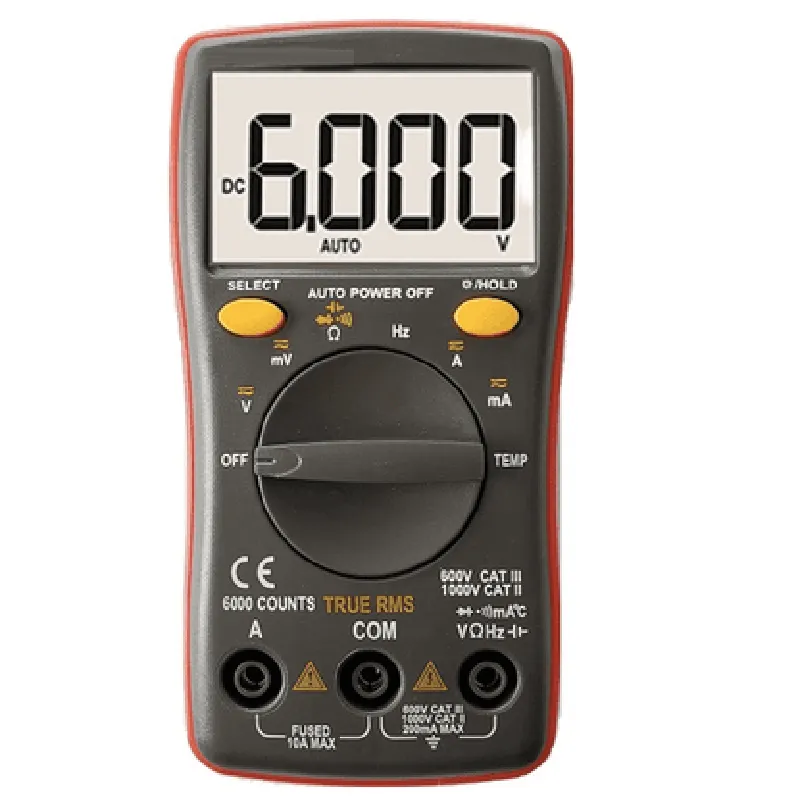

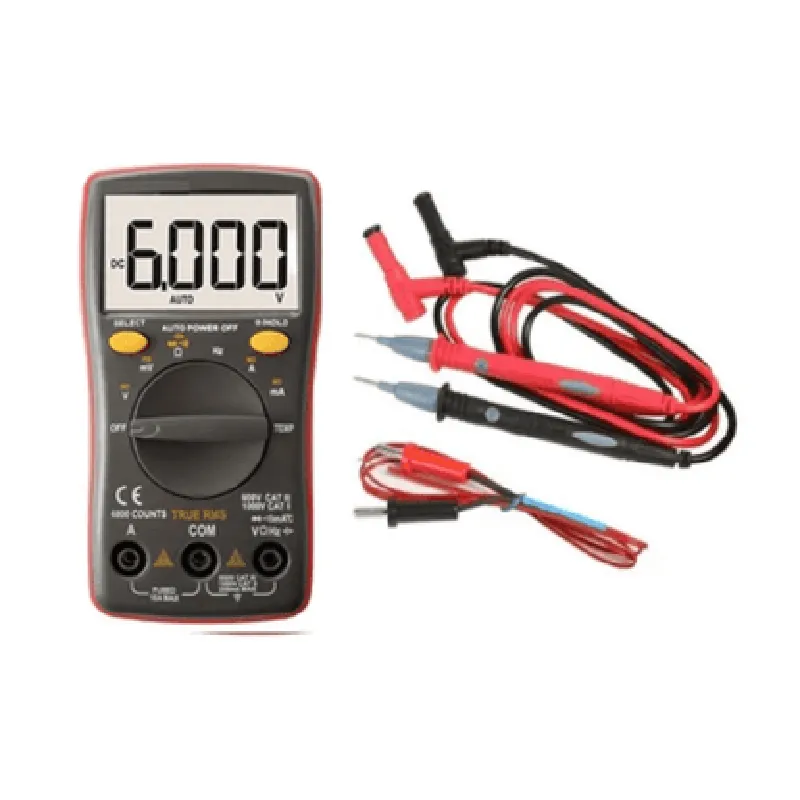

Description: 1. Versatile Measurement: The MetroQ MTQ 109+ Multimeter supports over 20 measurement functions including DC voltage, AC voltage, resistance, capacitance, current, frequency, and temperature (Type K probe required). 2. Digital Display with Backlight: Featuring a large digital display with backlight for easy reading, the MTQ 109+ Multimeter provides accurate and clear measurement results in various lighting conditions. 3. Data Hold and Auto Power-off: Data hold function enables users to lock in present values while making measurements or adjustments to circuits. The auto power-off feature helps conserve battery life when the meter is not in use. 4. RoHS Compliant and Rugged Design: Conformant with the European Union's Restriction of Hazardous Substances Directive, the MTQ 109+ Multimeter has a durable and rugged design that can withstand harsh environments. 5. Cat III 600V Safety Rating: With a Category III 600V safety rating, this multimeter ensures user protection against electri
| Specification | Details |
|---|---|
| Measurement Range | DC Voltage: 600mV to 1000V AC Voltage: 10mV to 750V |
| Temperature Range | -50°C to 1000°C (with thermocouple probe) |
| Display | Backlit LCD display with max/min/AVG/peak values |
| Measurement Functions | DC/AC Voltage AC/DC Current Resistance Diode Test |
| Accuracy | ±0.5% (DC Voltage) ±2% (AC Voltage) |
| Input Impedance | 10MΩ (DC Voltage) 100kΩ (AC Voltage) |
| Measurement Speed | Max: 20 measurements per second |
| Power Source | 4x 1.5V AAA batteries or external power adapter |
| Battery Life | Up to 160 hours of continuous use |
| Dimensions | 185mm x 85mm x 45mm |
| Weight | 450g |
| Operating Environment | 0°C to 40°C (operation) -20°C to 60°C (storage) |
| Certifications | CE FCC RoHS |
