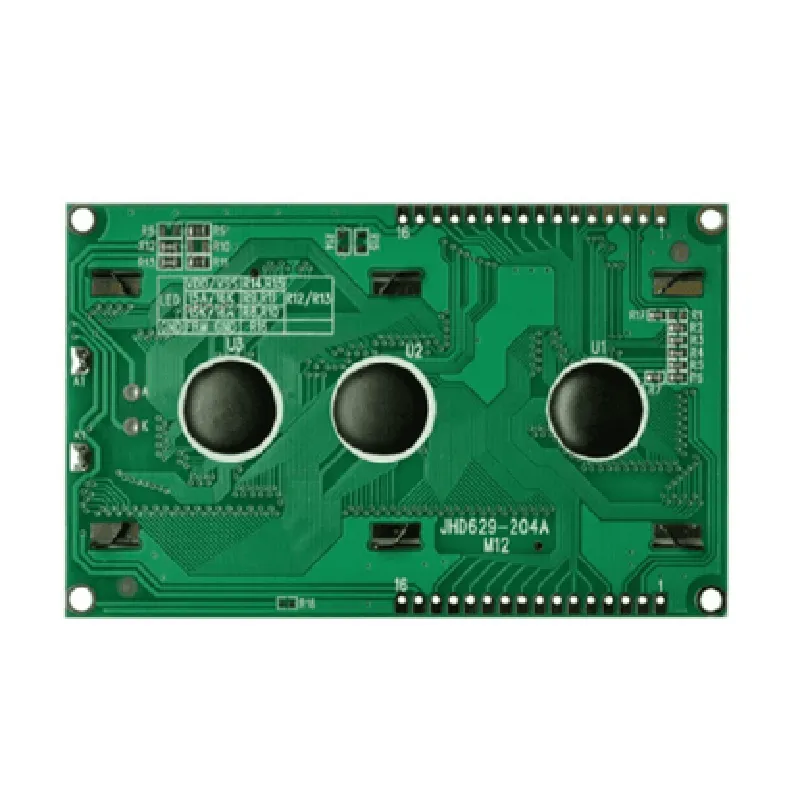

Original JHD 20x4 character LCD Display with Blue Backlight

Stufin

Original JHD 20x4 character LCD Display with Blue Backlight

This product is not available in your location yet

Description: 1. Original JHD 20x4 Character LCD Display is a user-friendly and versatile component featuring 20 columns and 4 rows with a blue backlight for enhanced visibility in various lighting conditions. 2. Display Size: Measuring at approximately 162mm x 53mm, it offers ample space to display text, numbers, and simple symbols in a clear and concise manner. 3. Backlighting: The blue backlight feature ensures that the display remains easily readable even when used in dimly lit environments or dark rooms. 4. Data Interface: Communicates with microcontrollers via the industry-standard HD44780 controller interface, which is widely used and well-documented for easy integration into various IoT projects. 5. Instruction Set: Supports a rich set of instructions and commands that allow for customization of display content, including setting the cursor position, clearing the screen, and scrolling text. 6. Connectivity: Features 14-pin and 16-pin interface options, allowing compatibility with diver

View Technical Documentation

Specification	Details
Display Type	Monochrome 2-line LCD display
Resolution	20 x 4 characters
Character Font Size	5.3mm (approx.)
Backlight Color	Blue
Contrast Ratio	High contrast ratio
Display Area	43.2 mm (H) x 21.6 mm (V)
Operating Voltage	3.3V to 5.0V
Power Consumption	Typically less than 25 mA
Interface	4-pin or 8-pin interface
Pinout	See datasheet for detailed pinout
Temperature Range	-20°C to +70°C
Storage Temperature	-30°C to +80°C
