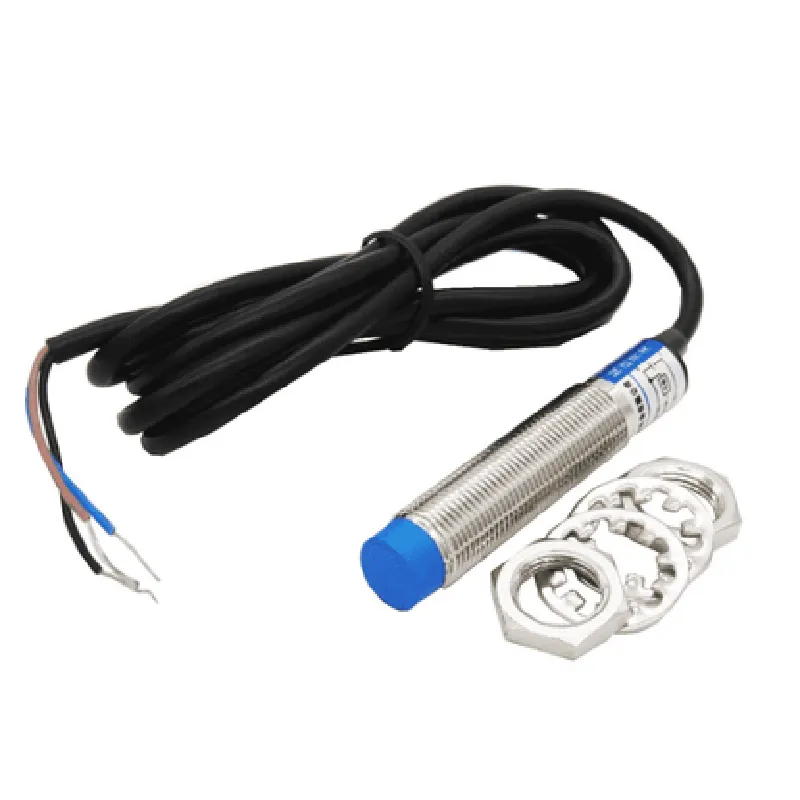

Tube Type Inductive Proximity Sensor Detection Switch NPN DC5-36V 4mm Normally Open switch LJ12A3-4-

This product is not available in your location yet

Description: 1. Component Overview: The Tube Type Inductive Proximity Sensor Detection Switch (LJ12A3-4-Z/BX) is an NPN type DC5-36V proximity sensor switch, featuring a tube design for improved sensing range and versatility. 2. Sensing Principle: This sensor utilizes inductive coupling to detect the presence or absence of ferrous metals within its detection zone without physical contact. 3. Design & Construction: The LJ12A3-4-Z/BX features a robust tube design, which offers better resistance to dust and water, ensuring reliable operation in harsh environments. 4. Versatile Operating Voltage: With a wide operating voltage range of DC5-36V, this sensor switch is adaptable for various industrial automation applications. 5. Normally Open (NO) Switch: This 4mm NO switch design enables the circuit to be open when no metal object is present in the detection zone. Once an object enters the sensing area, the switch closes, completing the circuit. 6. High Sensitivity: The LJ12A3-4-Z/BX sensor offers h

View Technical Documentation

Specification	Details
Switch Type	Tube Type Inductive Proximity Sensor
Detection Mode	Normally Open (NO)
Output Type	NPN
Supply Voltage	DC5-36V
Operating Voltage	DC6-32V
Current Consumption	<2mA (typical) 10mA max
Switching Frequency	up to 100kHz
Response Time	<300ms (typical)
Operating Distance	Up to 4mm
Sensor Type	Inductive Proximity Sensor
Housing Material	Metal
Dimensions	L=45.2mm D=9.8mm
