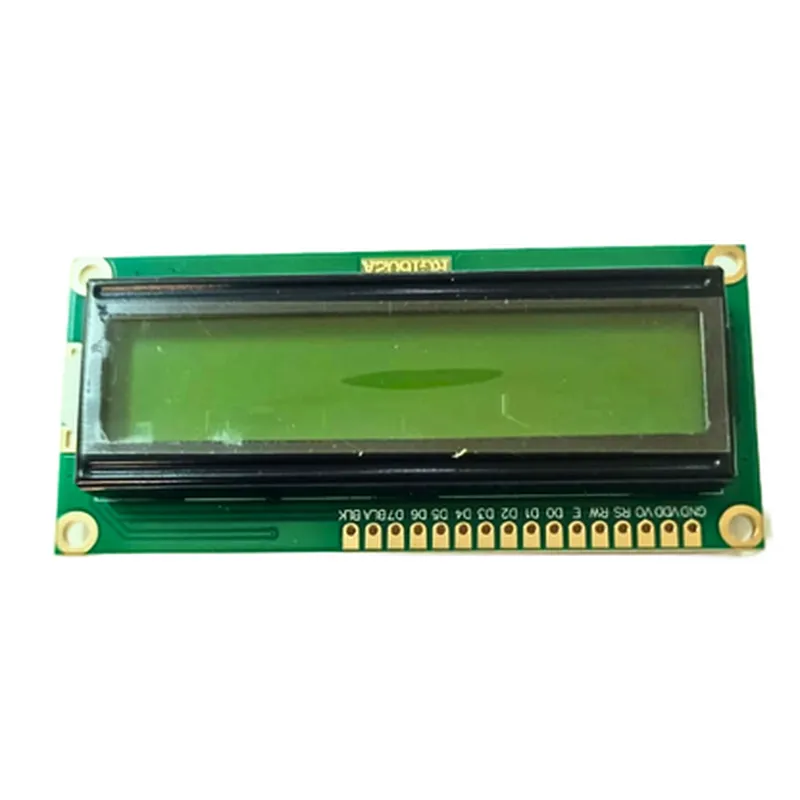

Description: 1. Display Size and Resolution: The 16x2 LCD module is a character based display with a size of 16 columns by 2 rows, offering a total of 32 characters per line when displayed in two lines. 2. Green Backlight: This specific model comes equipped with a green backlight, enhancing the visibility and readability of the text or data displayed on the LCD screen under various lighting conditions. 3. HD44780 Controller: The module utilizes the widely-used HD44780 controller, which supports various instruction set commands to manipulate text, cursor position, and backlight intensity. 4. Versatile Interface: It features a standard 16-pin interface, making it easy for users to connect with microcontrollers such as Arduino, Raspberry Pi, or other IoT platforms using simple wiring connections. 5. Power Requirements: The LCD module operates on 5V power supply, and the controller can be powered by either 5V or 3.3V to ensure compatibility with various power sources. 6. Text Manipulation: Users
| Specification | Details |
|---|---|
| Display Type | Graphic LCD Green Backlight |
| Resolution | 16x2 Characters 5x7 Matrix Display |
| Character Set | ASCII Character Set |
| Contrast Ratio | High Contrast (Typically >10:1) |
| Operating Voltage | 4.8V to 6.5V DC |
| Power Consumption | Typically <100 mA at 5V |
| Interface | 4-bit Parallel Interface (or 3-wire SPI) |
| Dimensions | Approximately 80x36 mm |
| Mounting Type | PCB Mount or through-hole pins |
| Operating Temperature | -20°C to +70°C |
