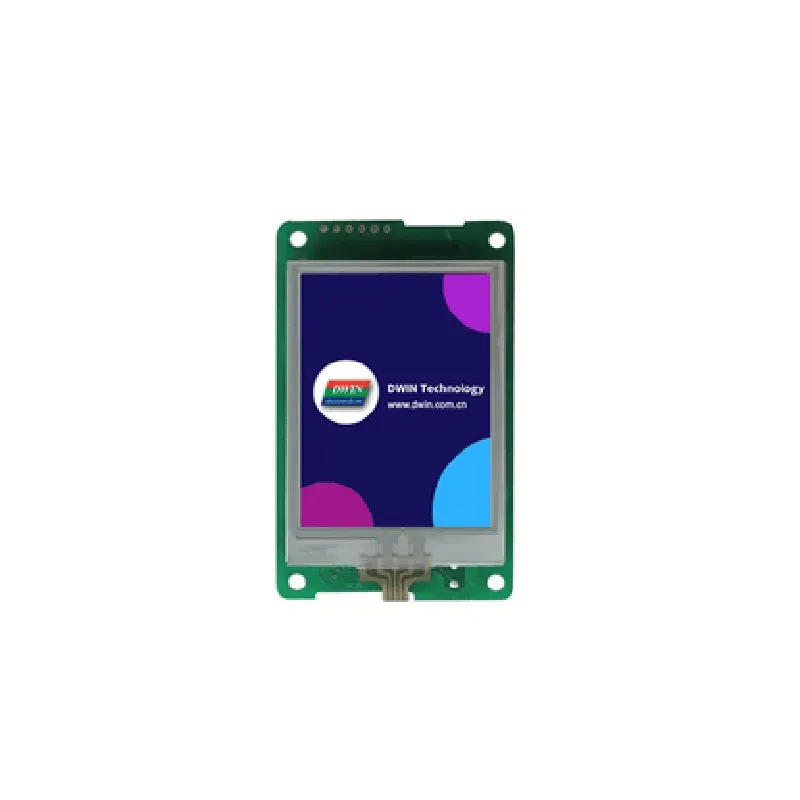

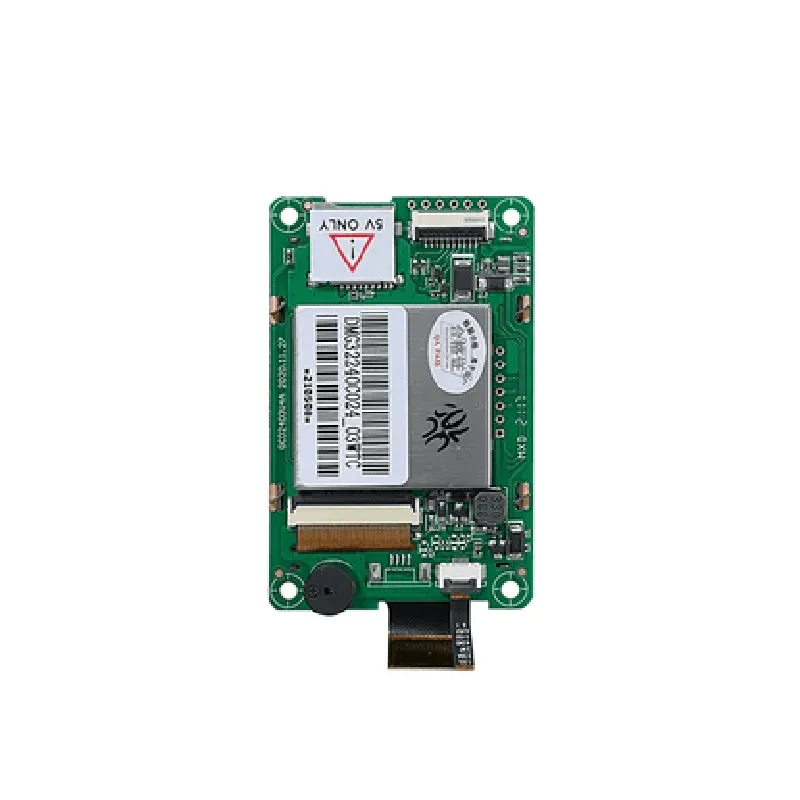

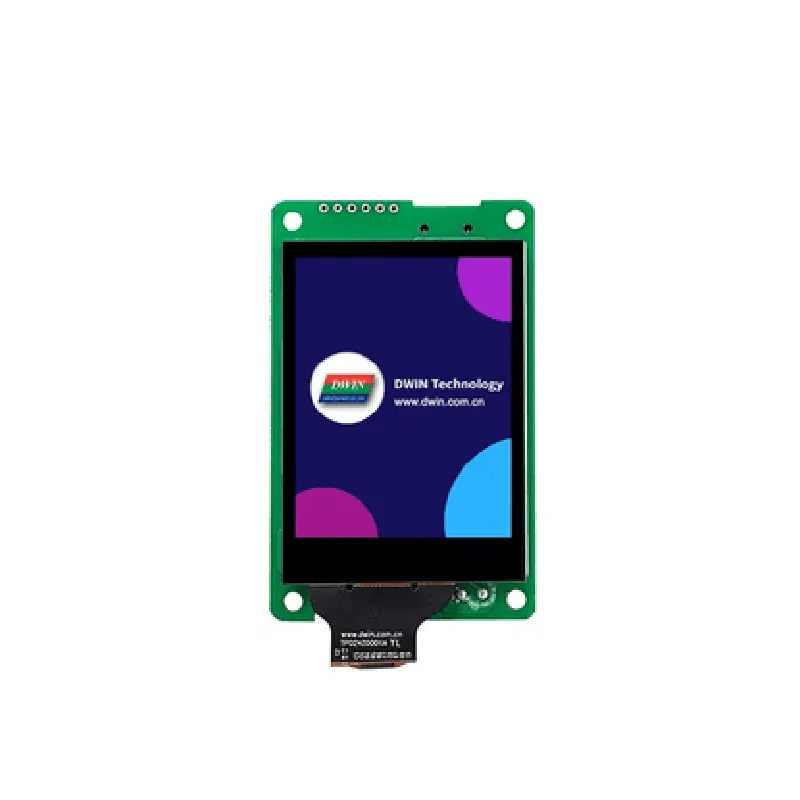

Description: 1. The 2.4 inch HMI (Human Machine Interface) UART DWIN IPS Display is an advanced IoT component featuring a 2.4-inch wide, high-resolution IPS (In-Plane Switching) touchscreen display. 2. It supports both graphic and textual user interfaces, allowing for flexible customization to suit various applications. 3. This display boasts an impressive resolution of 320x240 pixels, ensuring crisp visuals and clear readability even from a distance. 4. The touchscreen is capacitive, providing a responsive and intuitive user experience. It supports multi-touch input for added convenience. 5. The display is driven by an ARM Cortex-M3 processor, which guarantees quick response times and efficient operation. 6. It comes equipped with a built-in UART interface, enabling seamless communication with microcontrollers or other devices via serial connection. 7. This 2.4 inch HMI offers various interfaces including I²C, SPI, and SD card slot for external data expansion and storage. 8. It features an
| Specification | Details |
|---|---|
| Display Size | 2.4 inches (Diagonal) |
| Resolution | 320x240 pixels (QVGA) |
| Display Type | IPS (In-Plane Switching) LCD Display |
| Interface | UART (Serial) |
| Communication Speed | Up to 115200 bps |
| Operating Temperature | -20°C to 70°C |
| Power Consumption | Typical: 350mA Max: 450mA |
| Power Supply | 5V DC |
| Dimensions | 56.3 x 63.8 x 6.2 mm |
| Weight | Approximately 35 grams |
| Touch Panel Type | Resistive Touch |
| Operating System | Supports DWIN HMI OS and custom apps |
