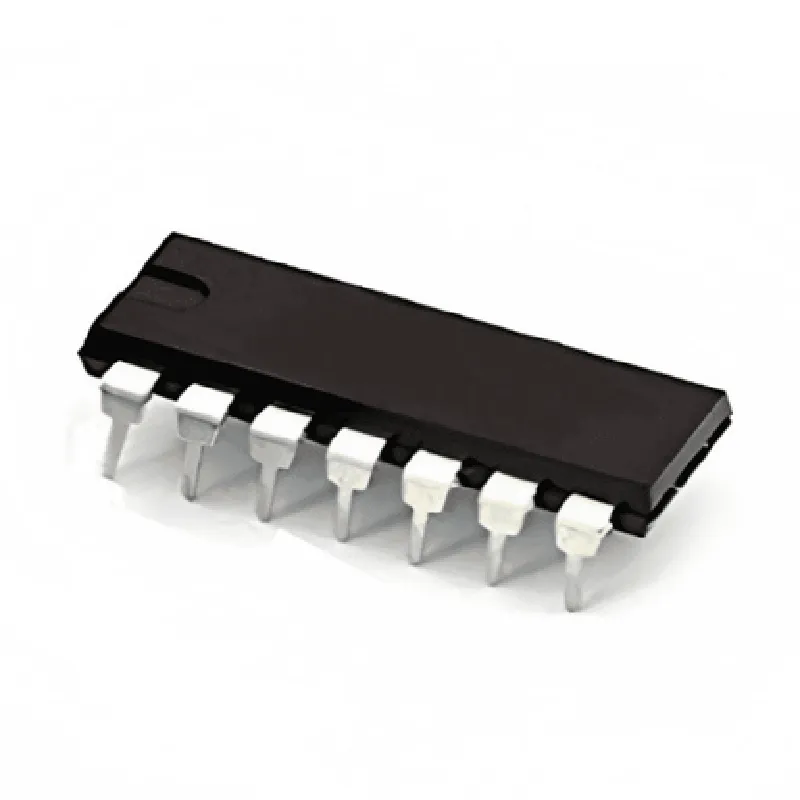

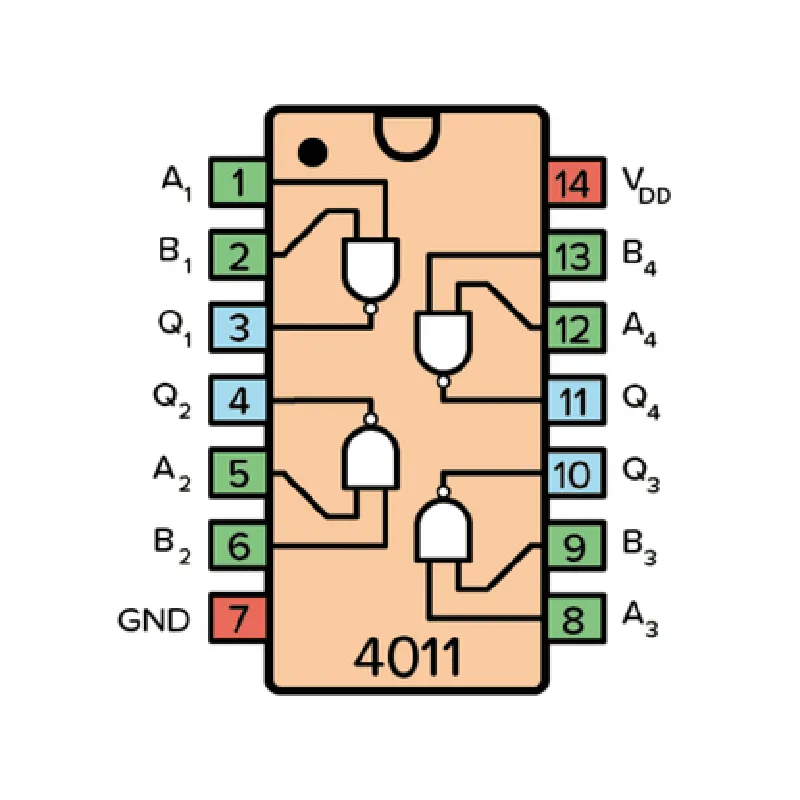

CD4011 - Quad 2-Input NAND Gate IC

This product is not available in your location yet

Description: 1. The CD4011 is a quad 2-input NAND logic gate integrated circuit (IC). It consists of four independent NAND gates in a single package, which can perform the logical AND function on two inputs. 2. Each NAND gate in the CD4011 IC has two inputs A and B, and an output Q. When both input A and B are at a low (Logic 0) level, the corresponding NAND gate produces a high (Logic 1) output Q. 3. This IC is widely used in digital circuits for implementing various logic functions and designing complex digital systems due to its ability to produce an inverted output from multiple inputs. 4. The CD4011 is fabricated using N-channel enhancement mode silicon process technology, ensuring high performance, low power consumption, and excellent reliability. 5. Its compact size (DIP-8 package) and relatively low power dissipation make this IC suitable for IoT projects in which space and energy efficiency are essential. 6. CD4011 is an excellent choice for designing digital systems requiring multip

View Technical Documentation

Specification	Details
Device Type	Digital Logic IC
Package Type	Dual In-Line Package (DIP)
Number of Gates	4
Power Dissipation	10 mW at 5 V and 2.5 mA output
Operating Temperature	-55°C to +125°C
Storage Temperature	-65°C to +150°C
Pin Count	14 (8 Inputs 4 Outputs)
Input Current	≤ 20 μA per input
Output Current	≤ 25 mA per output
