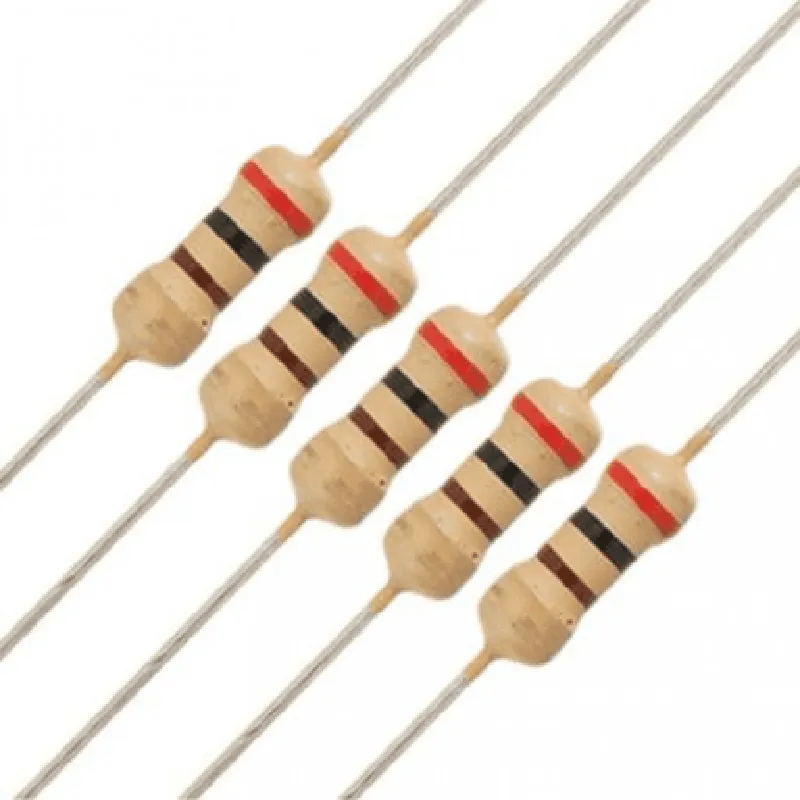

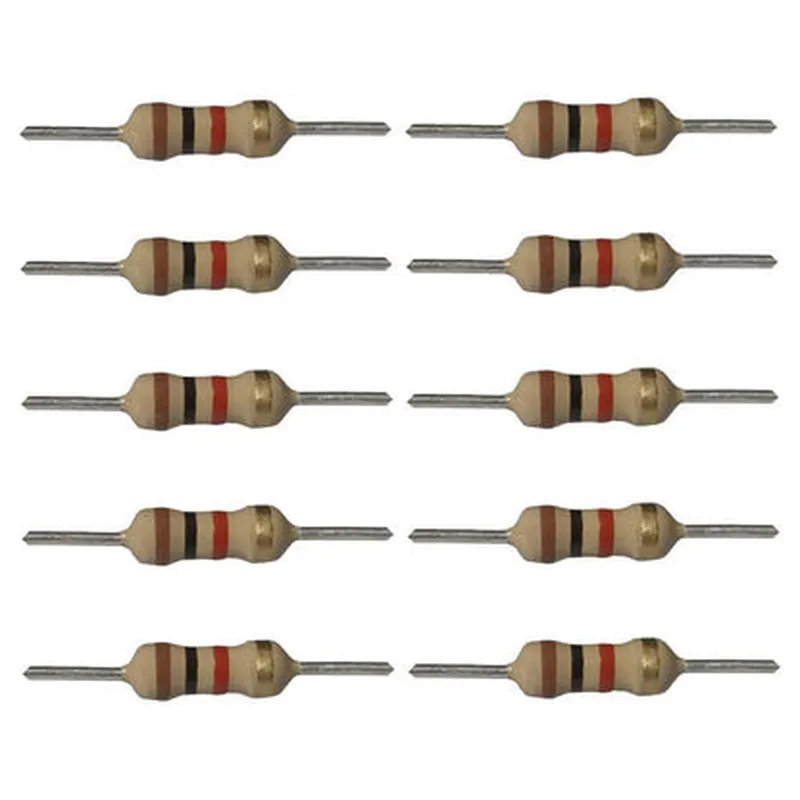

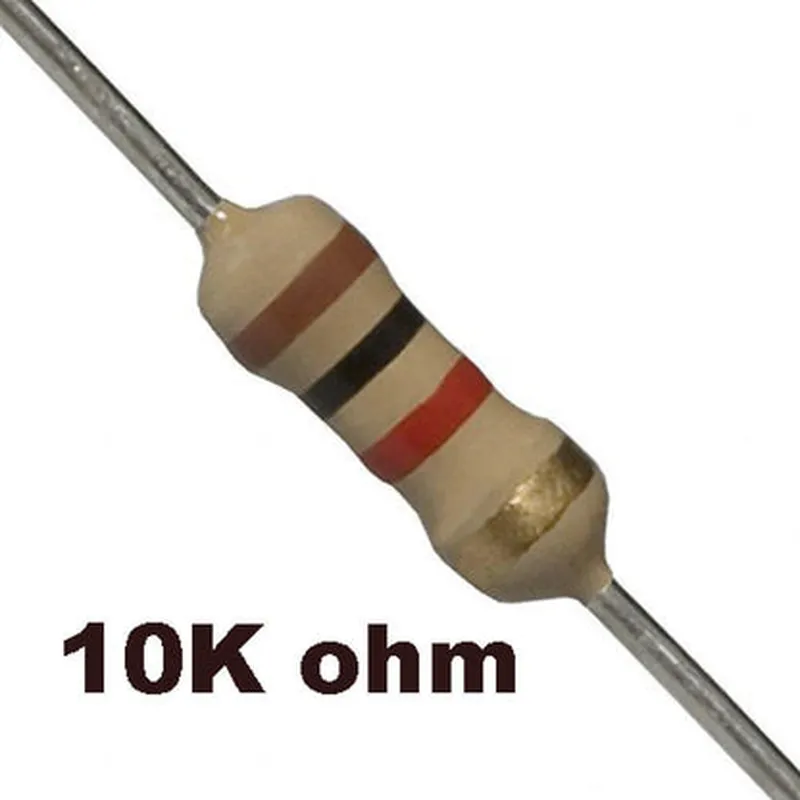

Description: Product 10k Ohm Resistors (Carbon Film) - Pack of 10 Features: 1. Resistance Value: Each resistor provides a precise resistance value of 10,000 ohms at 25°C. 2. Tolerance Range: Offers a standard tolerance range between ±5% and ±10%. 3. Power Rating: With a maximum power rating of 1/4 Watt, these resistors can handle reasonable current without overheating. 4. Material: Constructed using high-quality carbon film, ensuring stability and reliability. 5. Temperature Coefficient: Features a typical temperature coefficient of -350 to +200 ppm/°C, making them suitable for various temperature applications. 6. Size & Shape: These resistors have a standard 1/4-watt size and are available in the common E96 format with a length of 1.6 inches (40.6 mm), width of 0.5 inch (12.7 mm), and thickness of approximately 0.2 inch (5.08 mm). Uses: 1. Voltage Dividers: In voltage divider circuits, 10k Ohm resistors are commonly used for generating fixed voltages from higher input voltages. 2. Current Lim
| Specification | Details |
|---|---|
| Resistance Value | 10 kilohms (10 kΩ) |
| Tolerance | ±5% (±50 ppm at 25°C 1 kHz AC) |
| Power Rating | 0.25 watts (1/4 W) |
| Operating Voltage | up to 100 volts DC or AC |
| Temperature Range | -55°C to +155°C |
| Package Type | Axial lead ceramic body |
| Lead Length | approximately 0.6 inches (15 mm) |
| Quantity per Pack | 10 units |
| RoHS Compliant | Yes |
1. A 10mm Continuous Buzzer P...
1. A 10mm Continuous Buzzer P...

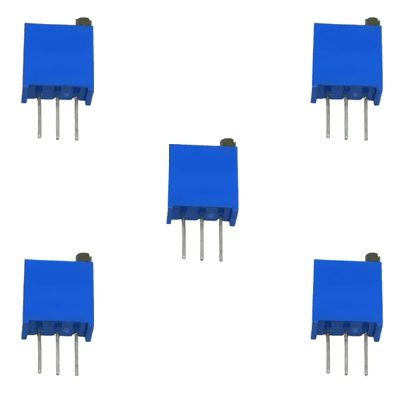

1. The 200E 3296W Trimpot is ...

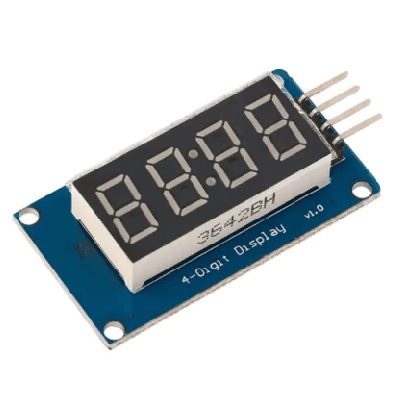

1. The TM1637 is a microcontr...
1. The 74HC151 is an 8-input,...

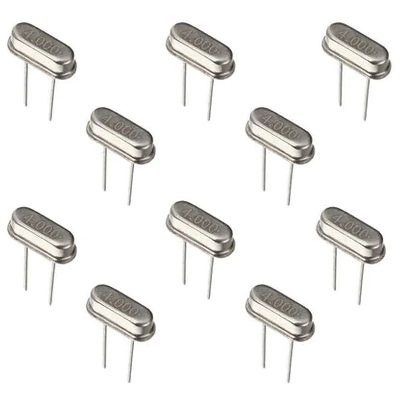

1. Frequency: This 4MHz Cryst...
