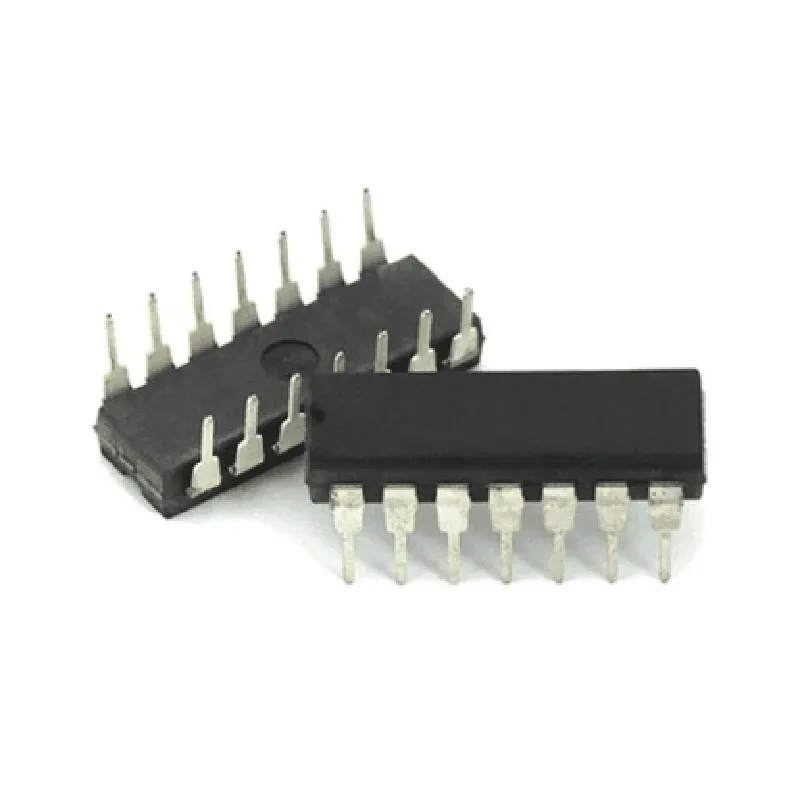

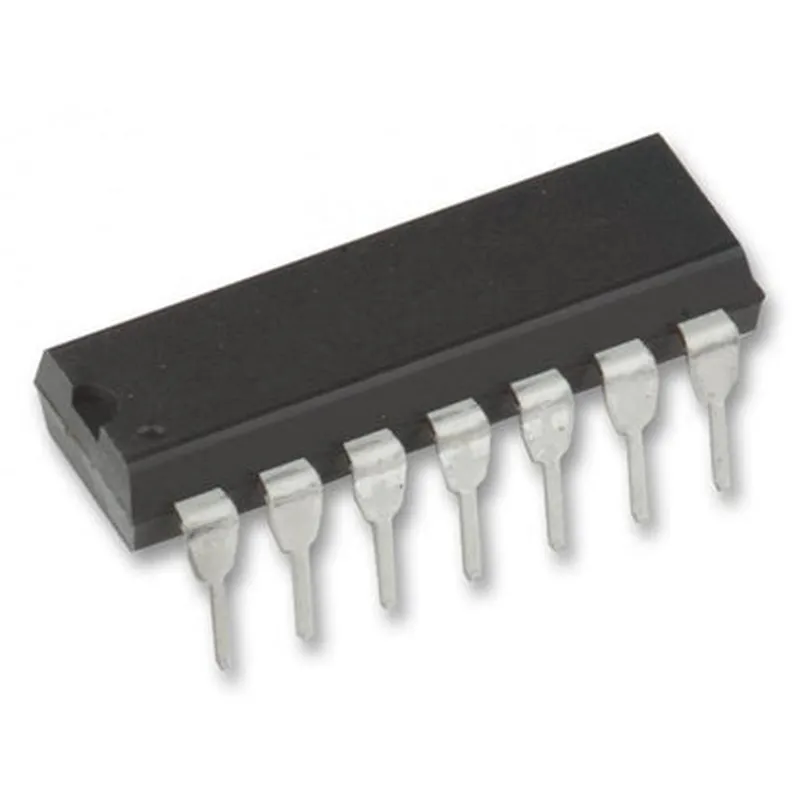

Description: 1. The 74HC11 is a triple 3-input AND gate integrated circuit (IC) from the 74H00 series, which features three independent AND gates in a single package. 2. Features: Each AND gate accepts three inputs (A, B, and C), produces an output (Q) only when all three inputs are HIGH (1), and is fabricated using High-Speed CMOS technology for faster operation. 3. Logic Function: This IC performs a logical AND operation on its input combination (A ∧ B ∧ C). It's widely used in digital circuits to create complex logic functions, gates, and systems. 4. Application Areas: The 74HC11 is ideal for various applications such as data processing, signal conditioning, interfacing between digital devices, and digital system design. 5. Power Consumption: Compared to other TTL (Transistor-Transistor Logic) AND gates, the 74HC11 has a lower power consumption due to its CMOS technology. This makes it a popular choice in battery-powered or low-power IoT applications. 6. Faster Operating Speed: The high-sp
| Specification | Details |
|---|---|
| Specification | Detail |
| Device Type | Digital Logic Chip |
| Function | Triple 3-Input AND Gate |
| Input Pins | 9 (3 inputs per gate 3 gates) |
| Operating Voltage | 2V to 6V |
| Supply Current | 4 mA at VCC = 5V |
| Power Dissipation | 10 mW at T_A = 25°C and VCC = 5V |
| Thermal Resistance | 150°C/W (Junction-to-Ambient) |
| Package Type | DIP (Dual In-Line Package) |
| Pinout | See datasheet for pinout details |
| Logic Family | CMOS |
| Temperature Range | -40°C to +125°C |
| Storage Temperature | -65°C to +150°C |
