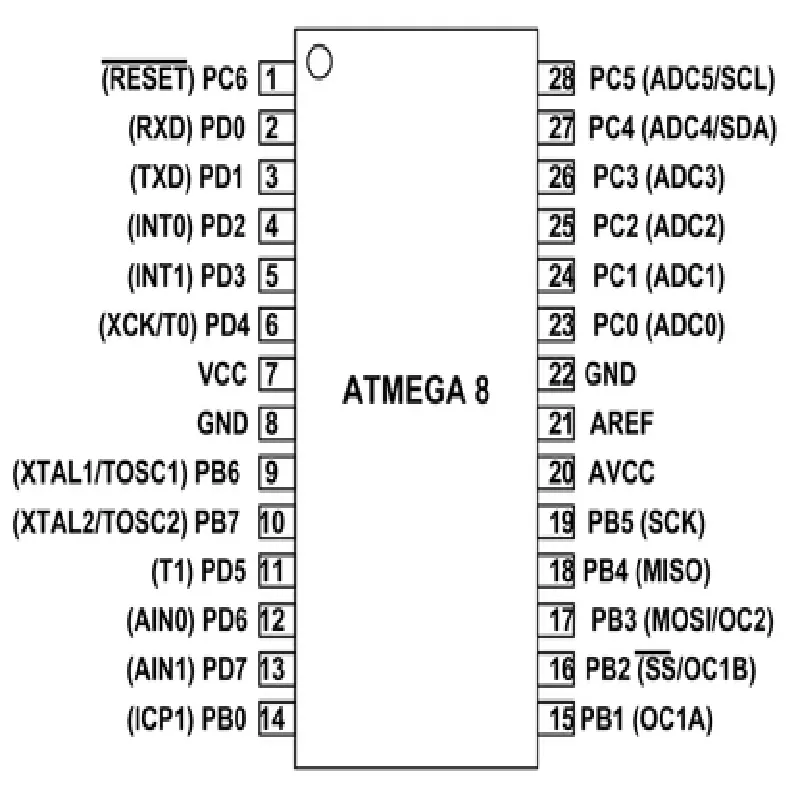

ATmega8

Stufin

This product is not available in your location yet

Description: 1. Microcontroller: ATmega8 is an 8-bit microcontroller developed by Microchip Technology Inc., based on the AVR (Atmel RISC) architecture. 2. Memory: It features 1 KB of ISP flash memory for storing code, 64 B of EEPROM for data that needs to be non-volatile, and up to 512 B of SRAM for fast data storage and use. 3. Input/Output Pins: The ATmega8 has 23 general-purpose input/output (I/O) pins that support digital I/O and analog input functionality. Some pins can also be used as pulse width modulation (PWM) outputs. 4. Timers: It includes four 16-bit Timer/Counter (T/C) units with compare modes for generating PWM signals, capturing external events, or measuring elapsed time. 5. Communication Interfaces: The microcontroller features USART interface for asynchronous communication, SPI and I²C interfaces for synchronous data transfer, and a 10-bit ADC that can support an external reference voltage. 6. Clocks: ATmega8 provides an internal RC oscillator (RC) with clock frequency optio

View Technical Documentation

Specification	Details
Microcontroller Type	AVR (8-bit RISC)
Core Clock Speed	16 MHz (internal oscillator)
Program Memory	8 KB Flash EEPROM
Data Memory	512 B RAM 1 KB I/O memory
Instruction Set	AVR Instruction Set (up to 16-bit)
Analog-to-Digital Converter (ADC)	6-channel 10-bit ADC
Timer/Counter Units	2 x 8-bit Timer/Counters
Communication Interfaces	1 x SPI 1 x UART
Operating Voltage	5.0 V to 6.0 V
Power Consumption (active)	Up to 50 mA (depending on usage)
Temperature Range	-40°C to +85°C
