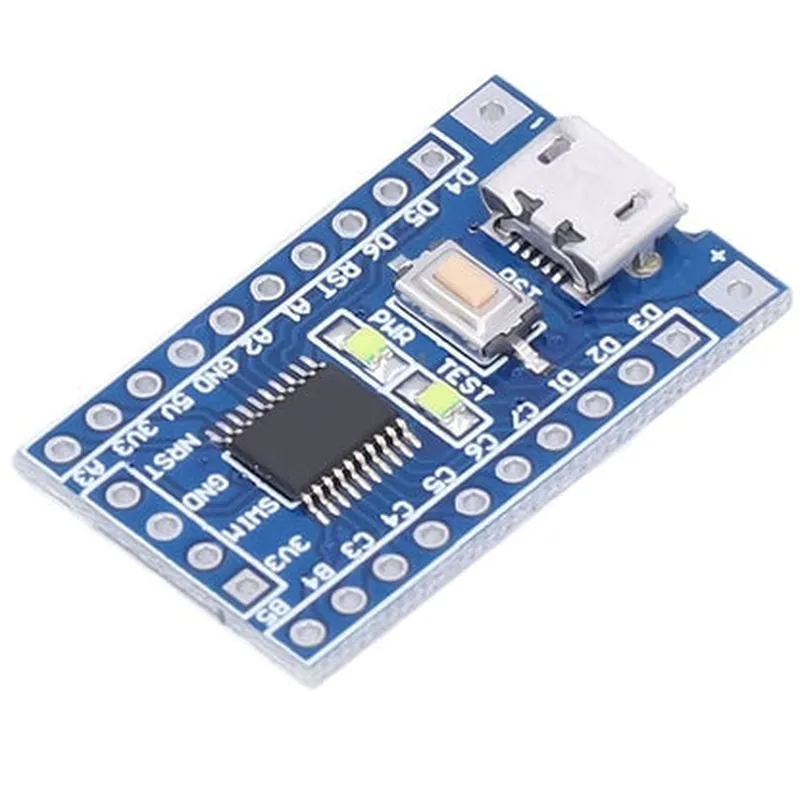

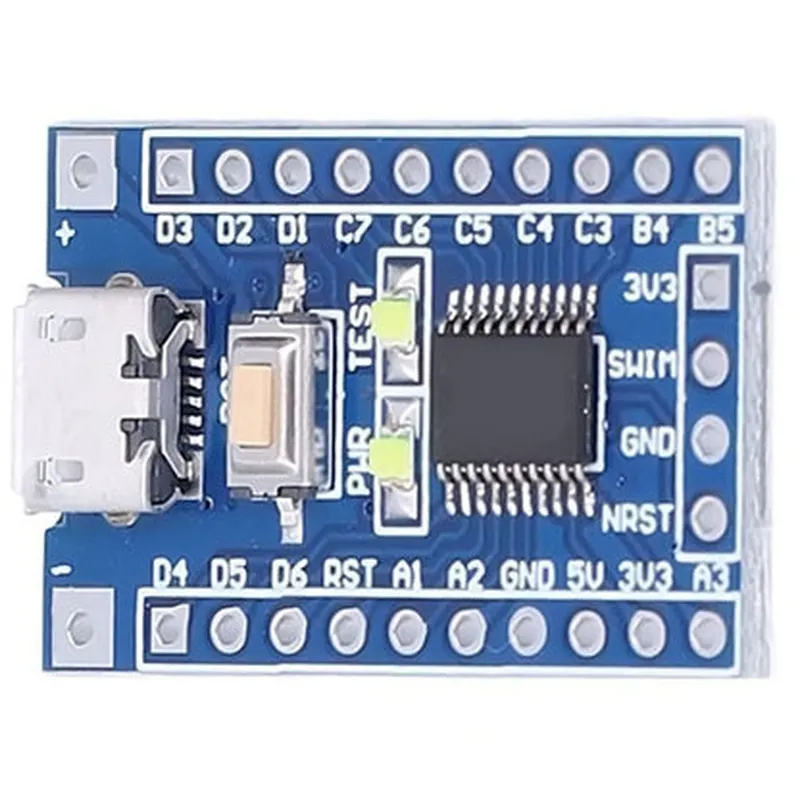

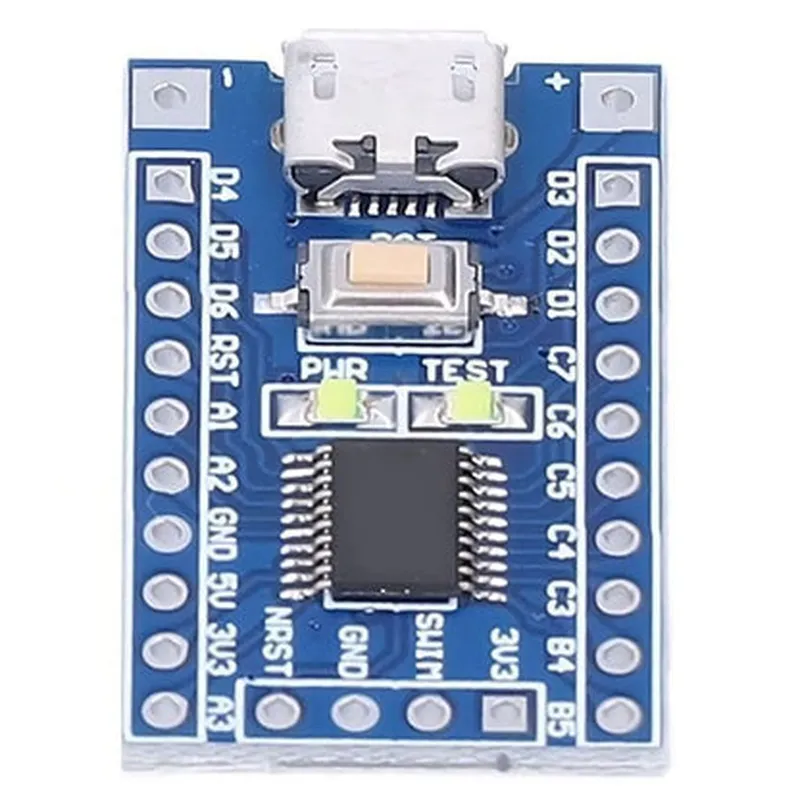

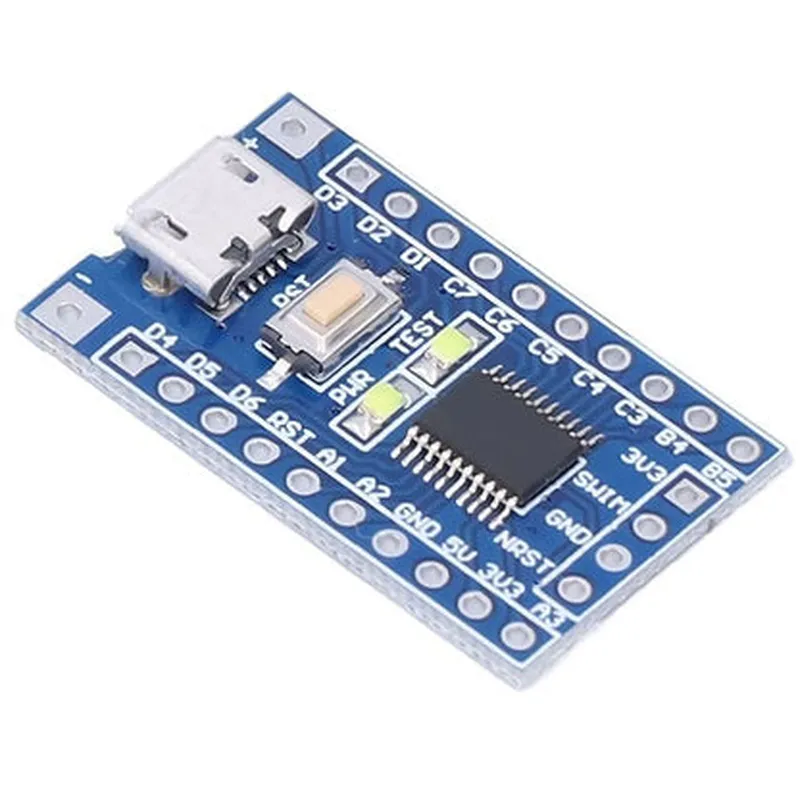

STM8S103F3P6 Development Board

This product is not available in your location yet

Description: 1. Microcontroller: STM8S103F3P6 is a development board based on the STM8S103F3P6 microcontroller (MCU) from STMicroelectronics. This low-power, 16-bit MCU features a maximum operating frequency of up to 21 MHz. 2. I/O Ports: It comes with a rich set of I/O pins that include 35 digital input/output pins and 8 analog input pins. These pins support various functionalities, enabling users to interact with sensors, actuators, and other peripherals. 3. Connectivity: STM8S103F3P6 Development Board comes with a built-in USB interface for easy connectivity to computers or other devices. It also supports various communication interfaces like I²C, SPI, UART, and CAN bus, offering versatile options for data transfer and integration with external systems. 4. Power Management: This development board boasts advanced power management features to prolong battery life or reduce energy consumption in applications where power is a concern. It includes an internal voltage regulator, adjustable clock s

View Technical Documentation

Specification	Details
Microcontroller	STM8S103F3P6 (8-bit Flash-based)
CPU Speed	16 MHz
Memory	32 KB Flash 2 KB RAM
I/O Pins	27 (including 4x UART 1x SPI 1x I²C)
Communication Ports	UART (4x) SPI (1x) I²C (1x)
Timers	3x 16-bit timers
Interrupts	Up to 45 interrupt sources
Analog-to-Digital	10-channel 12-bit ADC
Digital-to-Analog	4-channel 8-bit DAC
Power Supply	2.7 V to 5.5 V (VDD) 3.3 V (VDDA)
Operating Temperature	-40°C to +85°C
Package	LQFP-32 (7x7 mm)
