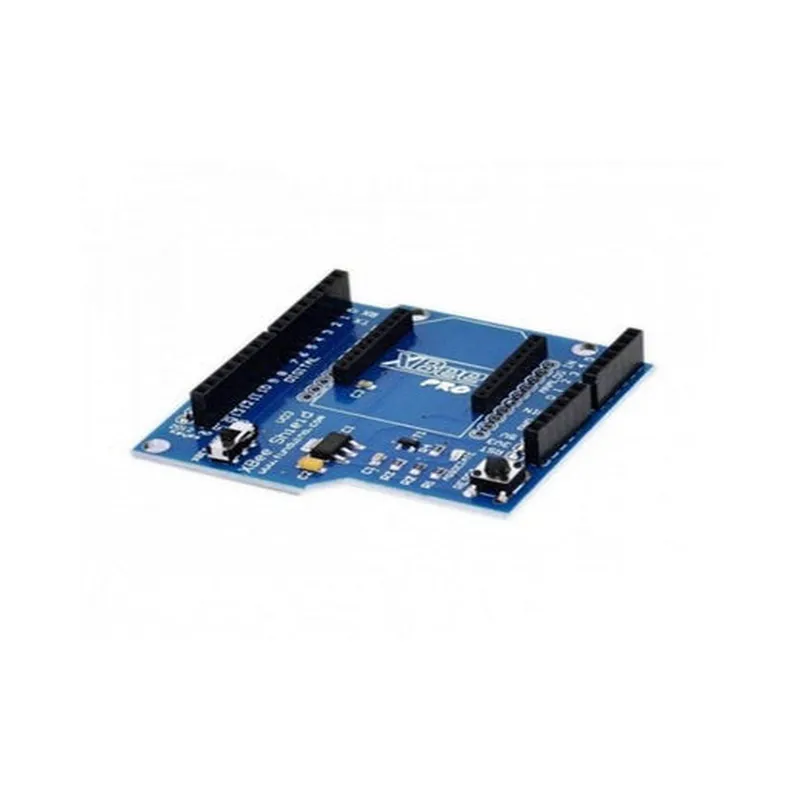

Description: 1. Arduino xBee Shield is an add-on board designed for use with Arduino microcontrollers that enables easy implementation of XBee wireless modules in various projects. 2. Features a standard Arduino shield form factor, ensuring compatibility with a wide range of Arduino boards, including Uno, Mega, and Leonardo series. 3. Integrates an SMA IPEX antenna connector for optimal XBee antenna attachment, providing better wireless signal strength and reliability. 4. Includes level shifter circuits to facilitate seamless communication between the microcontroller and the XBee module, eliminating the need for additional components. 5. Offers 3 configurable I/O pins (D3-D5) that can be used to interact with external devices or sensors, expanding the capabilities of wireless projects. 6. Compatible with various XBee Series 1 and Series 2 modules, including digital, analog, and Zigbee variants. 7. Supports both series 1 and series 2 API modes (API and AT), providing flexibility for users to
| Specification | Details |
|---|---|
| Compatibility | Arduino boards (Uno Mega Due) |
| XBee Module Type | Series 1/2/6 XBee modules supported |
| Communication Mode | Half-duplex serial communication |
| Baud Rate | Up to 9600 bps |
| Data Rate | Up to 250 kbps |
| Operating Voltage | 5V (regulated by onboard voltage regulator) |
| Current Draw | Typical: 10 mA Max: 25 mA |
| Dimensions | 6.2 x 7.4 cm (shield dimensions) |
| Weight | Approximately 15 g |
| Operating Temperature | Ranging from -20°C to +70°C |
| Storage Temperature | Ranging from -40°C to +80°C |
