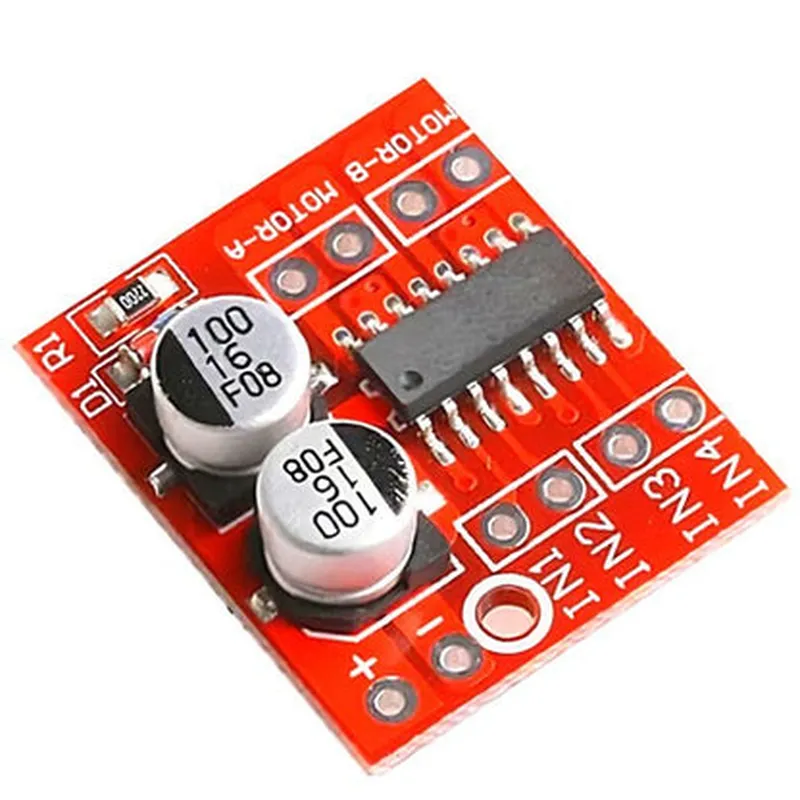

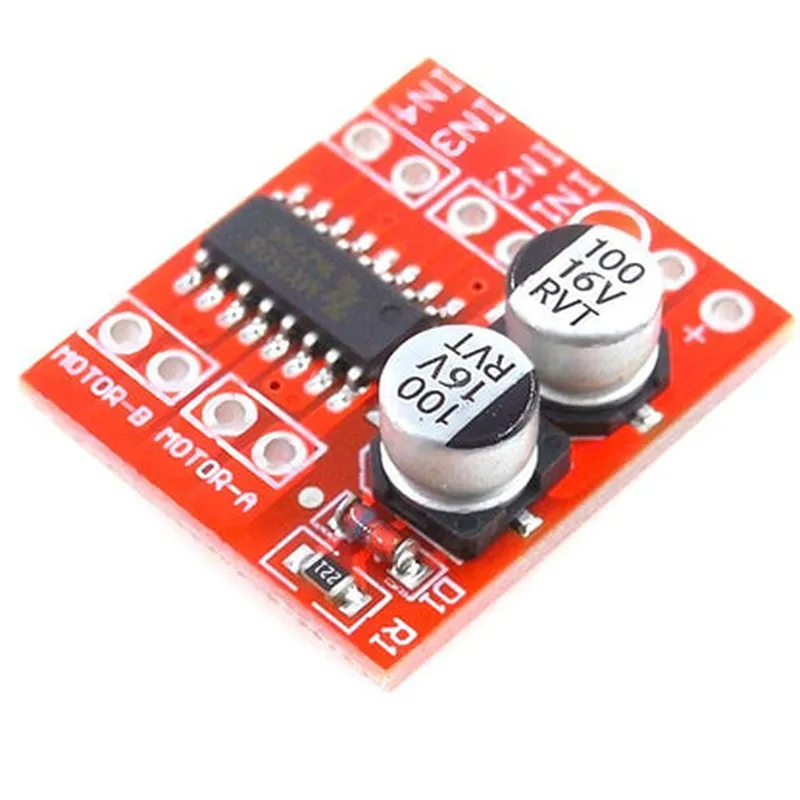

DC Motor Drive Module 2 Channel Reversing PWM Speed Dual H Bridge Stepper Controller
DC Motor Drive Module 2 Channel Reversing PWM Speed Dual H Bridge Stepper Controller
DC Motor Drive Module 2 Channel Reversing PWM Speed Dual H Bridge Stepper Controller
DC Motor Drive Module 2 Channel Reversing PWM Speed Dual H Bridge Stepper Controller

DC Motor Drive Module 2 Channel Reversing PWM Speed Dual H Bridge Stepper Controller

This product is not available in your location yet

Description: 1. DC Motor Drive Module is a two-channel, reversing PWM speed controller designed for use with DC motors and stepper motors. It features a dual H bridge configuration that enables both forward and reverse motor direction control. 2. Features: This module comes equipped with PWM (Pulse Width Modulation) technology to enable variable speed control, from 0% to 100% for DC motors. For stepper motors, it supports full-step, half-step, and micro-step motor drive modes. 3. Channel Control: Each channel can be controlled independently through its own set of input pins (4 total), allowing for independent control over the speed and direction of each connected motor. 4. Protection Mechanisms: The module includes protection functions like overcurrent, overvoltage, and overheating safeguards to prevent damage to the motors or other components during operation. 5. Efficient Heat Dissipation: Properly designed heat sinks ensure efficient heat dissipation while maintaining a compact design, maki

Specification Details
Type Dual H Bridge Stepper Controller
Channel Count 2 (Independent Channels)
Motor Type Support DC Motors Bipolar Stepper Motors
PWM Frequency Up to 32 kHz
Speed Control PWM (Pulse Width Modulation) Reversing
Voltage Range 5V - 24V
Current Range 1A - 4A per Channel
Interface TTL/CMOS I2C UART
Dimension (mm) LxWxH: 40x30x12
Weight (g) Approximately 80g
