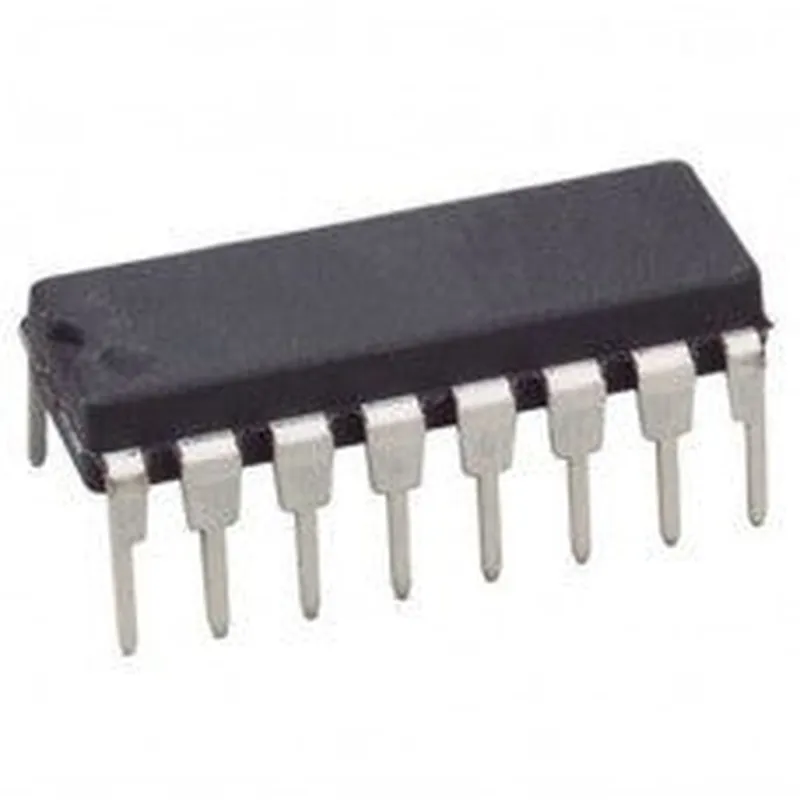

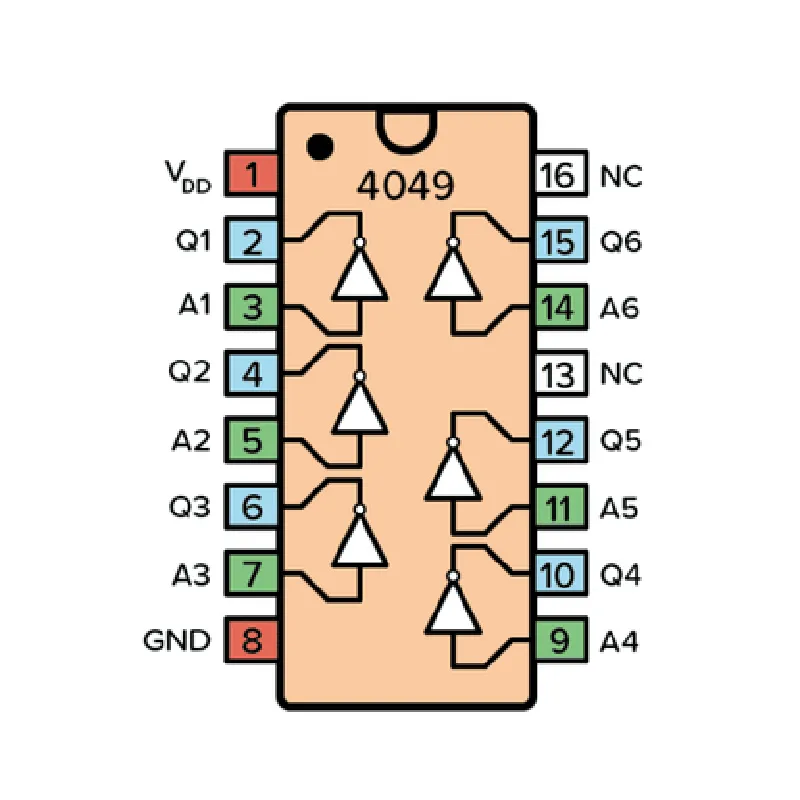

Description: 1. The CD4049 is a hex inverting buffer/converter integrated circuit (IC) that consists of six independent NAND gates followed by inverters, providing buffer functionality. 2. Each NAND gate input accepts both positive and negative logic levels, making the IC versatile for various applications. 3. The CD4049 offers individual open-drain outputs, which can sink up to 5mA per output, facilitating multiple interconnections within a system. 4. This IC allows for level translation between high and low logic levels (TTL and CMOS), making it an effective solution for interfacing different digital systems. 5. The CD4049 features a compact 14-pin DIP package, which is suitable for various IoT projects and prototyping boards. 6. Its low power consumption (approximately 2mW maximum) makes it an attractive option for battery-powered IoT applications, contributing to prolonged operation times. 7. The IC's wide temperature range (-40°C to +85°C) ensures its compatibility with various environm
| Specification | Details |
|---|---|
| Manufacturer | Texas Instruments (TI) |
| Package Type | 14-pin DIP (Dual In-Line Package) |
| Number of Channels | 6 |
| Logic Family | CMOS |
| Operating Frequency | DC to 20 MHz |
| Input High Voltage | 0.8 x VDD |
| Input Low Voltage | 0.2 x VDD |
| Output High Voltage | VDD - 1.6V |
| Output Low Voltage | 0.4 x VDD |
| Propagation Delay | 25 ns |
| Power Dissipation | 10 mW (max) |
| Supply Voltage | ±5V ±15V (with voltage translator) |
| Temperature Range | -55°C to +125°C |
