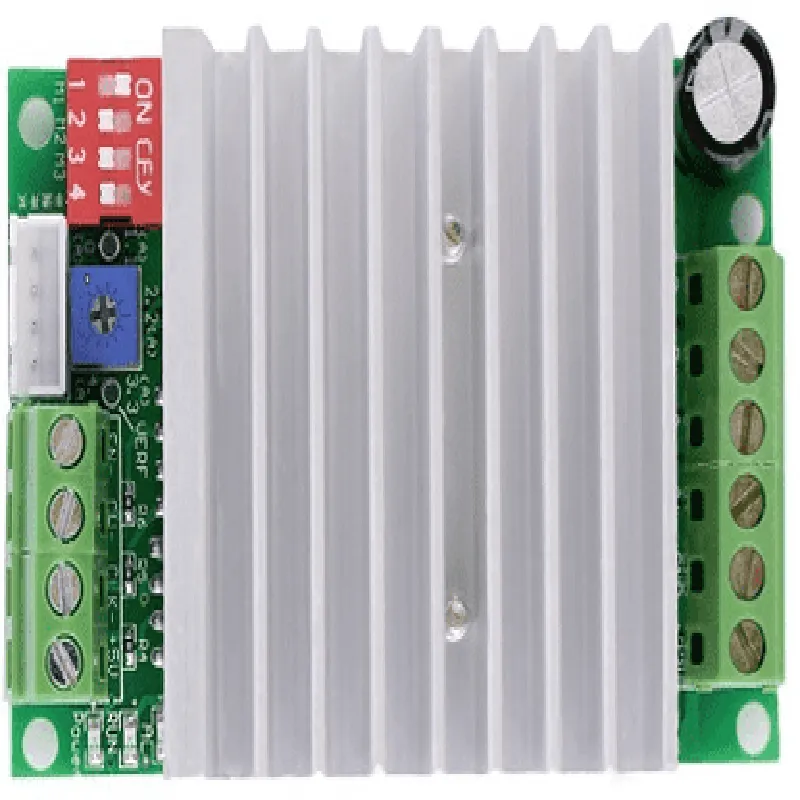

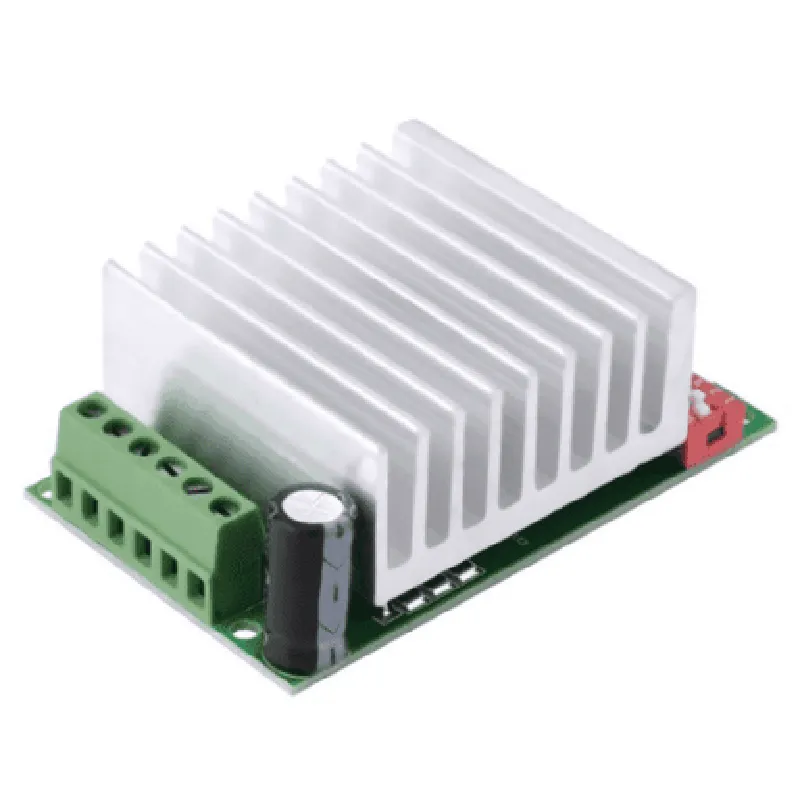

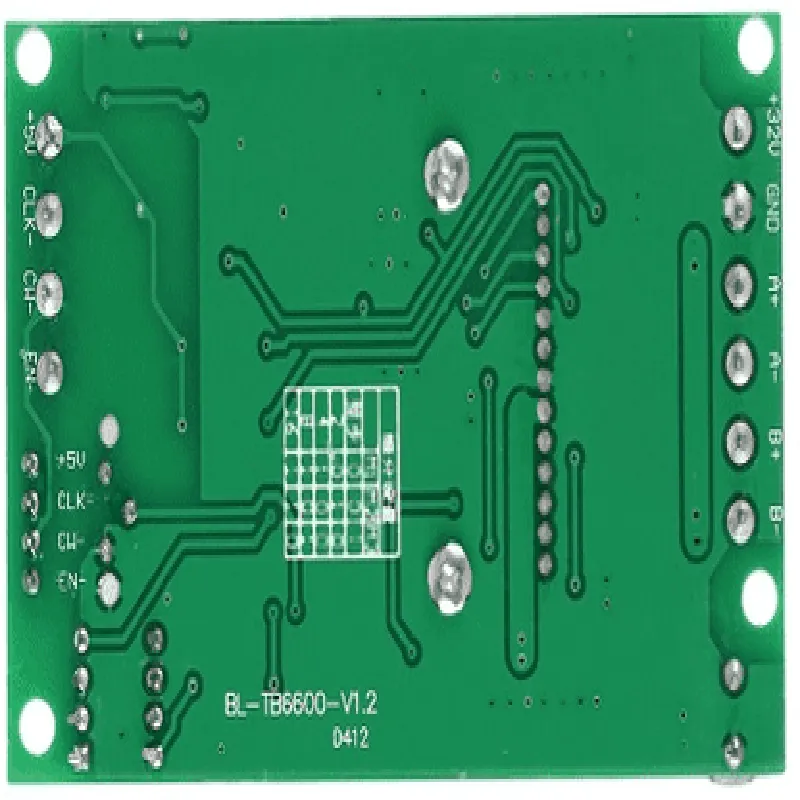

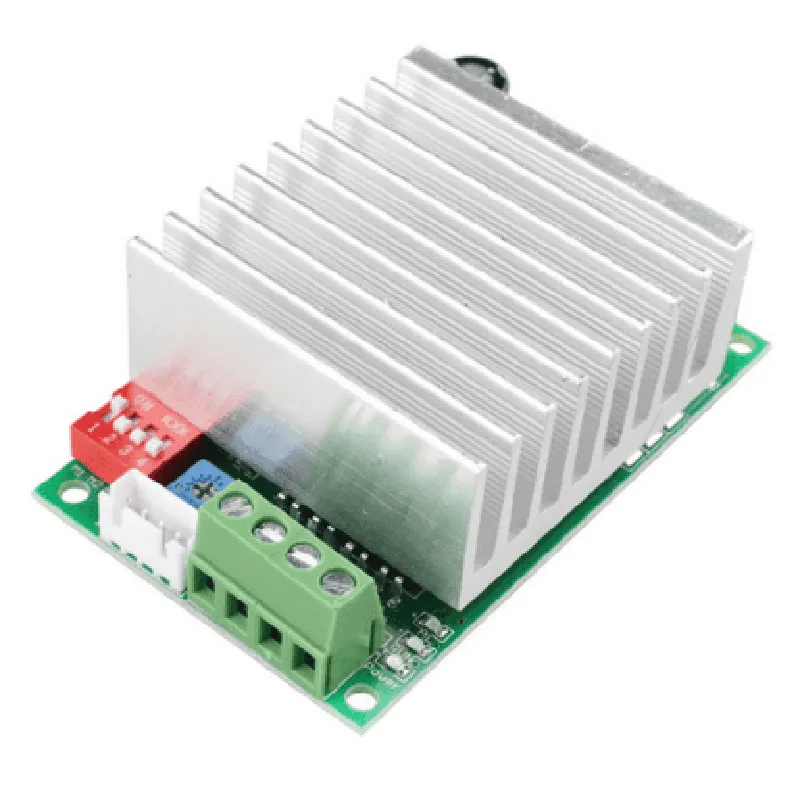

Description: 1. Design: TB6600 is a compact stepper motor driver controller, supporting voltages between 8V and 50V with a maximum continuous current of 4.5A. It is suitable for various IoT applications where precise motion control is required. 2. Flexible Interfacing: Featuring six fully independent channels, the TB6600 can be interfaced with microcontrollers or single-board computers like Arduino and Raspberry Pi using standard SPIs and PWM signals. 3. Stepper Motor Control: This controller supports full-step, half-step, and microstepping motor control modes. It enables high precision positioning for applications like 3D printers, CNC machines, robotics, and machine automation. 4. Protection Features: The TB6600 comes with built-in protection mechanisms such as overcurrent protection, short circuit protection, and thermal shutdown to ensure safe operation of the motor drivers. 5. Efficiency and Low Heat Generation: This controller uses advanced technologies for high efficiency in energy conv
| Specification | Details |
|---|---|
| Input Voltage | 8-50V (single-phase DC) |
| Output Current | Up to 4.5A per phase |
| Stepper Motor Type | Bipolar and unipolar stepper motors |
| Step Angle | 1/64 of a step (256 steps per revolution) |
| Microstep Resolution | 16-bit up to 128 microsteps |
| Pulse Frequency | Up to 256 kHz |
| Overheat Protection | Thermal shutdown and thermal monitoring |
| Dimensions | 62mm x 55mm x 25.5mm (L x W x H) |
| Weight | Approximately 150g |
