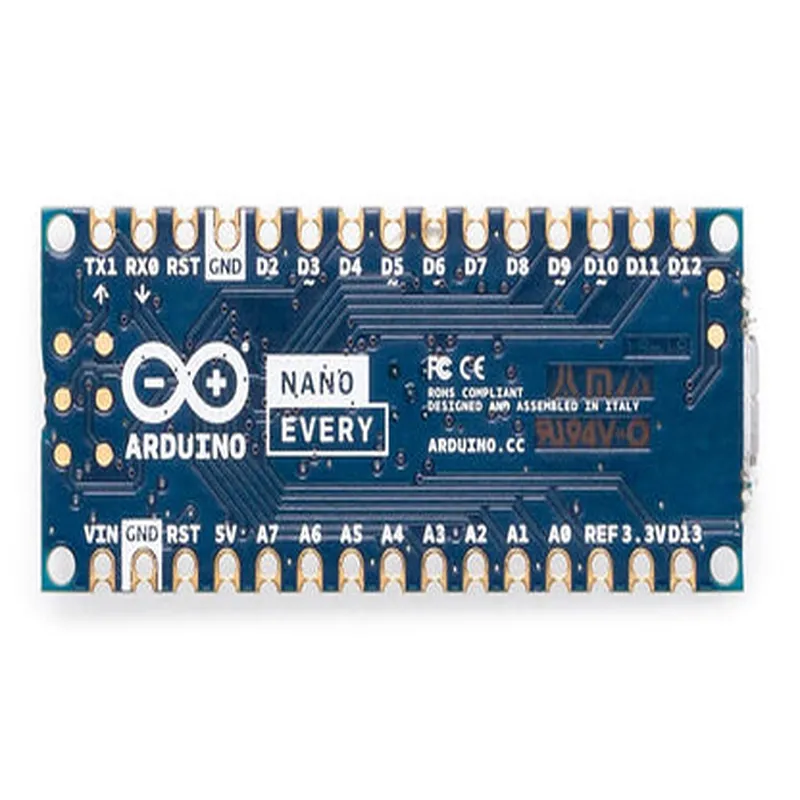

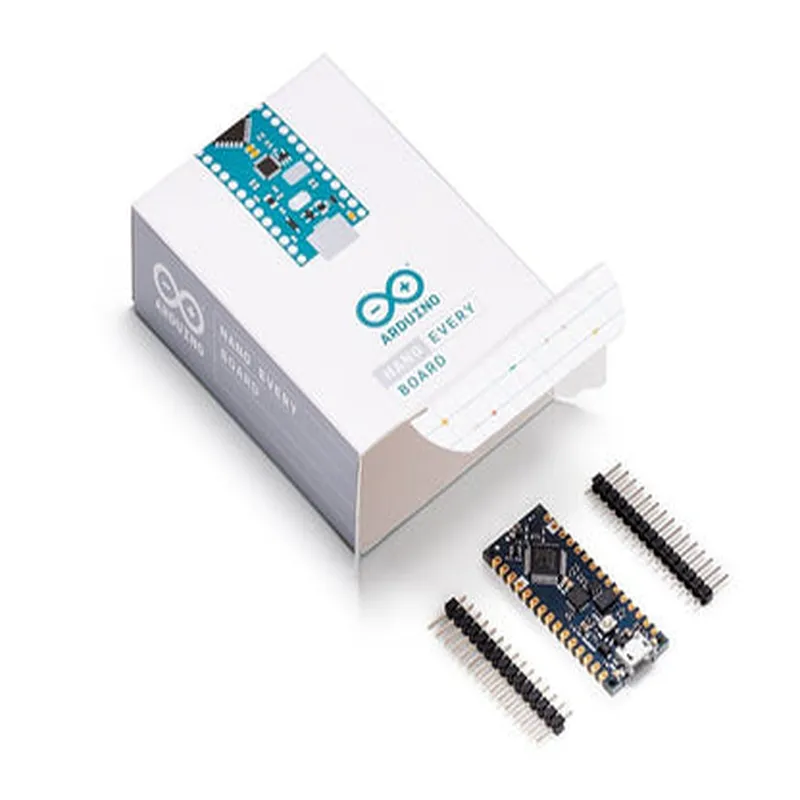

Arduino Nano Every without Headers

This product is not available in your location yet

Description: 1. Microcontroller: Arduino Nano Every is a compact microcontroller board based on the ATmega4809A chip, which can be programmed using the Arduino Integrated Development Environment (IDE). 2. Size and Power: This board measures only 17.5mm x 43.6mm, making it one of the smallest Arduino boards. It operates with a minimum voltage of 1.8V and maximum voltage of 5.5V, and can be powered via an external power source or USB connection. 3. Connections: Arduino Nano Every comes without headers, allowing users to solder on their preferred pin configuration. This customizability makes it suitable for various projects where space and specific pin arrangements are crucial. 4. Input/Output Pins: The board features 16 digital input/output (I/O) pins that can be configured as INPUT, OUTPUT, INPUT_PULLUP or OUTPUT_OPEN. The board also supports PWM on all pins except pin 7 and 8 which are used for serial communication. 5. Memory: Arduino Nano Every has a flash memory of 32KB, SRAM of 2.5KB, and E

View Technical Documentation

Specification	Details
Microcontroller	ATMega4809 8-bit RISC CPU 20 MHz
Flash Memory	96 KB (64 KB used by bootloader)
SRAM	6 KB
EEPROM	1 KB
I/O Pins	2 x Serial UART 2 x SPI 8 x PWM
Analog Inputs	10 (12-bit resolution)
Analog Outputs	6 (10-bit resolution)
Digital I/Os	20 (with 15 multiplexed to analog pins)
Operating Voltage	2.3V to 5.5V
Current Draw	Typical 150 mA at 5 V 10 μA sleep
Dimensions	45 x 18 mm (L x W) 1.8 mm (H)
Weight	7g
