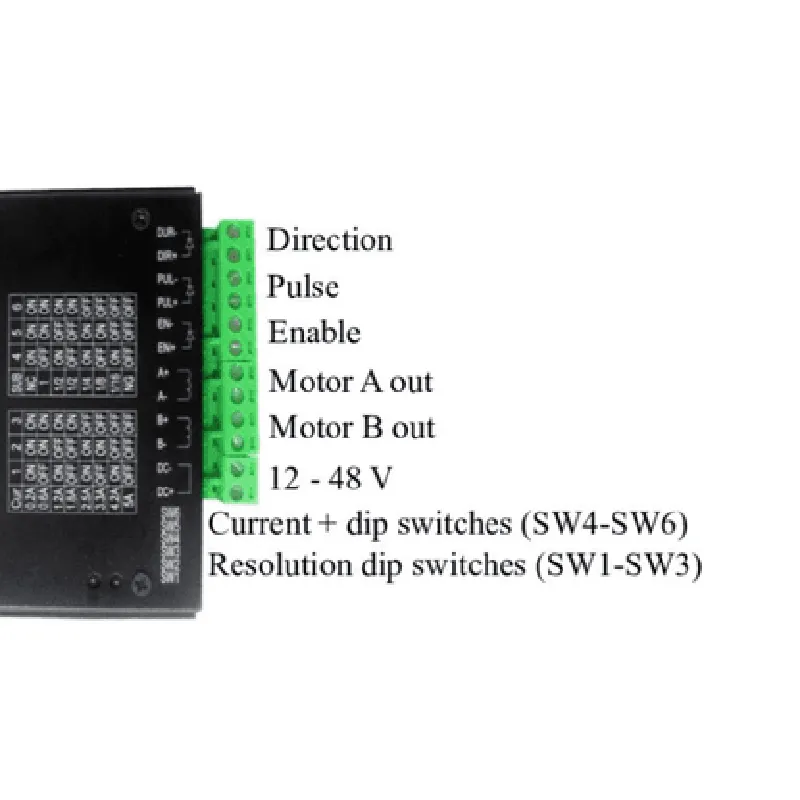

YS-DIV268N-5A Hybrid Stepper Motor Driver 5A | Single Axis TB6600 0.2-5A Two Phase Hybrid Stepper Mo
YS-DIV268N-5A Hybrid Stepper Motor Driver 5A | Single Axis TB6600 0.2-5A Two Phase Hybrid Stepper Mo
YS-DIV268N-5A Hybrid Stepper Motor Driver 5A | Single Axis TB6600 0.2-5A Two Phase Hybrid Stepper Mo

YS-DIV268N-5A Hybrid Stepper Motor Driver 5A | Single Axis TB6600 0.2-5A Two Phase Hybrid Stepper Mo

This product is not available in your location yet

Description: 1. Hybrid Stepper Motor Driver: The YS-DIV268N-5A is a single-axis hybrid stepper motor driver that can deliver continuous current up to 5A, making it suitable for various applications requiring precise and powerful motion control. 2. Two Phase Operation: This driver supports two-phase hybrid stepper motor operation, ensuring smooth and efficient movement with reduced torque ripple and better accuracy compared to traditional single-phase drivers. 3. TB6600 Controller: The driver integrates the TB6600 stepper motor controller chip, offering advanced features like microstepping (full-step, half-step, and 1/4th step), acceleration and deceleration, and adjustable current limiting for fine tuning the motor performance. 4. Easy Interfacing: The driver can be easily interfaced with various microcontrollers or single-board computers using common protocols like UART, SPI, or I²C, enabling users to create custom control systems and applications. 5. Protection Mechanisms: The motor driver i

Specification Details
Model Number YS-DIV268N-5A
Type 2-Phase Hybrid Stepper Motor Driver
Current Rating Up to 5A per phase
Input Voltage 12V - 48V DC (with protection)
Step Angle 1.8° (default) can be adjusted
Resolution 200-512 steps/rev
Pulse Input TTL compatible active low
Microstep Resolution Up to 256 microsteps
Output Connections 4-wire + 5V logic (4A)
Power Supply Universal power supply input
Operating Temperature -20°C to +60°C
Storage Temperature -40°C to +80°C
Dimensions 102 x 55 x 22.5mm (L x W x H)
Weight Approx. 150g
Certifications CE RoHS compliant
