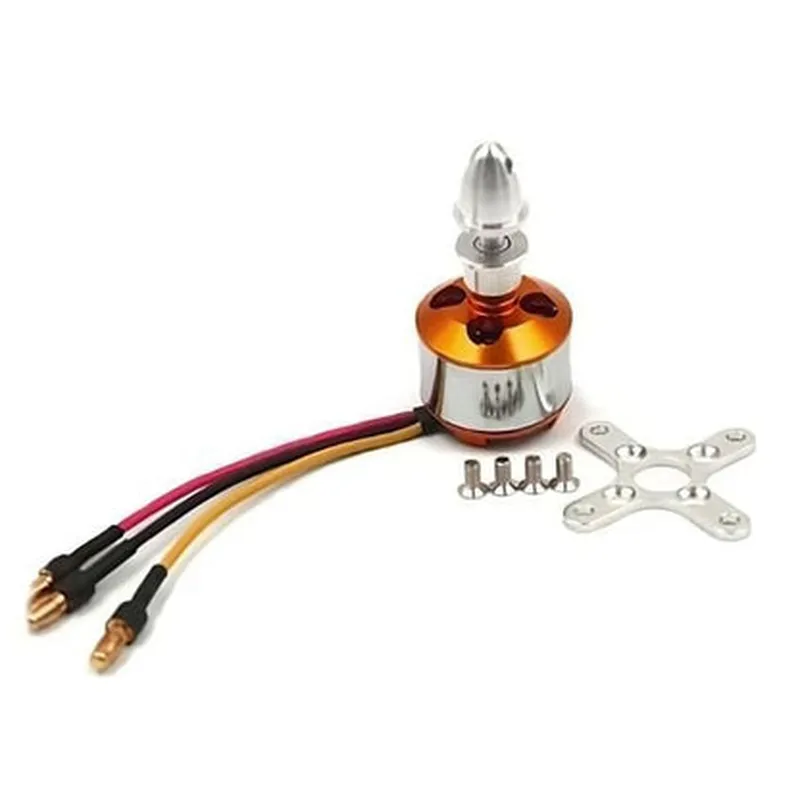

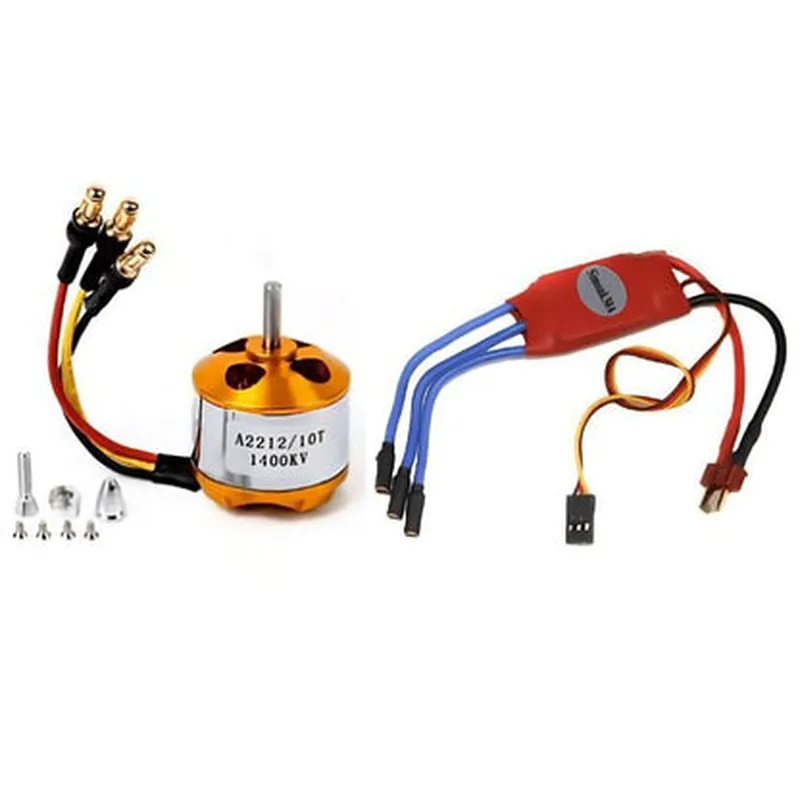

Description: 1. Motor: A2212 is a high-performance 1400KV Brushless DC (BLDC) motor designed specifically for RC drones. It offers superior power-to-weight ratio, enabling faster rotor speeds and increased lift force. 2. Electronic Speed Controller (ESC): The accompanying Simonk 30A ESC is optimized for RC drone applications. Its high current capacity ensures efficient motor control during heavy load conditions and quick acceleration. 3. Powerful: Combined, this motor-ESC setup delivers powerful performance, capable of driving the propellers at high speeds to generate sufficient lift for large RC drones or heavy payloads. 4. Efficient: The A2212 BLDC Motor's low power consumption and high efficiency help extend battery life in your RC Drone, allowing for longer flight times. 5. Lightweight: The motor is lightweight, contributing to the overall weight reduction of your RC drone, making it more maneuverable and responsive in the air. 6. Quiet Operation: BLDC motors like the A2212 operate much q
| Specification | Details |
|---|---|
| Motor Type | Brushless DC (BLDC) |
| Kv Rating | 1400kv |
| Stator Diameter | 22mm |
| Stator Length | 12mm |
| Shaft Diameter | 3.2mm |
| No. of Poles | 12 |
| Max Current | 30A (according to ESC spec) |
| Max RPM | 60000 RPM |
| Voltage Rating | 5-6S (22-28V) |
| ESC Type | Simonk 30A |
| ESC Features | Dual Brushless 3-4 PWM Inputs |
| ESC Mounting | Solder pads for mounting |
| ESC Dimensions | 47mm x 19mm x 10mm |
